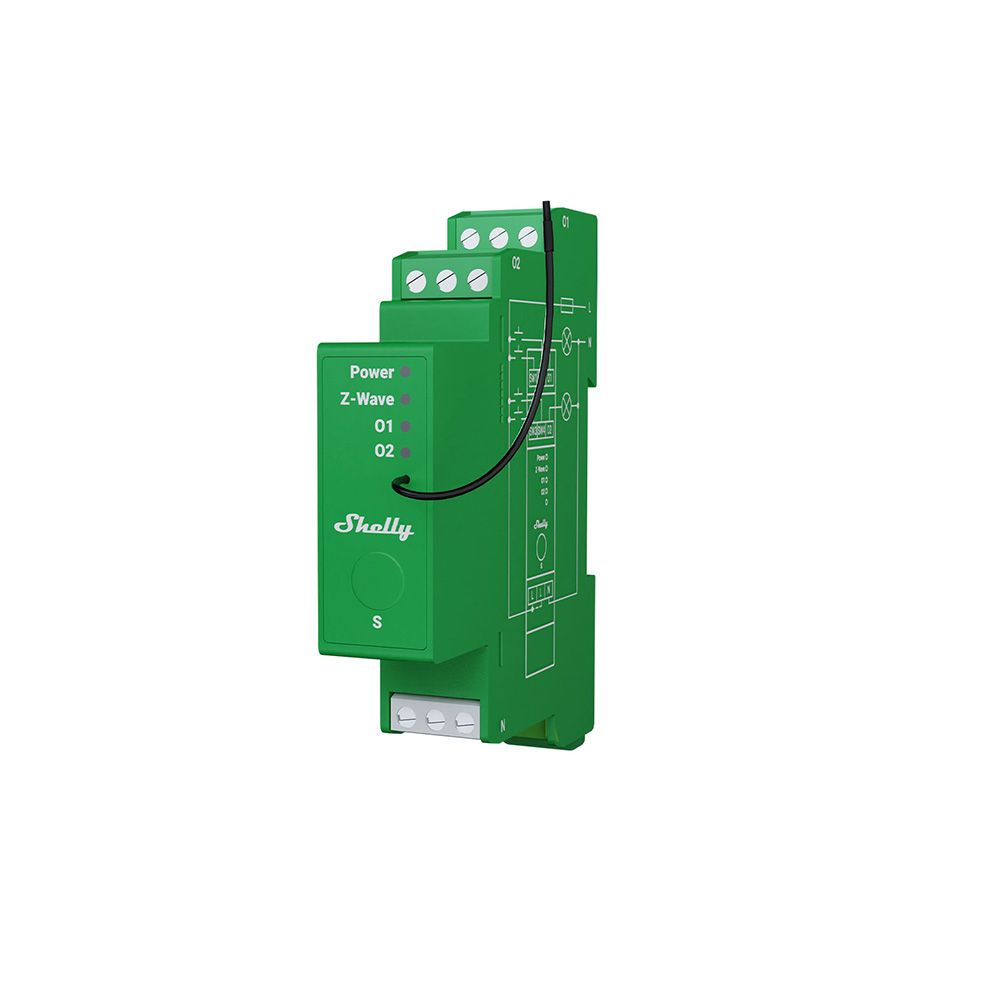

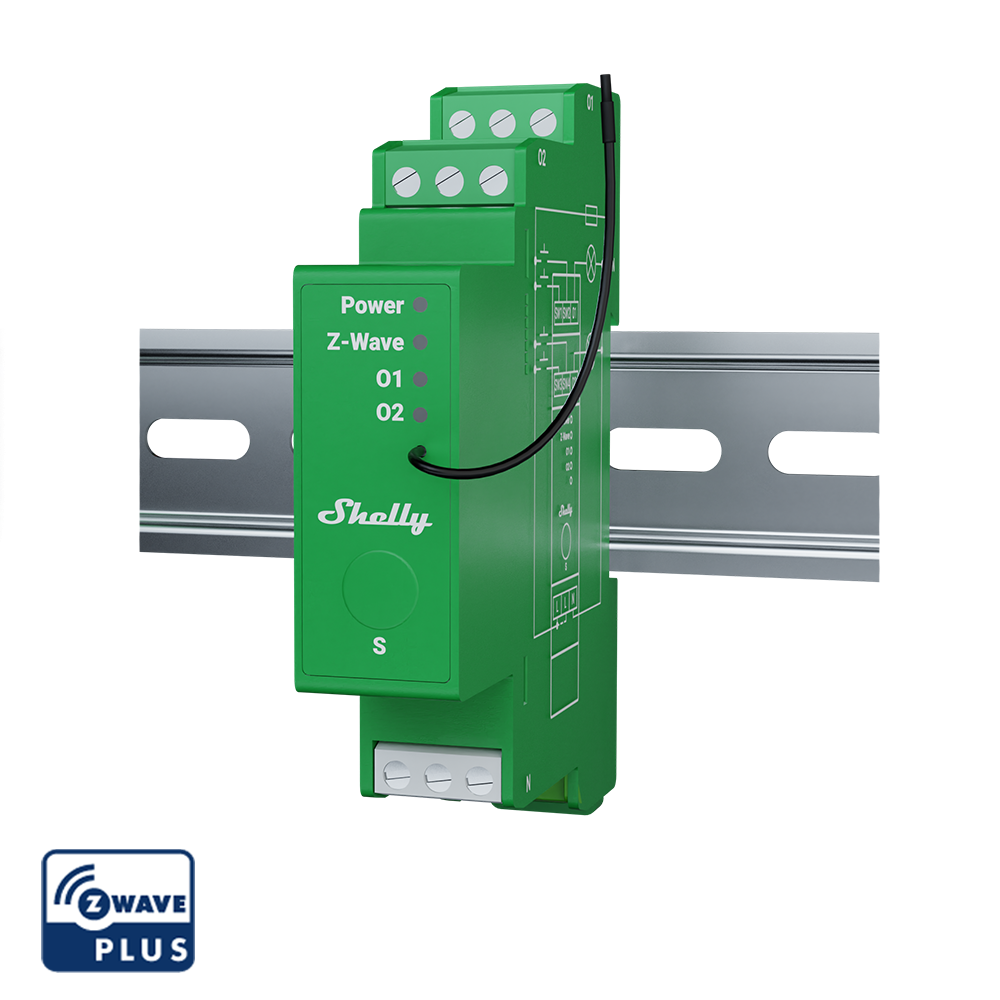

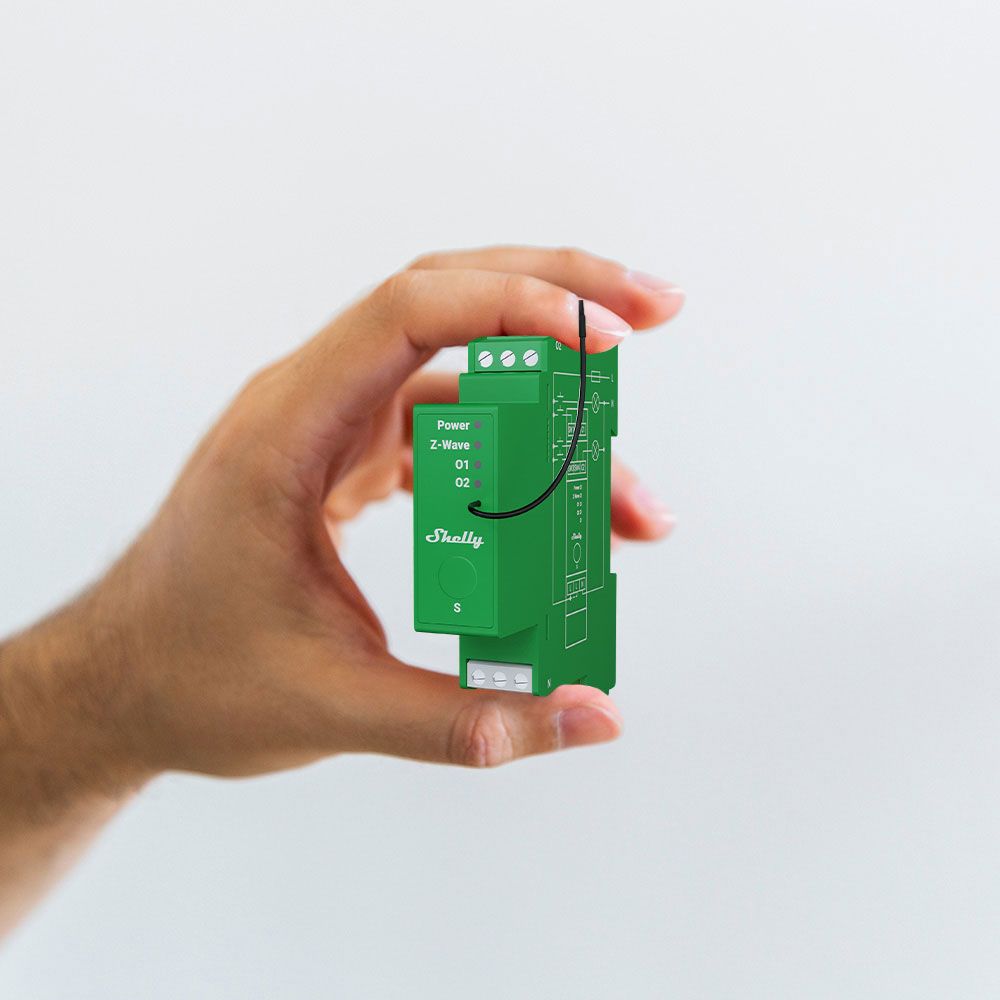

The Shelly Wave Pro Dimmer 2PM is a DIN-rail-mounted dimmer. The module supports active energy measurement and is designed to dim 2 light sources. The Wave Pro Dimmer 2PM can be operated with 2 switches. The smart dimmer works with Z-Wave, using a Z-Wave 800 chipset, and is compatible with Homey, Home Center 3, and other platforms such as Home Assistant and SmartThings. You can easily install the dimmer in your fuse box on a DIN rail, allowing you to dim 2 light sources with a maximum of 200 watts per channel. Note! The dimmer does not yet have full support on the mentioned platforms. Check the current compatibility via the manual link below.
Based on our own tests on the HC3, it seems possible to add the unit after several attempts, resulting in a usable endpoint for both channels. Note that the unit needs to be added in Singlechannel mode (see associations) and corrected. Supported Light Sources Incandescent bulbs Dimmable LED and CFL Dimmable electronic transformers
Features
- 110-240VAC
- Z-Wave 800 chipset
- Maximum 200 watts per channel (2 channels)
- S2 security
- Trailing edge
- Power measurement
- Overload protection
- Overheat protection
- Surge protection
- Fuse box installation, DIN rail
- 19mm width
Manual
