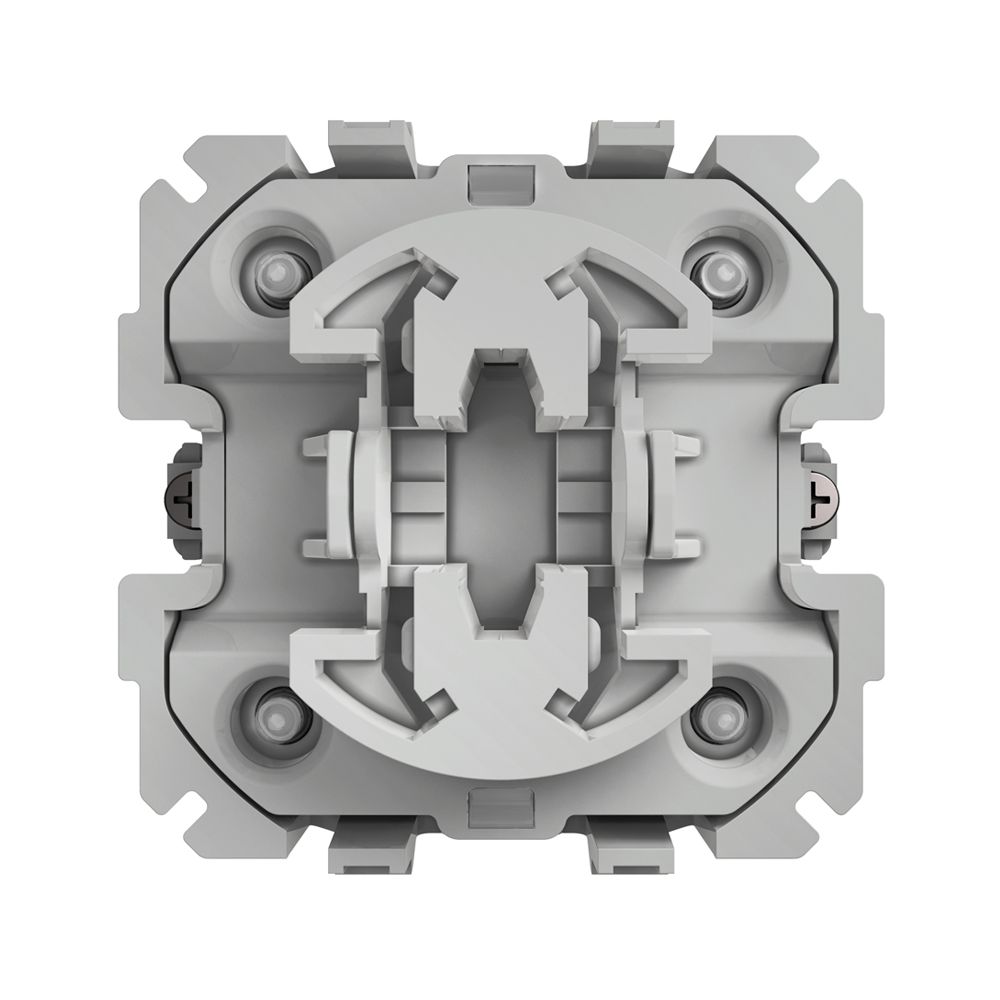

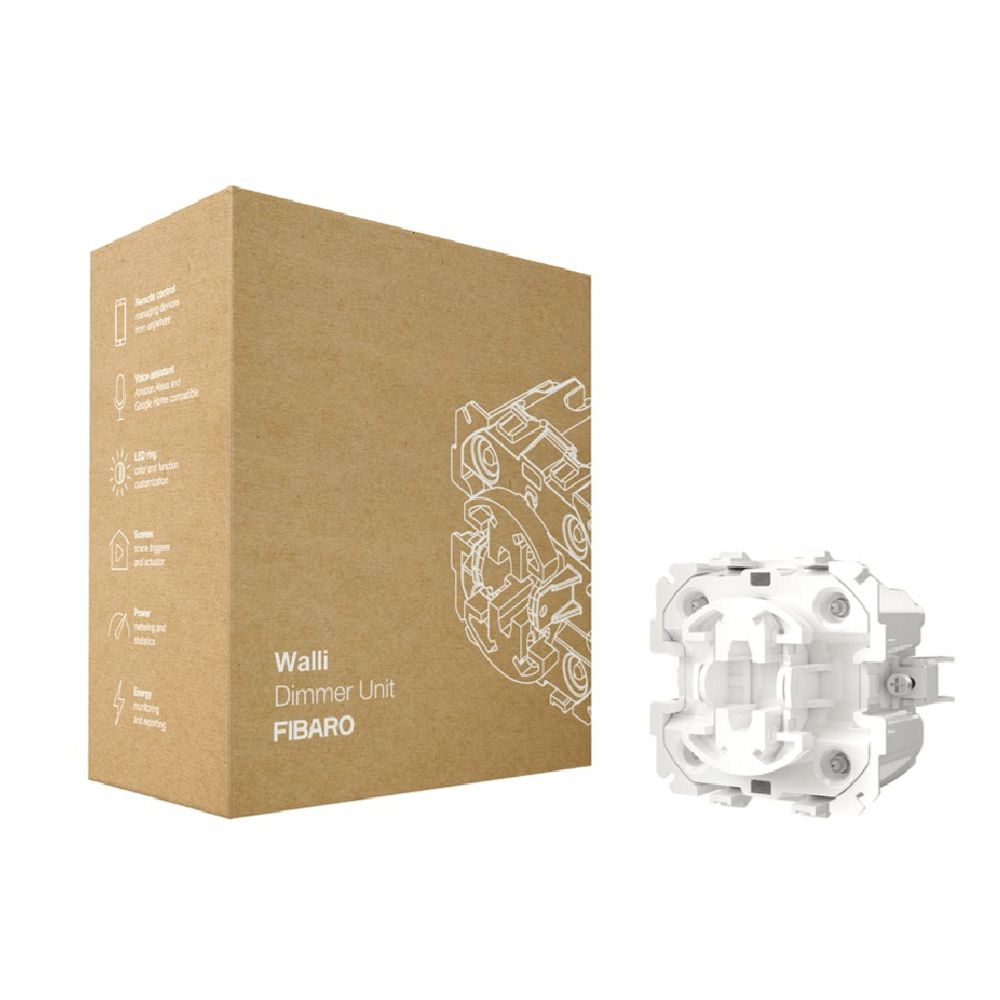

FIBARO Walli Dimmer Unit

€64.48

SKU: FG-WDEU111-AS-8001 Categories: , , , , Brand:

An intelligent integrated dimmer for controlling LED, halogen lighting and supports different dimming techniques. The device is equipped with the automatic calibration function, active energy and current measurement and other functions known from the FIBARO module. Designed for quick installation in a flush-mounting box from 40 mm (depth). The Walli switch can also be used for manual activation of scenes.Units are for the use of Walli in multiple cover frames or with other brands of switching material. When using Walli frames, the mounting frame, the frame and the button with light guide must be ordered. A mounting frame is always required when using other brand switching material, the button adapter is also required with GIRA and Legrand cover materials.Features

  • Control the lighting remotely, via the switch and voice assistants
  • The colour of the LED ring can be adjusted to the wishes of the user
  • Actively measures current and energy consumption
  • Notification in case of malfunction
Actors

Dimmer

Battery included

Yes

Communicatie & Protocol

Z-Wave

Compatibility switches (brand / series)

FIBARO Walli , Gira System 55 , Legrand Céliane , Schneider Odace

Dimensions Product

86 x 86 x 51 mm

In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU

Installation method

Flush mount

Operating humidity

10-95% relative humidity without condensation

Operating temperature

0-35 °C

Power source

220-240V AC, 50Hz

Protocol

Z-Wave , Z-Wave (500 series chip)

Range

outdoor up to 50m indoors up to 40m (Depending on terrain and building construction)

Transmit power

+6 dBm
