Shelly Wave Pro 2PM LR

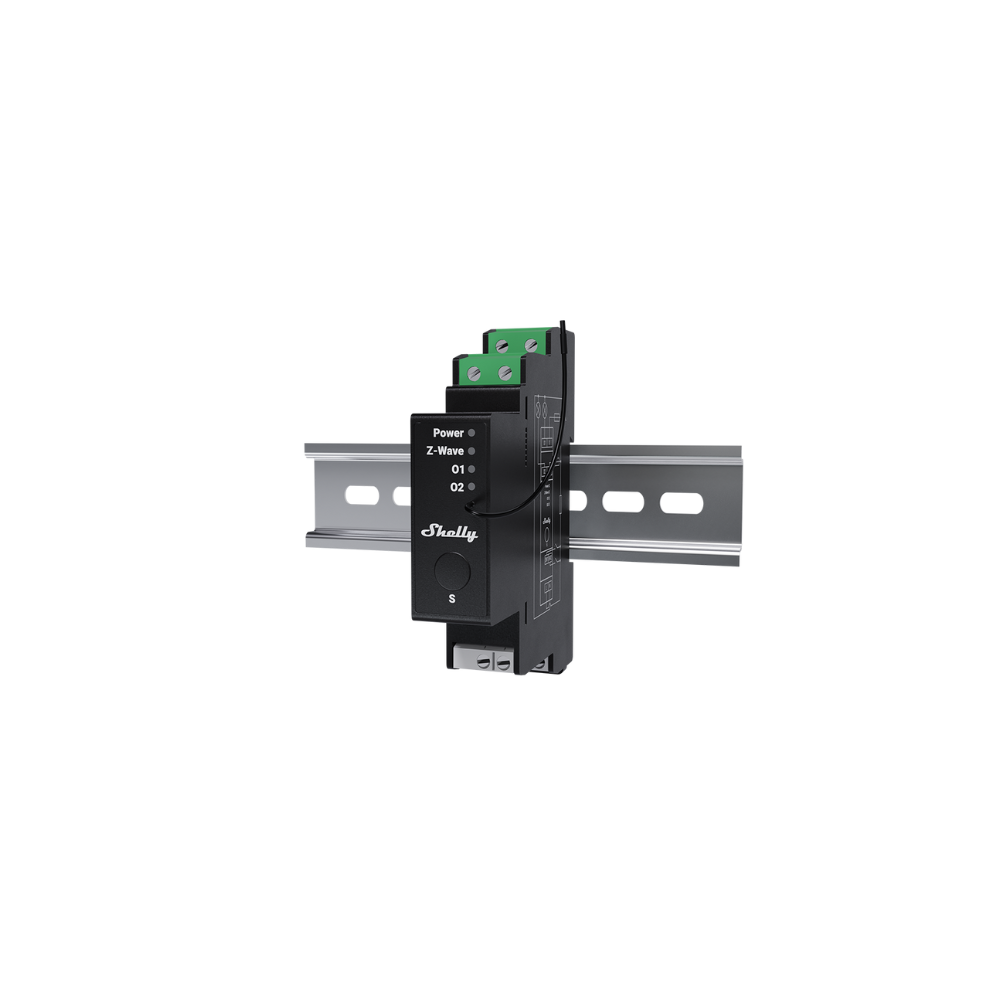

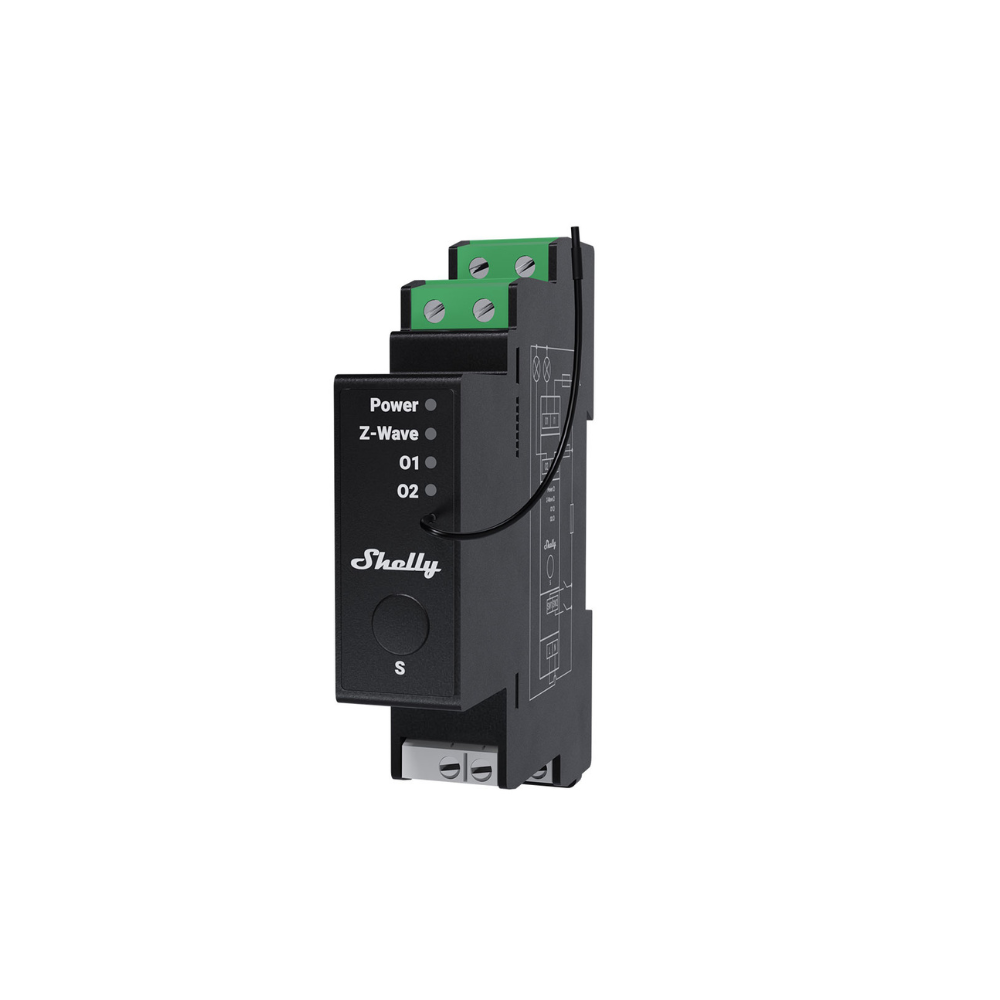

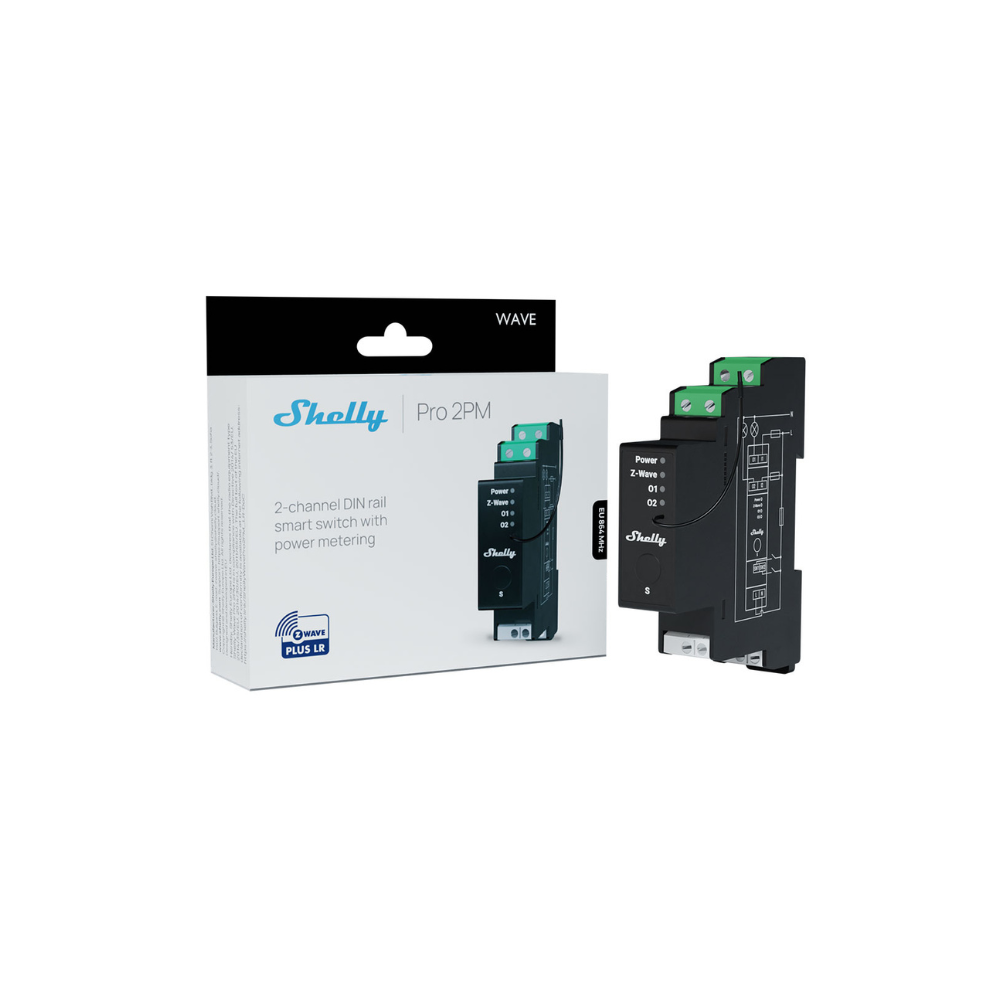

The Shelly Wave Pro 2PM LR is a professional DIN rail module with two independent relays for switching and measuring power consumption per channel. The module supports a load up to 16 A per channel (total 25 A) and allows accurate power measurement for both circuits separately or combined. Thanks to Z-Wave Long Range, the connection remains stable, even over distances up to 1 km (in open field).
The Shelly Wave Pro 2PM LR is equipped with the latest Z-Wave 800 series chipset, making it energy efficient and future-proof. Thanks to SmartStart inclusion and S2 Authenticated security, installation is easy and safe. Ideal for professional applications that focus on reliability, monitoring and integration.
adjourn

• Two independent relays (2 x 16 A, total 25 A)
• DIN rail assembly for distribution cabinets
• Supports Z-Wave Long Range up to 1 km (line-of-sight)
• Double frequency option: 864 MHz (Z-Wave LR) or 868.4 MHz (Z-Wave Plus)
• Power measurement per channel and combined
• Newest Z-Wave 800 Series Technology
• Easy installation with SmartStart
• Secure communication via S2 Authenticated (AES-128)
• Over-the-air firmware updates
• Very low energy consumption (< 0.3 W)
