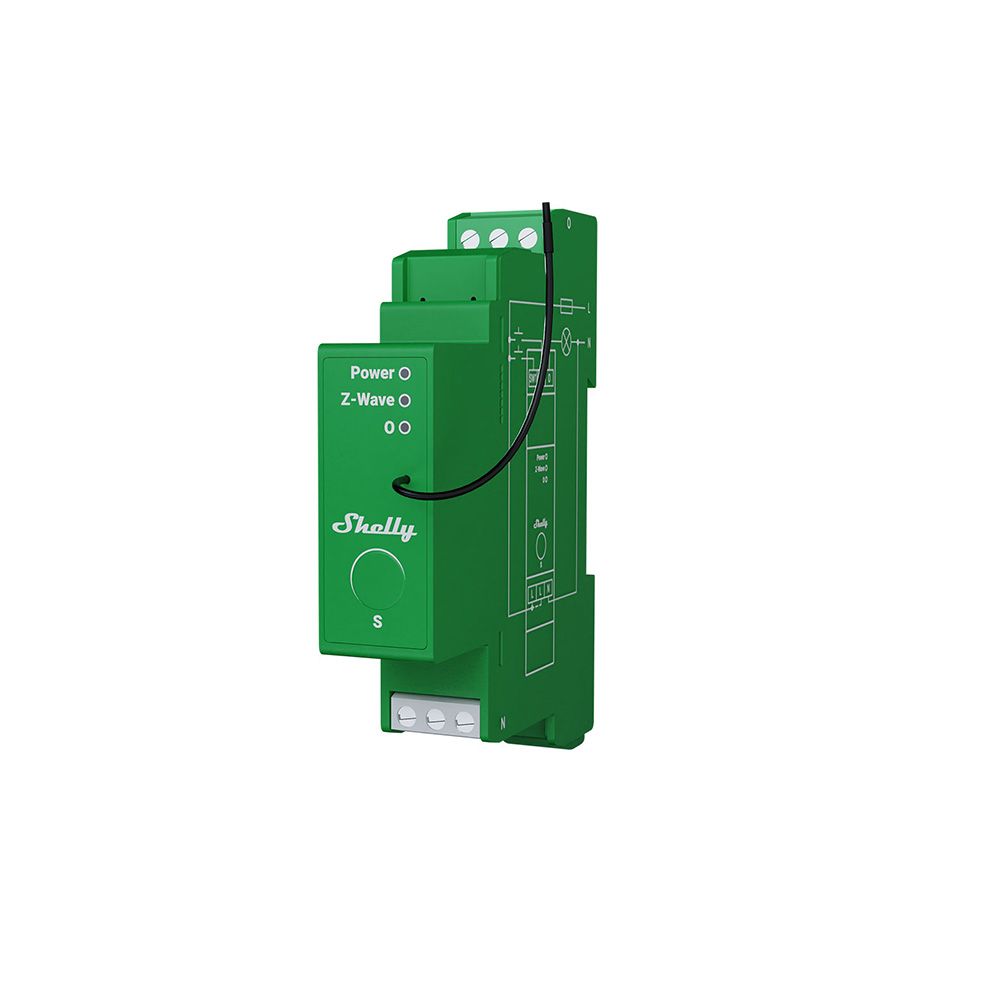

The Shelly Wave Pro Dimmer 1PM is a DIN-rail-mounted dimmer. The module supports active energy measurement and is designed to dim a single light source. The Wave Pro Dimmer 1PM can be operated with 2 switches. The smart dimmer works with Z-Wave, using a Z-Wave 800 chipset, and is compatible with Homey, Home Center 3, and other platforms such as Home Assistant and SmartThings. You can easily install the dimmer in your fuse box on a DIN rail, allowing you to dim one light source with a maximum of 200 watts. Note! The dimmer does not yet have full support on the mentioned platforms. Check the current compatibility via the manual link below.
Based on our own tests on the HC3, it seems possible to add the unit after several attempts, resulting in a usable endpoint. Note that the unit needs to be added in Singlechannel mode (see associations) and corrected. Supported Light Sources Incandescent bulbs Dimmable LED and CFL Dimmable electronic transformers
Features
- 110-240VAC
- Z-Wave 800 chipset
- S2 security
- Maximum 200 watts (1 channel)
- 2 switch contacts
- Trailing edge
- Power measurement
- Overload protection
- Overheat protection
- Surge protection

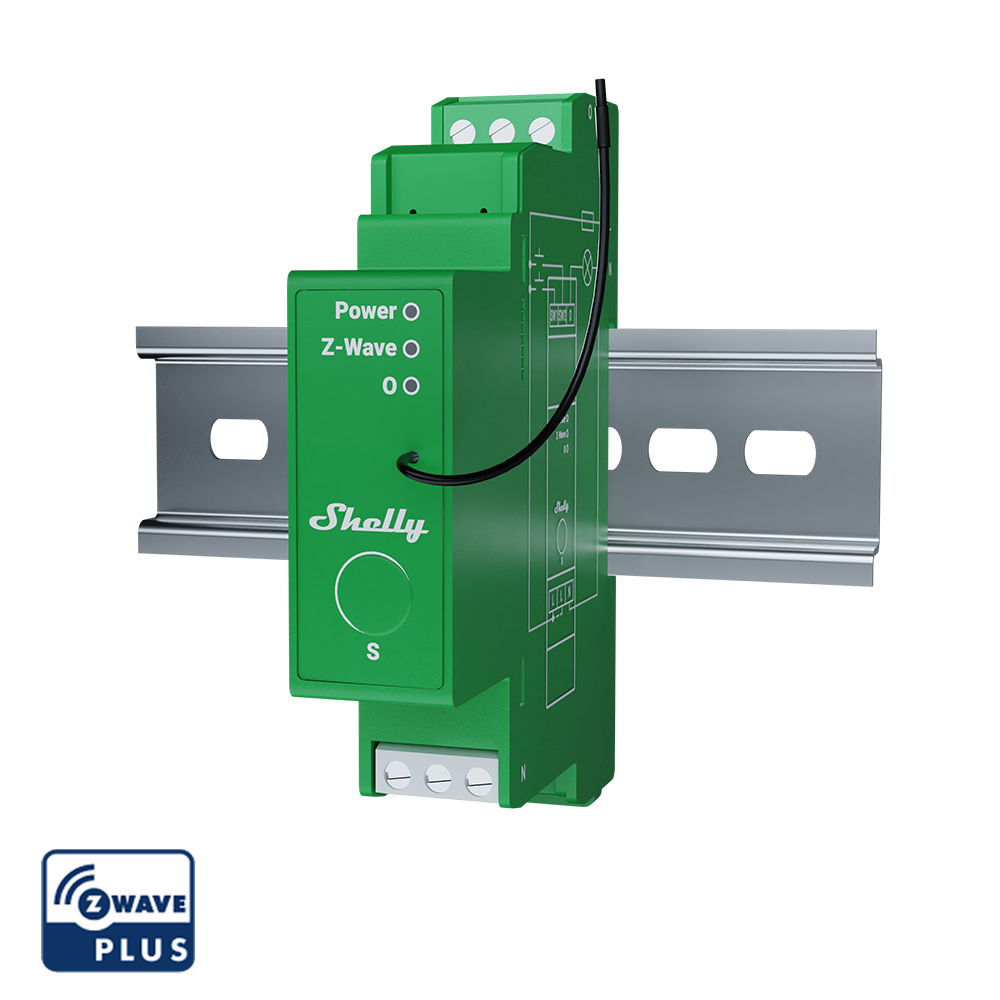

- Fuse box installation, DIN rail
- 19mm width
Manual
