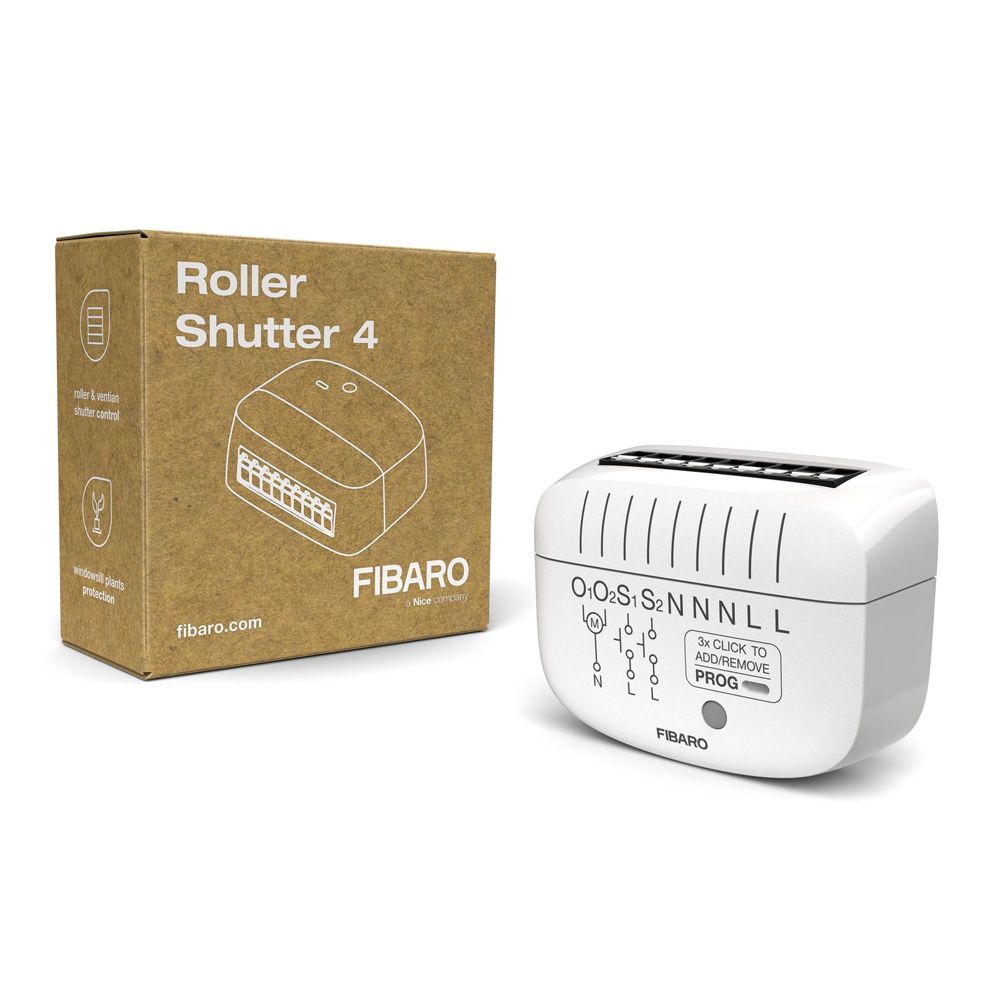

FIBARO Roller Shutter 4

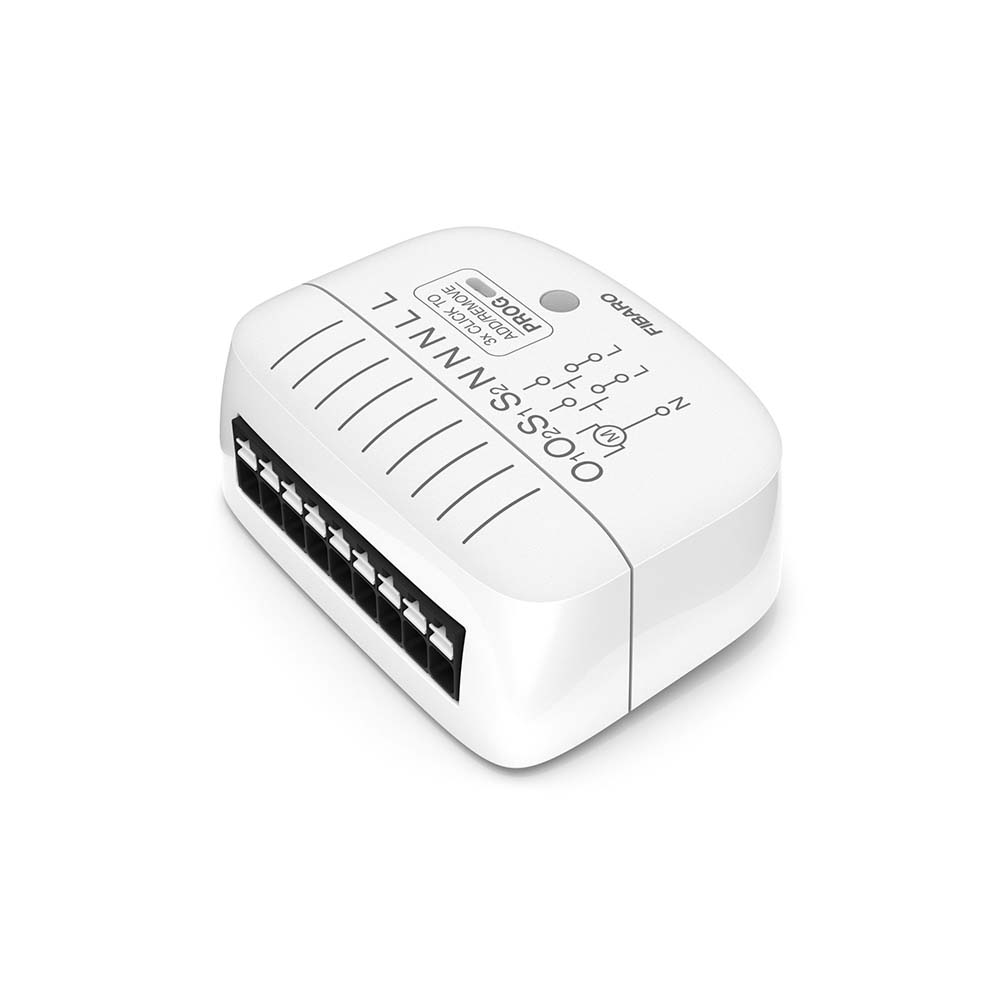

FIBARO Roller Shutter 4 - Image 2

FIBARO Roller Shutter 4

€85.93

Control electric motors for roller shutters, blinds, garages and gates. Controlled by precise positioning and support for energy measurement.

SKU: FGR-224 ZW8 Category: Brand:

The FIBARO Roller Shutter 4 has been developed for the operation and accurate positioning of AC-controlled motors, including roller shutters, blinds, awnings , screens and ports. The module supports motors without a built-in driver but with mechanical and electronic final adjustment.

The difference with the FIBARO Roller Shutter 3 is that it is no longer suitable for motors with a built-in driver.

FIBARO has developed a new adding procedure for integration with the Home Center 3 so that you can immediately select the correct settings.

Features

  • Can be used with AC motors with electronic or mechanical final adjustment
  • Measure active energy consumption
  • Works with different types of switches, including pulse switches and toggle switches
  • Support for motors with opening, closing and tilting
  • Cannot be used with motors with a built-in driver
Actors

Roller shutter and curtain control
Battery included

Yes
Built-in box

Ø = 50mm, depth ≥ 60mm
Communicatie & Protocol

Z-Wave
In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU
Installation method

Flush mount
Maximum load capacity

4.2A – resistive voltage 1.7A – inductive voltage
Operating humidity

10-95% relative humidity without condensation
Operating temperature

0–35°C
Power source

110-240V AC, 50/60Hz
Protocol

Z-Wave 800
Radio frequency

868.0–868.6MHz 869.7–870.0MHz
Range

outdoor up to 50m indoors up to 40m (Depending on terrain and building construction)
Supported load types

Resistive Single phase AC motor
Transmit power

+6 dBm
