FIBARO Roller Shutter 3
FIBARO Roller Shutter 3 - Image 2

FIBARO Roller Shutter 3

€81.84

Control electric motors for roller shutters, blinds, garages and gates. Controlled by precise positioning and support for energy measurement.

SKU: FGR-223 ZW5 Category: Brand:

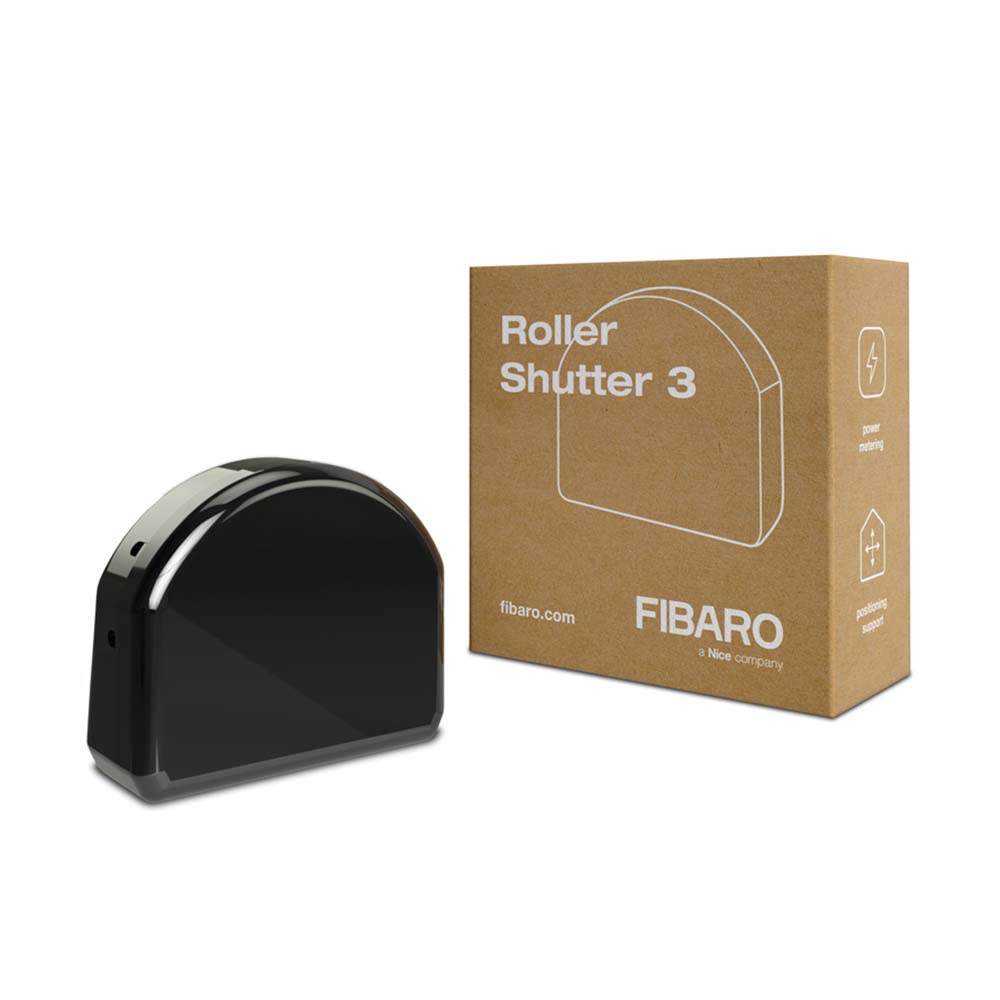

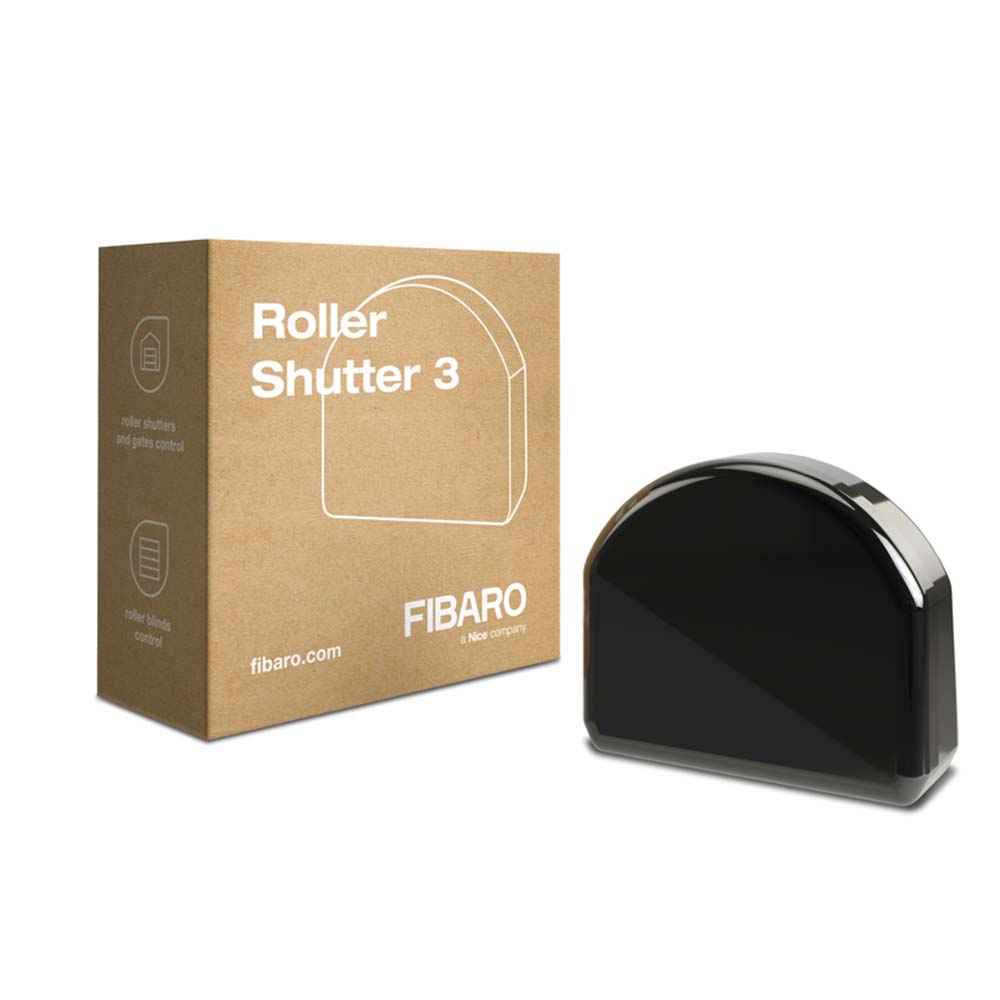

The FIBARO Roller Shutter 3 is designed for controlling electric roller shutters, curtain rails, blinds and other AC-powered devices. The module works with motors with mechanical and electronic end stops. The module can manually activate scenes or operate associations via a pulse switch. The Roller Shutter 3 measures active energy consumption and power.Features

  • Support for opening, closing and tilting
  • Precise positioning with different types of end adjustments
  • Compact device allows mounting behind switches
  • Works with different types of switches
Actors

Roller shutter and curtain control
Battery included

Yes
Built-in box

Ø = 50mm, depth ≥ 60mm
Communicatie & Protocol

Z-Wave
In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU
Installation method

Flush mount
Maximum load capacity

4.2A – resistive voltage 1.7A – inductive voltage
Operating humidity

10-95% relative humidity without condensation
Operating temperature

0–35°C
Power source

110-240V AC, 50/60Hz
Protocol

Z-Wave
Radio frequency

868.0–868.6MHz 869.7–870.0MHz
Range

outdoor up to 50m indoors up to 40m (Depending on terrain and building construction)
Supported load types

Resistive Single phase AC motor
Transmit power

+6 dBm
