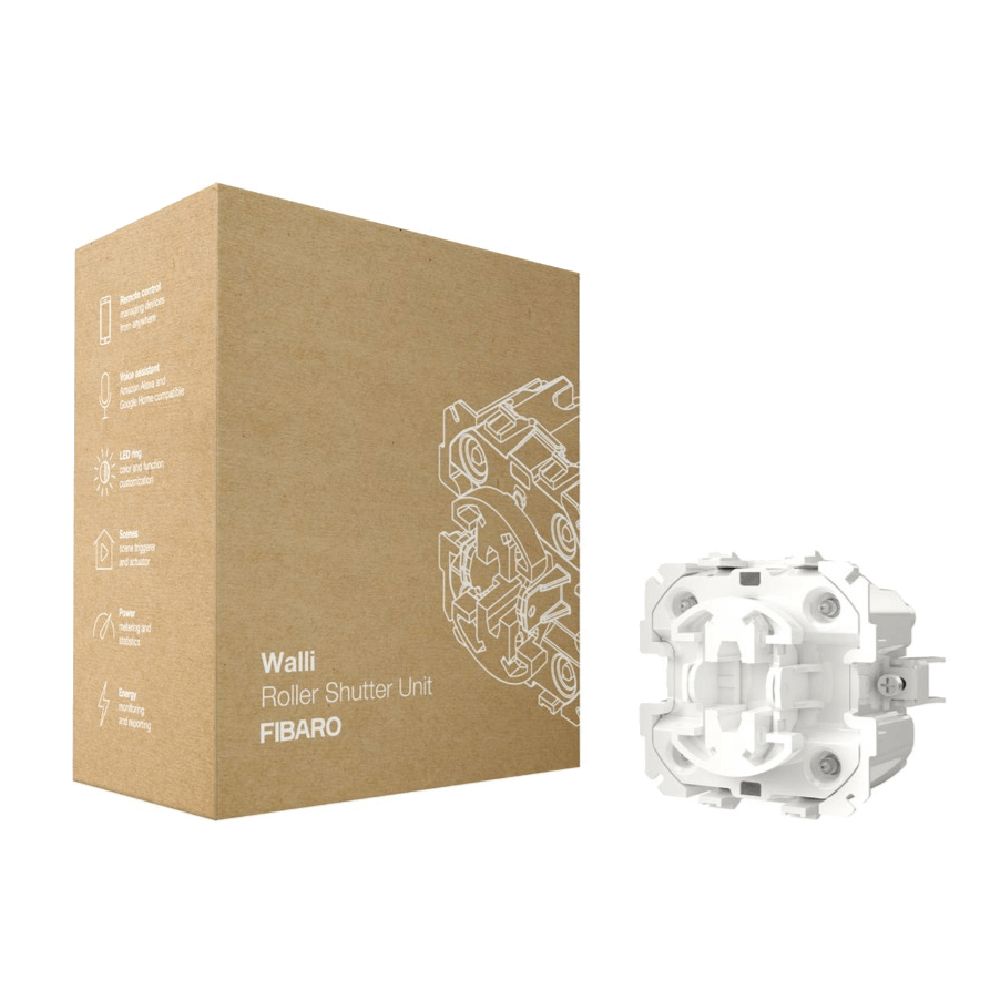

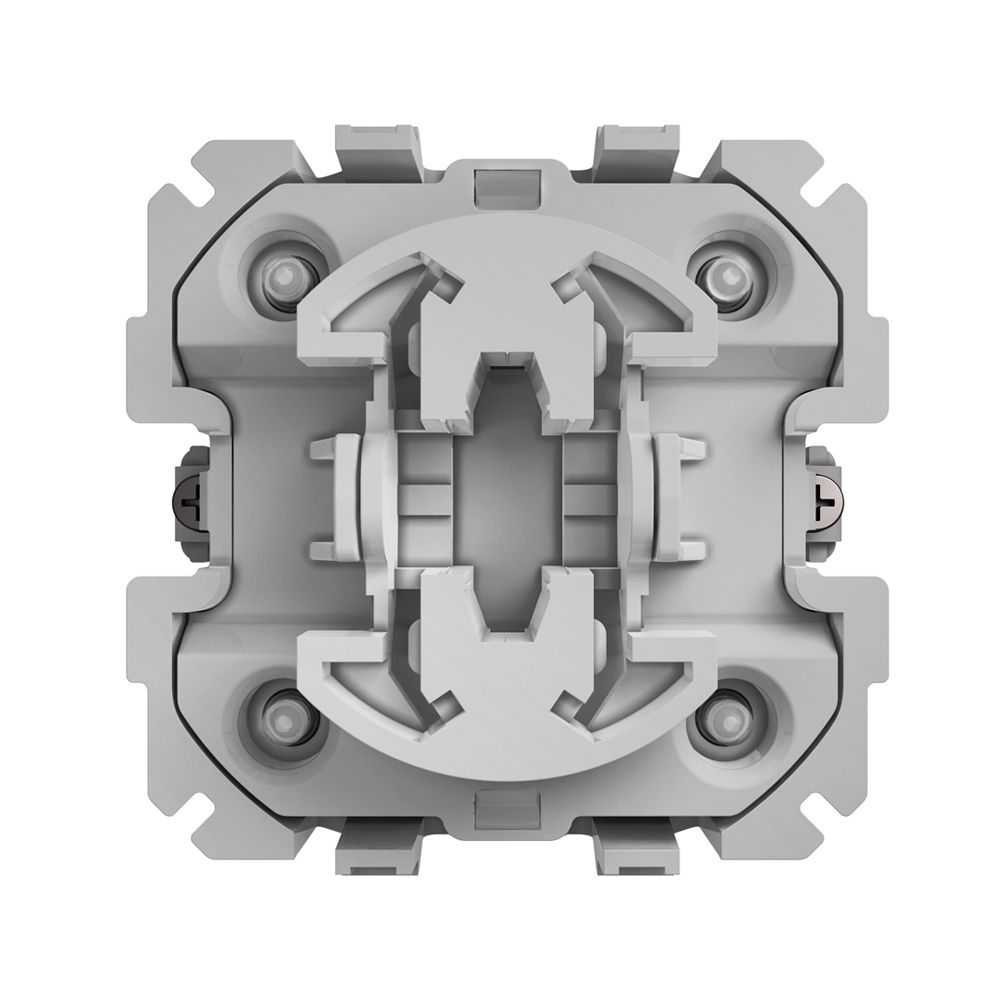

FIBARO Walli Roller Shutter Unit

€64.48

Intelligent flush-mounted module equipped with the functionalities of the FIBARO modules. Units are for use with Walli multiway frames or with other brands of switchgear. When using Walli frames, the mounting frame, the frame and the button with light guide must be ordered. A mounting frame is always required when using other brand switching material, the button adapter is also required with GIRA and Legrand cover materials.Units are for the use of Walli in multiple cover frames or with other brands of switching material. When using Walli frames, the mounting frame, frame and button with light guide must be ordered. A mounting frame is always required when using other brand switching material, the button adapter is also required with GIRA and Legrand cover materials.Features

  • Operate motorised curtains, blinds and shutters at the press of a button
  • Can be operated via a voice assistant
  • The colour of the LED ring can be adjusted to the wishes of the user
  • Actively measures power and energy consumption
Actors

Roller shutter and curtain control

Battery included

Yes

Built-in box

Ø = 60mm, depth ≥ 40mm

Communicatie & Protocol

Z-Wave

Compatibility switches (brand / series)

FIBARO Walli , Gira System 55 , Legrand Céliane , Schneider Odace

In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU

Installation method

Flush mount

Maximum load capacity

4A – motors with compensated power factor (inductive) 13A – resistive loads

Operating humidity

10-95% relative humidity without condensation

Operating temperature

0–35°C

Power source

110-230V AC, 50/60Hz

Protocol

Z-Wave

Supported load types

Resistive Single phase AC motor

Transmit power

+6 dBm
