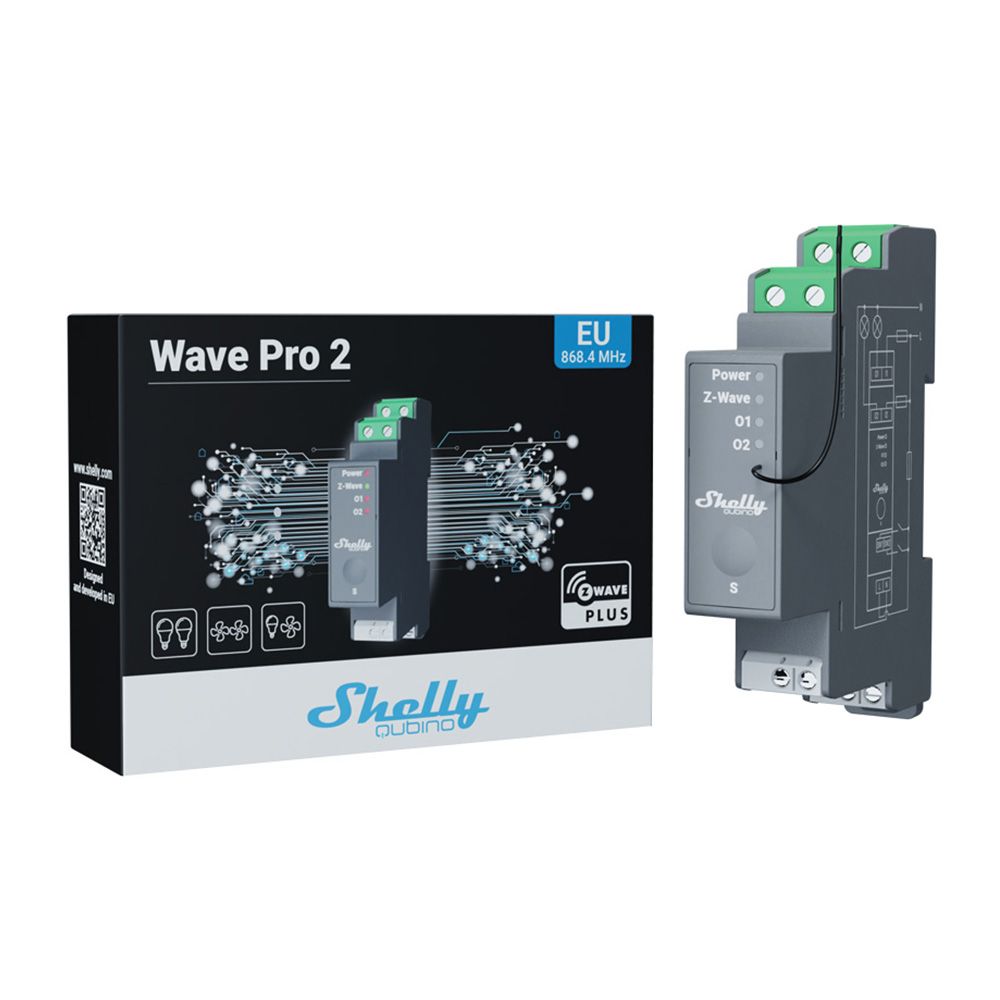

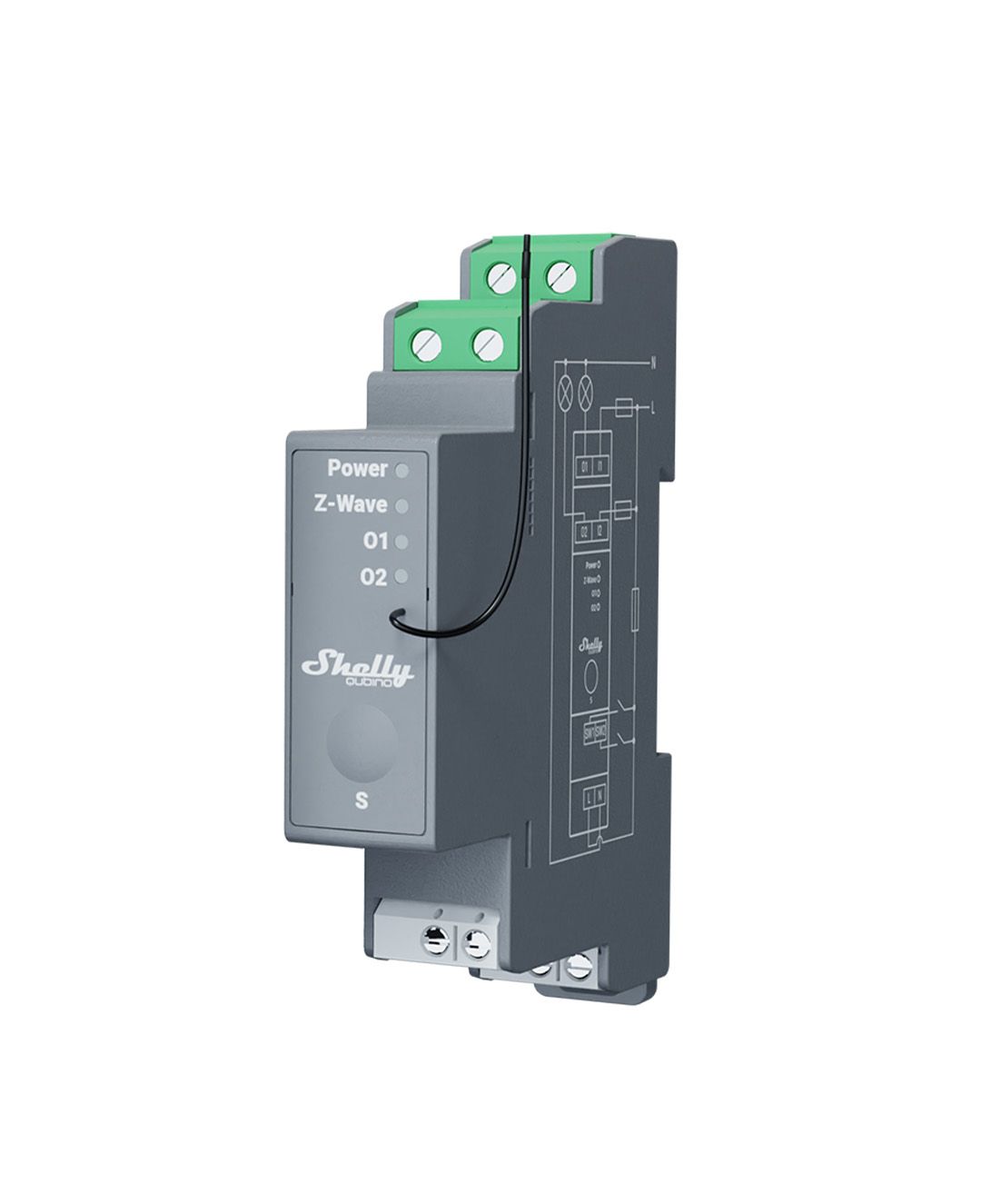

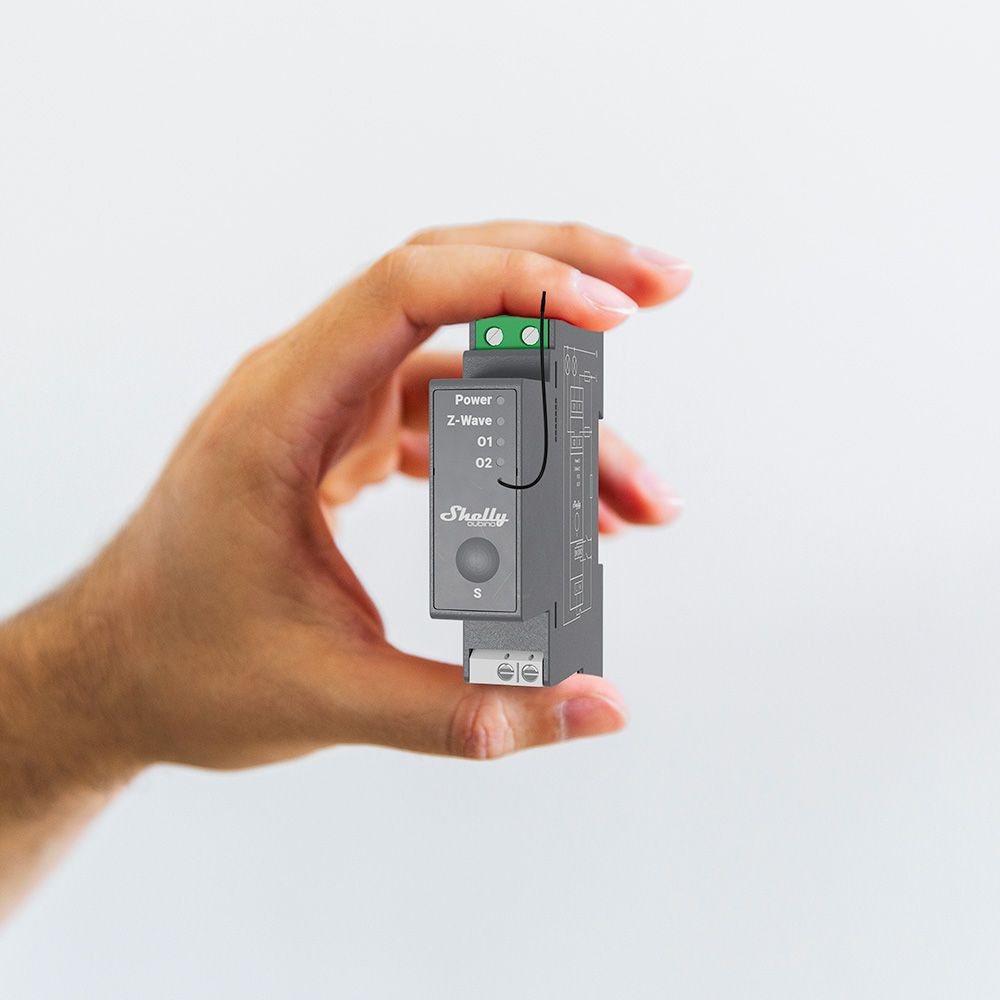

The Shelly Qubino Wave Pro 2 is a Dinrail mountable Z-Wave 800 actor. The module is designed to control 2 devices such as lighting, fans, infrared panels, heaters and other electrical appliances. It is possible to operate the module wirelessly via Z-Wave, as well as using a (wall) switch. The maximum load capacity is 16A per channel and a combined maximum of 25A. Supported load types Resistive (Ohms) – Incandescent, halogen, heaters Capacitive – Electronic equipment with capacitors Inductive (with RC Snubber) – LED lighting, LED drivers, air conditioning and fans Note! The switch-on peak of inductive loads such as LED lighting damages the relays. Use the RC Snubber to absorb this switch-on peak.
Features
- Z- Wave800
- 110-240VAC
- Output 2x16A, max 25A total
- Switch connection 2x
- Protected against overload
- Protected against overheating
- Protected against voltage peaks

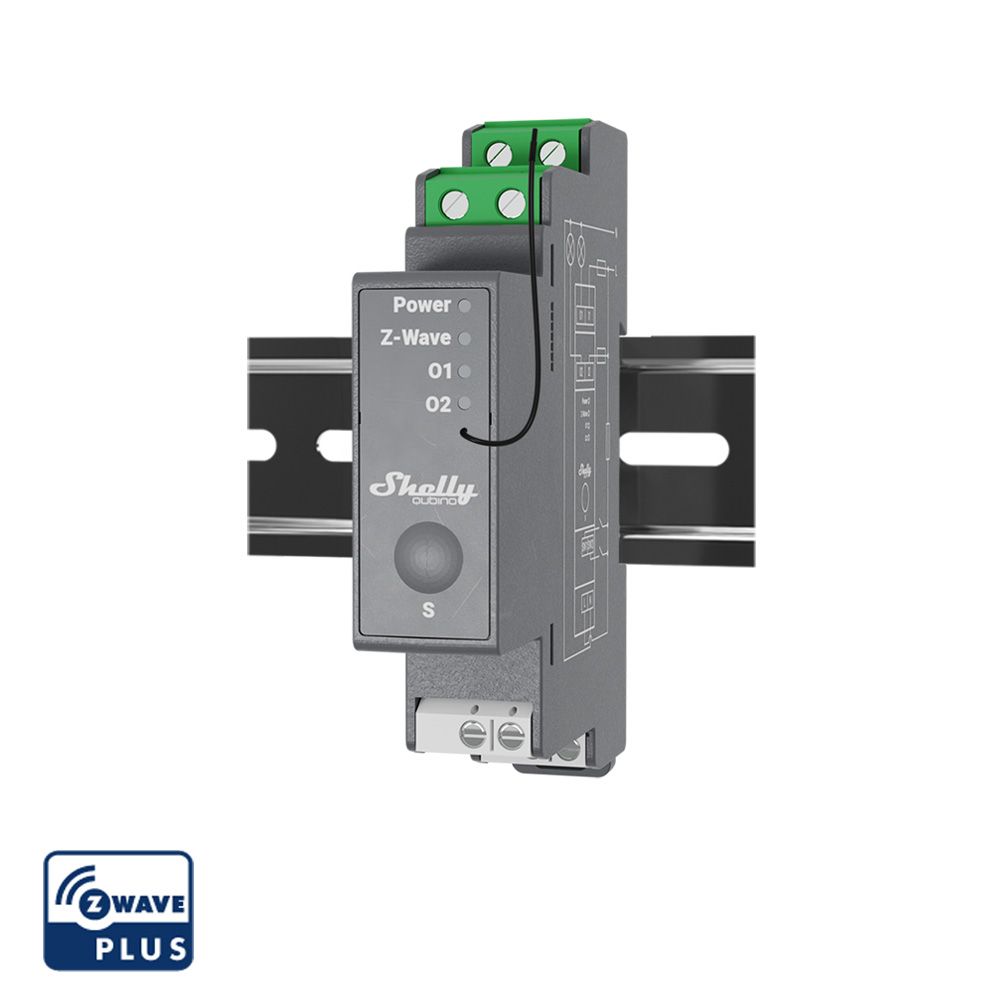

- Built-in distribution box, DIN-Rail
