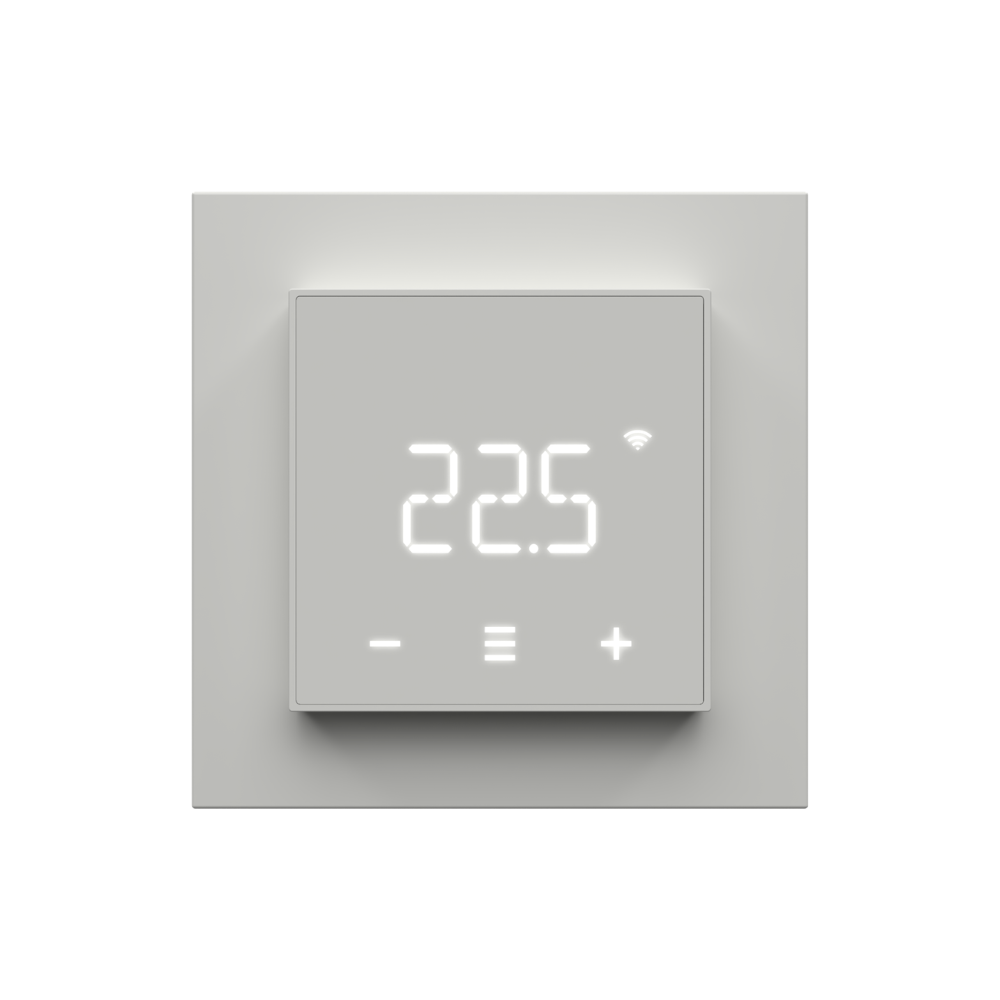

The Heatit Z-TRM7 thermostat is designed to control electrical heating and water-based heating systems. The thermostat operates via the Z-Wave network or locally using the buttons on the front and features a clear LED display with a user-friendly interface.
The thermostat includes a built-in temperature sensor and supports two additional external sensors, including a floor sensor. Thanks to its solid metal frame construction, installation in a junction box is simple and secure. The device fits most common System 55 frames.
The Z-TRM7 can be integrated into a smart home system via Z-Wave and supports associations. It can also function as a master thermostat to control and override up to 10 thermostats and 10 external relays, such as wall plugs.
The Heatit Z-TRM7 Thermostat has 3 modes: heat, cool and eco.
Features
- Z-Wave thermostat
- LED display
- Internal room temperature sensor
- External sensors (wired) and floor sensor
- Suitable for electrical and water-based heating
- Master function for controlling up to 10 thermostats and 10 relays
- Supports associations within Z-Wave network

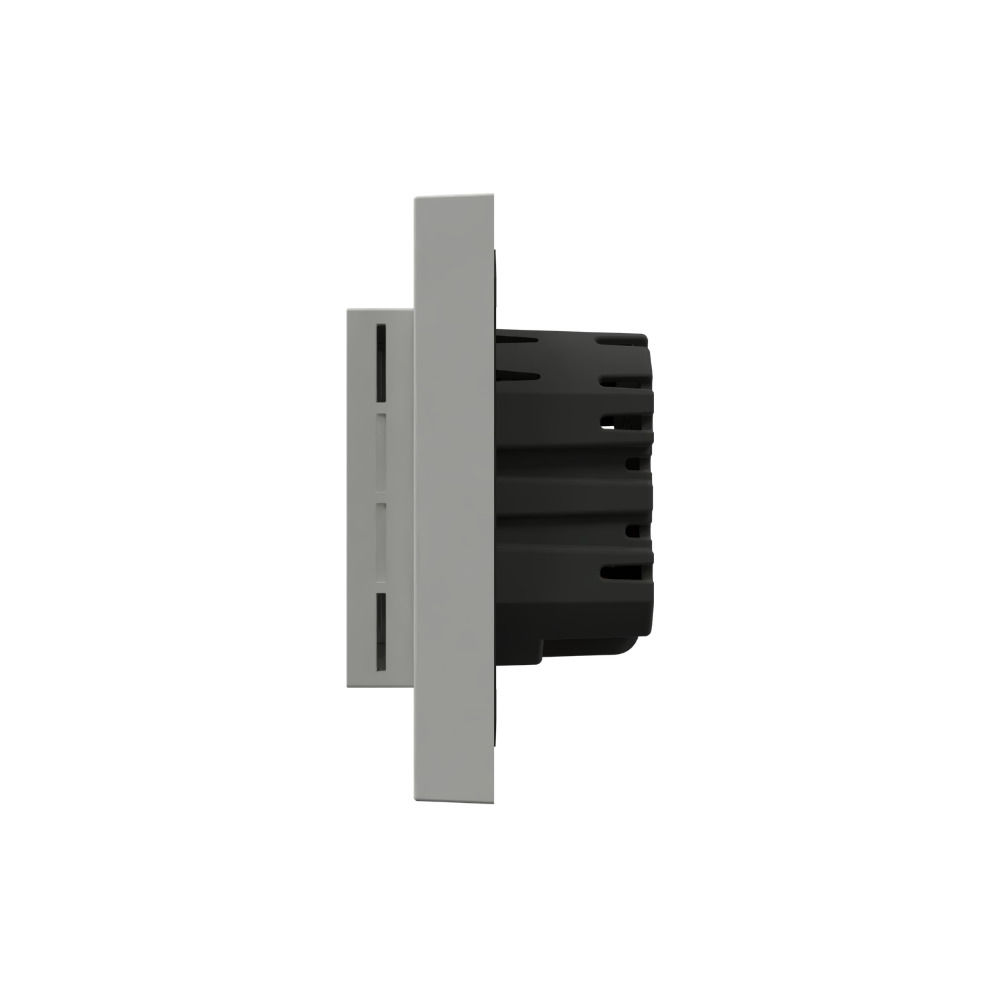

- Metal frame for secure installation
- 3 modes: Heat – Cool – Eco
- Hysteresis/PWM
- Temperature calibration
- Open window detection
- ZeroX™ detection
- Power regulator
- Temperature limiter
- Adjustable display brightness
- Single pole switch (maximum 16A / 3600W)
- Lock mode/child lock
- Temperature readout and scheduling via gateway
- Weekly schedule via Z-Wave gateway
- Active power metering
- SmartStart support
- Firmware update (OTA)
- Supports S0 and S2 encryption
