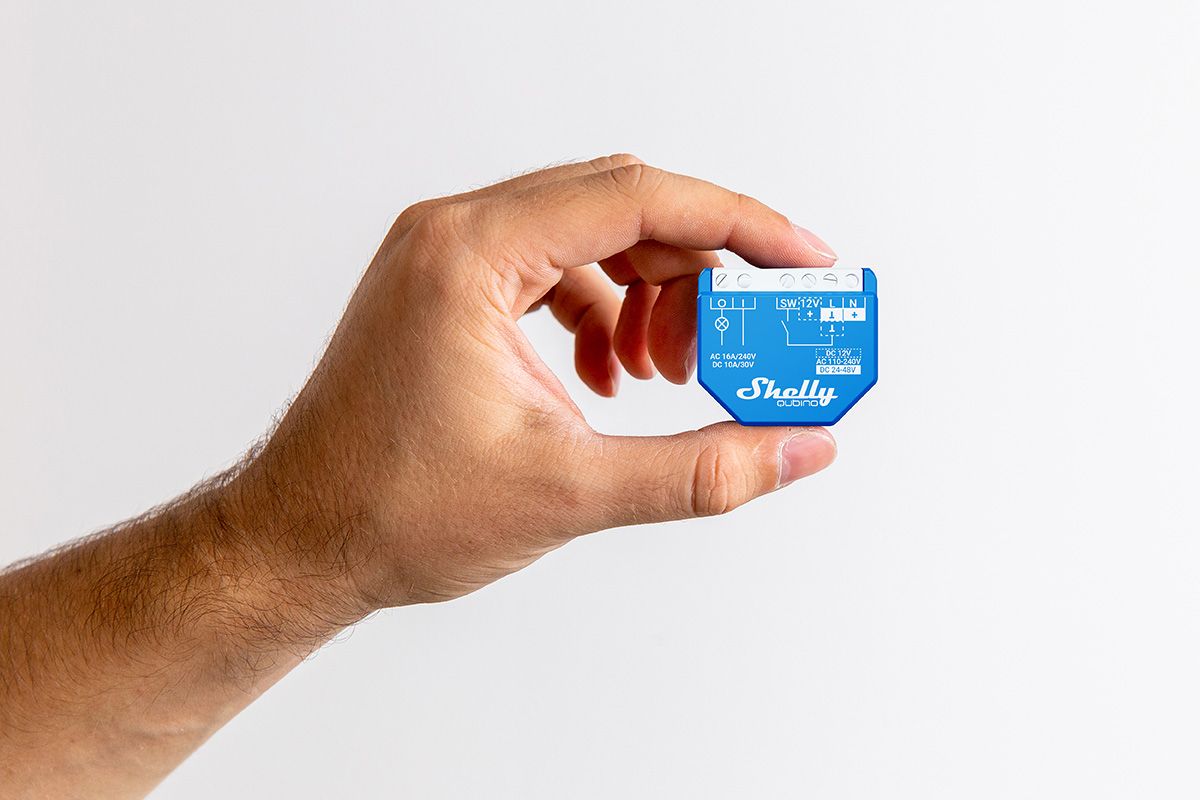

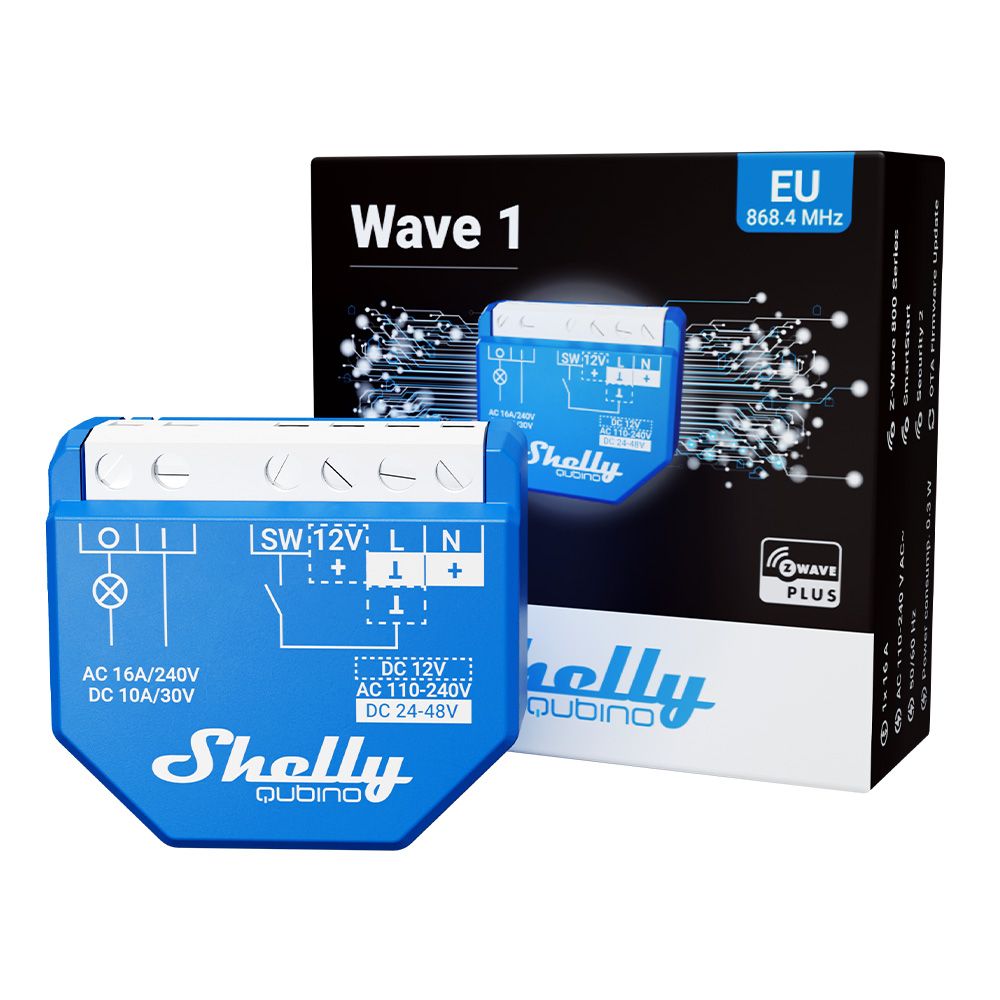

Shelly Qubino Wave 1

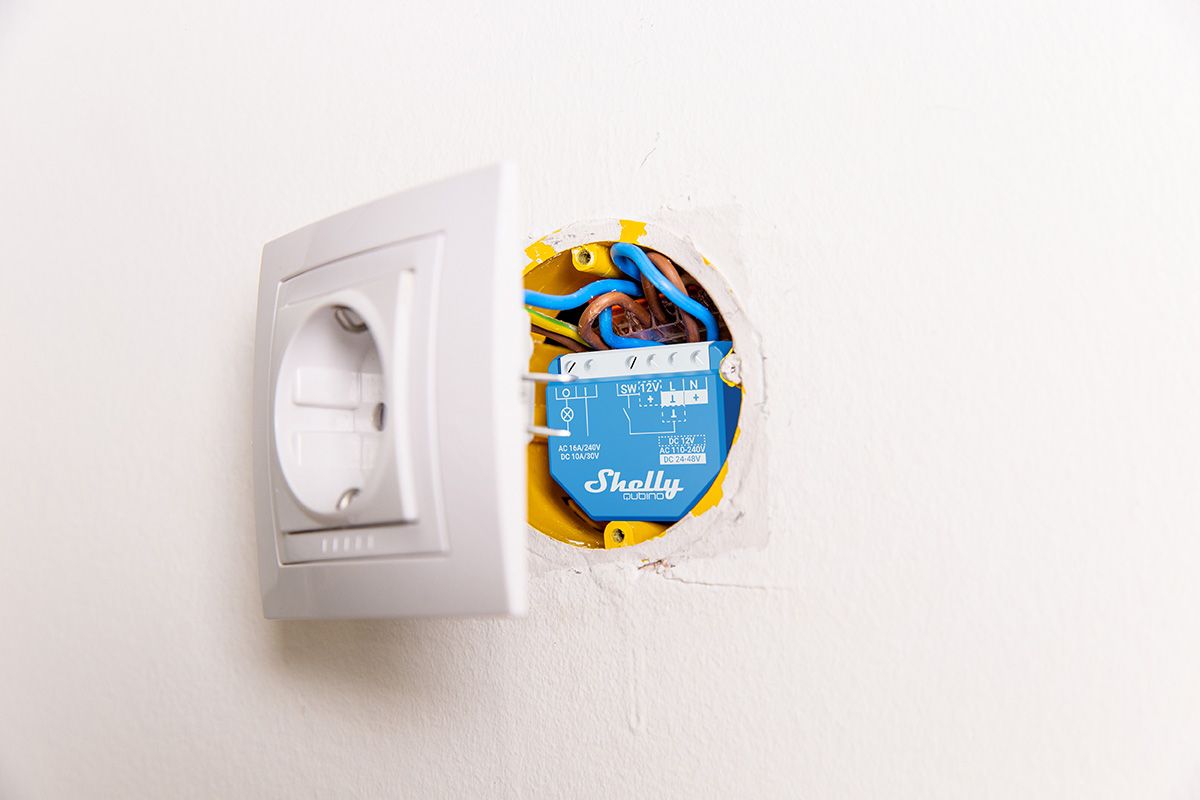

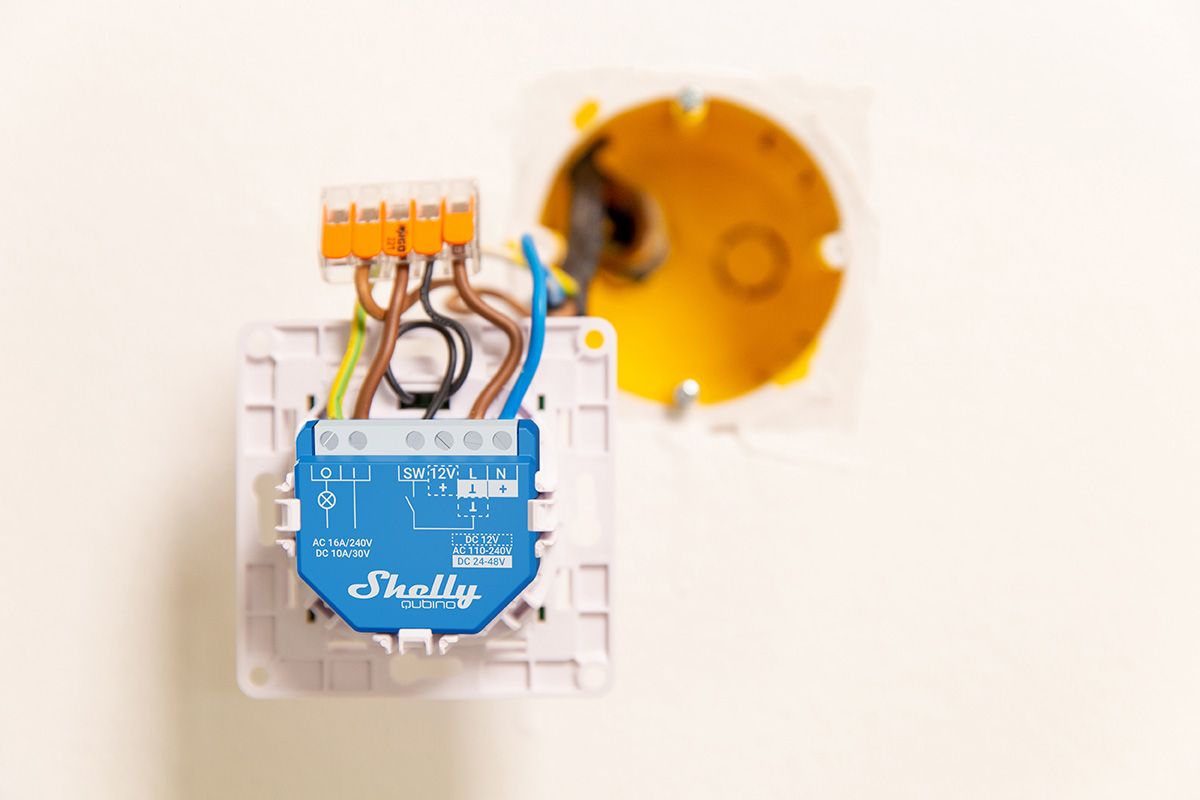

The Shelly Qubino Wave 1 module is a Z-Wave 800 built-in switch with one potential-free output. The module is designed to control devices such as electric locks, garage doors, entrance gates, irrigation systems, electrical outlets and lighting. With a maximum load capacity of 16A, the module offers sufficient power for various applications. It is possible to control the module wirelessly via Z-Wave, as well as using a wall switch.

The module can be powered with a voltage of 110-240V AC, 24-48V DC or 12V DC, providing flexibility in power supply. In addition, the output is potential-free, which means that the input voltage can differ from the device you want to switch. This allows compatibility with various electrical devices. In addition, the module is equipped with protection against overheating.

Features

• Z-Wave 800 series

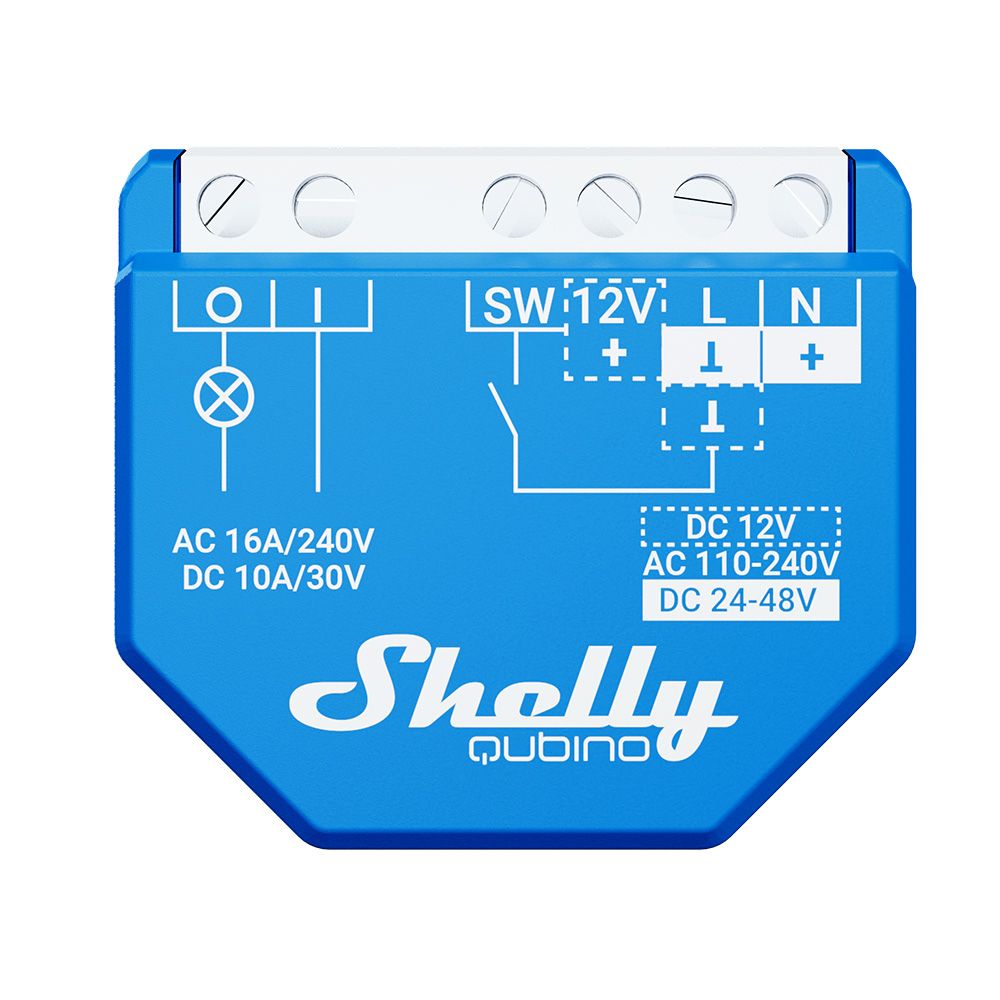

• Switch with potential-free output
• Maximum load capacity: 16A
• Protected against overheating
• Supports over-the-air firmware updates (OTA)
• Use with different types of switches
