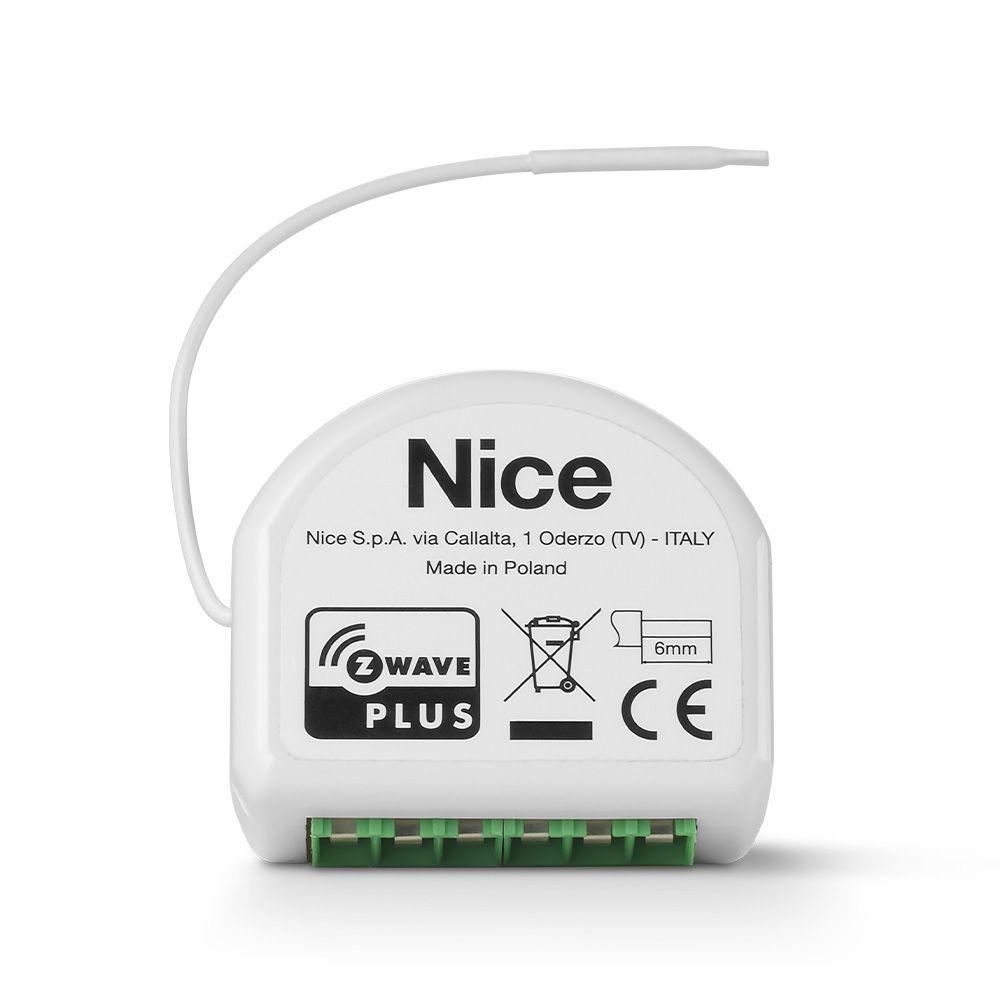

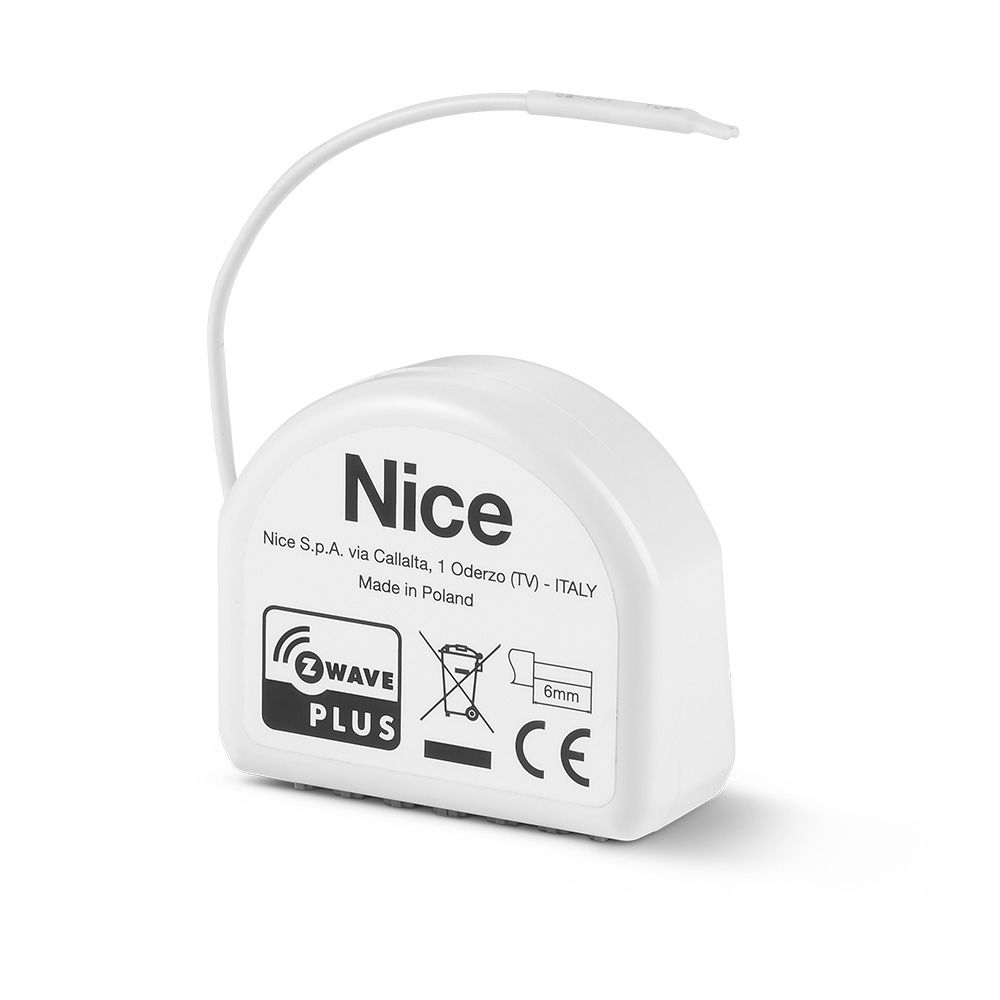

The Nice SingleSwitch-Control is a built-in module to switch electrical appliances on/off and measure energy consumption. The built-in module is one of the smallest in the world and can be used to mount behind a socket or in a housing. The Nice SingleSwitch Control has a maximum load of up to 2500W. The module is also equipped with various protections, including protection against overheating and overload.
Features< ul>
Relay Switches
Nice SingleSwitch-Control
€58.28
Compact Z-Wave module for on/off switching of 1 electrical circuit.
| Actors | Switch |
|---|---|
| Built-in box | Ø = 50mm, depth ≥ 60mm |
| Communicatie & Protocol | Z-Wave |
| In accordance with guidelines | RED 2014/53/EU RoHS 2011/65/EU |
| Inputs | 2 |
| Installation method | Flush mount |
| Maximum load capacity | 8A |
| Operating temperature | 0-35 °C |
| Outputs | 1 |
| Power source | 100-240V AC, 50/60Hz |
| Protocol | Z-Wave |
| Range | outdoor up to 50m indoors up to 40m (Depending on terrain and building construction) |
| Supported load types | Resistive Resistive-capacitive |
| Transmit power | +6 dBm |
