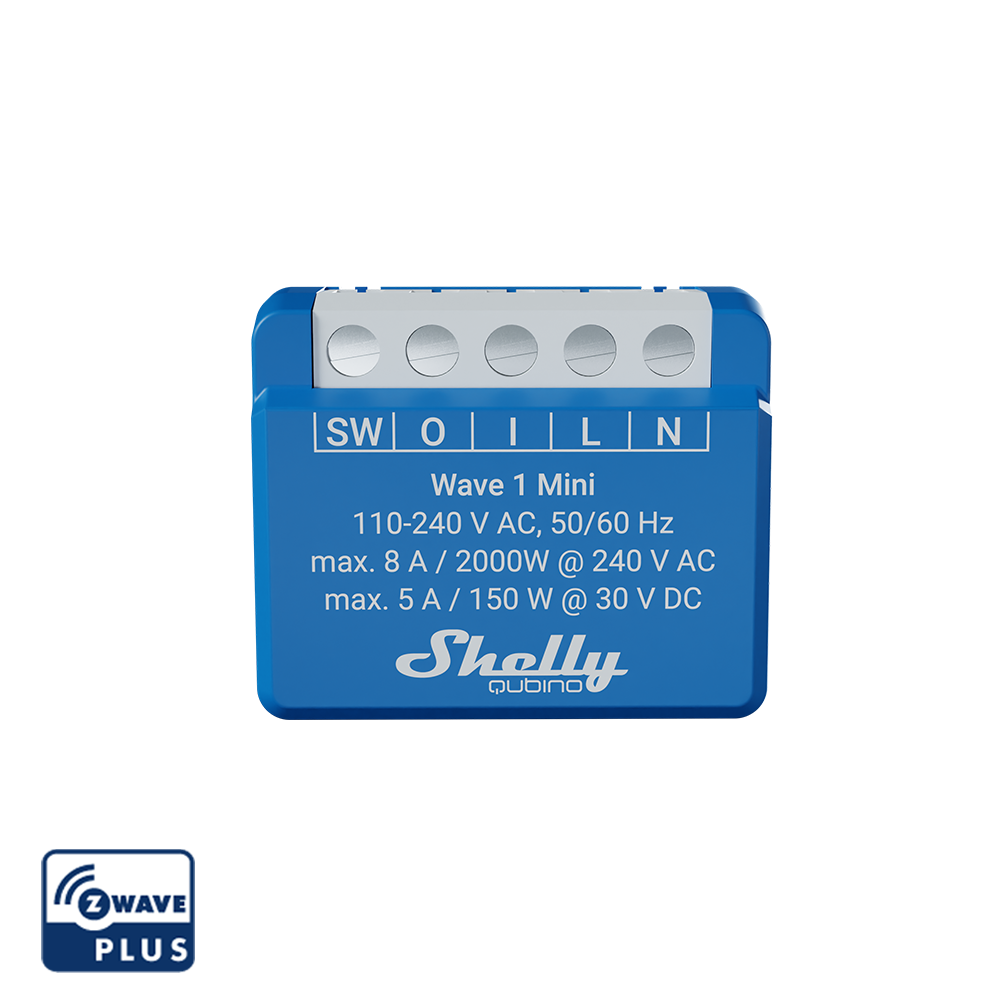

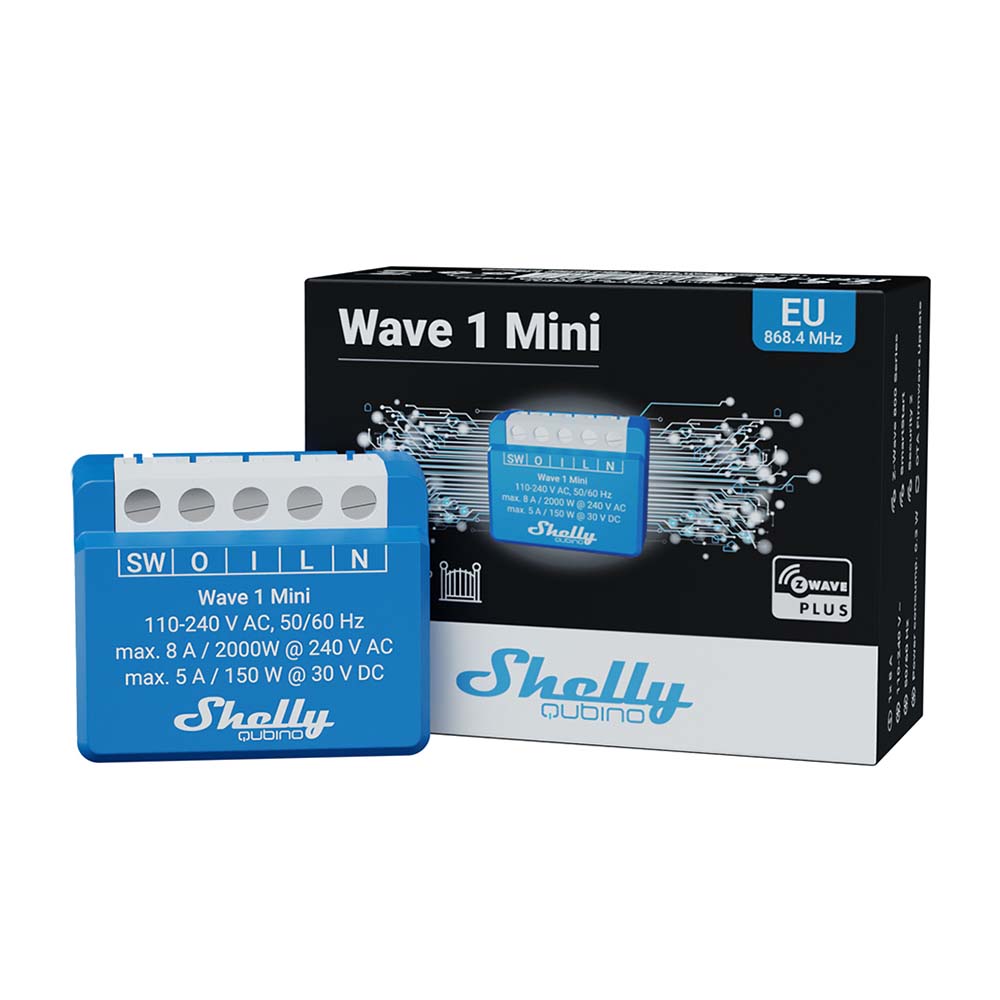

Shelly Qubino Wave 1 Mini

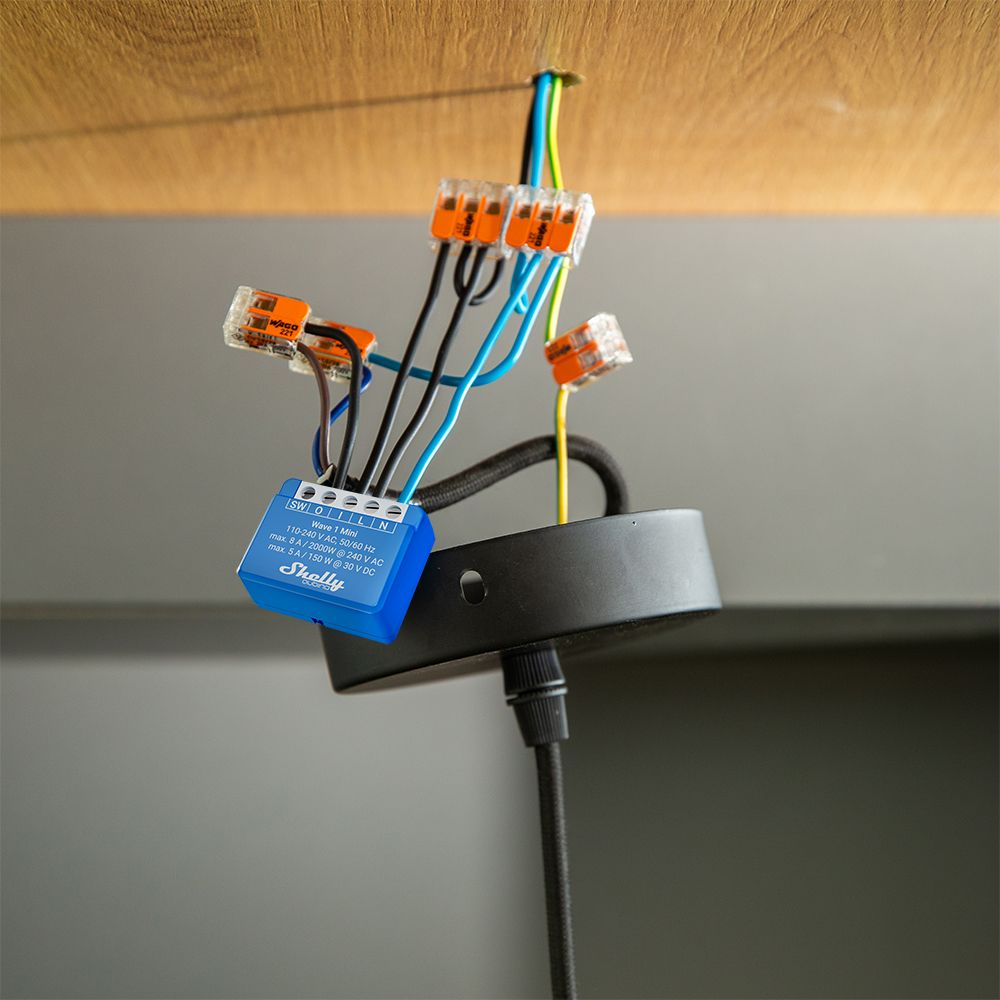

The Shelly Qubino Wave 1 mini module is a Z-Wave 800 built-in switch with one dry or potential-free contact and one switch. The module is designed to control devices such as gates, garage doors and other electrical appliances. It is possible to control the module wirelessly via Z-Wave, as well as using a single wall switch.

The module can be powered with a voltage of 110-240V AC. The potential-free contact has a maximum load capacity at 230v of 8A or 5A at 30V DC.

Features

• Z-Wave 800 series
• Potential free switch
• Maximum load capacity at 230V AC – 8A / 30V DC 5A
• Supports over-the-air firmware updates (OTA)

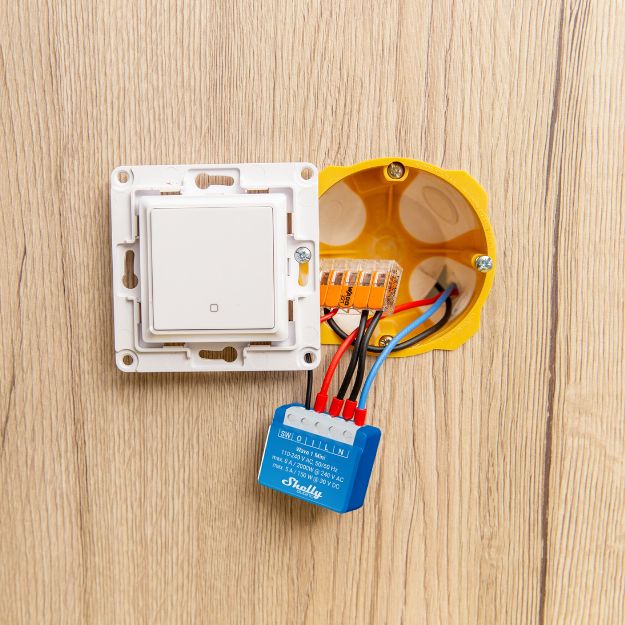

• Can be used with different types of switches
• S2 security and SmartStart suitable

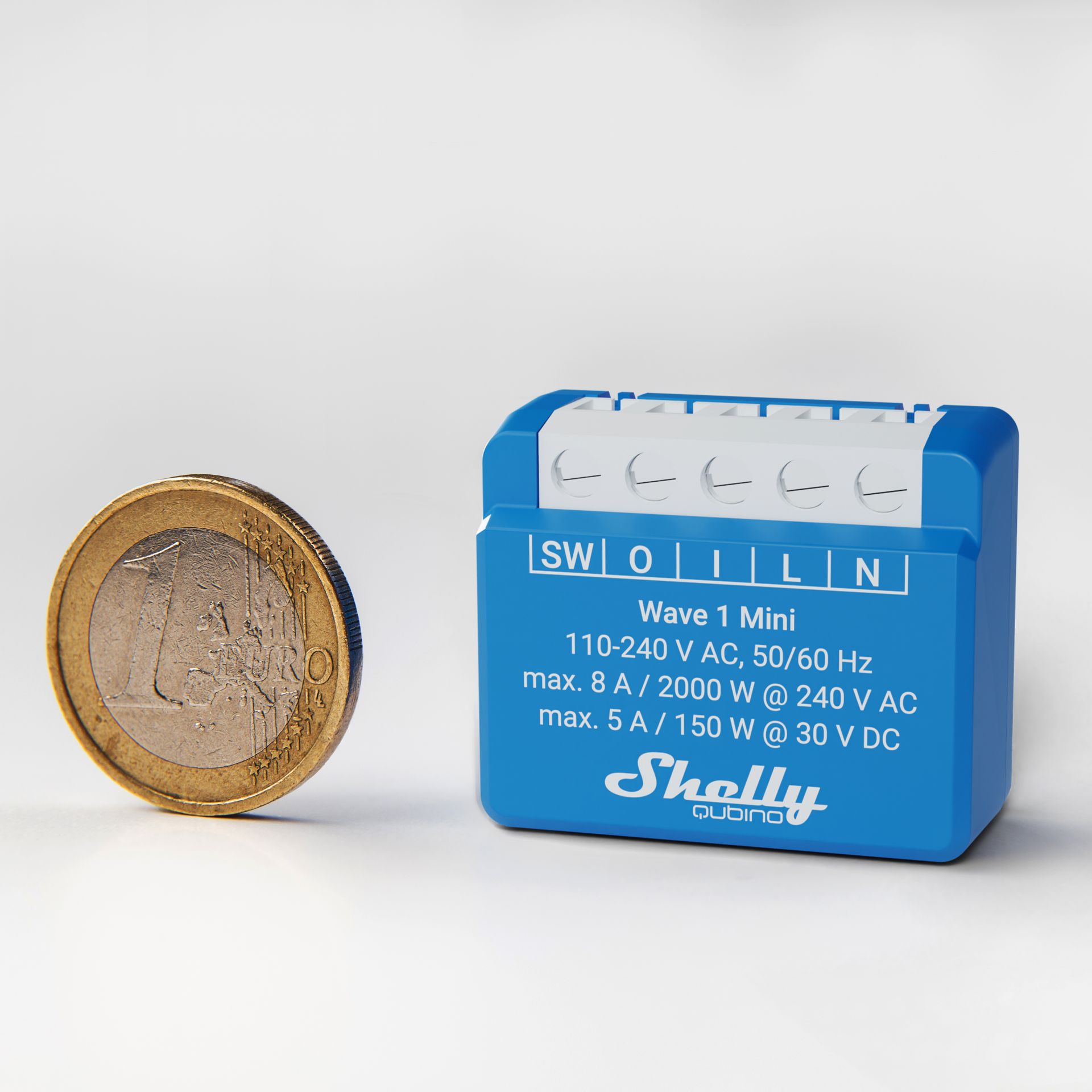

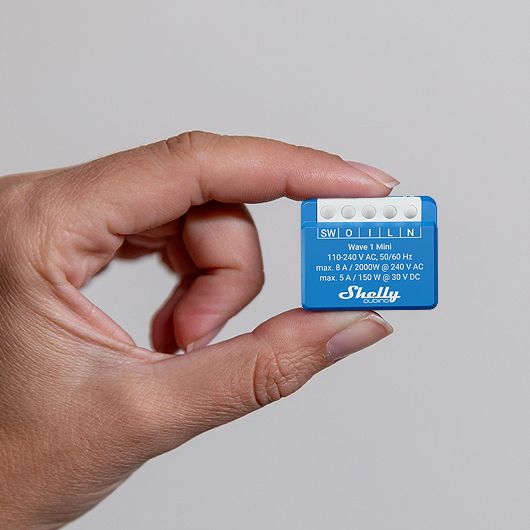

• Format 29x35x16 mm
• Wire 0.5 to 1.5 mm²
