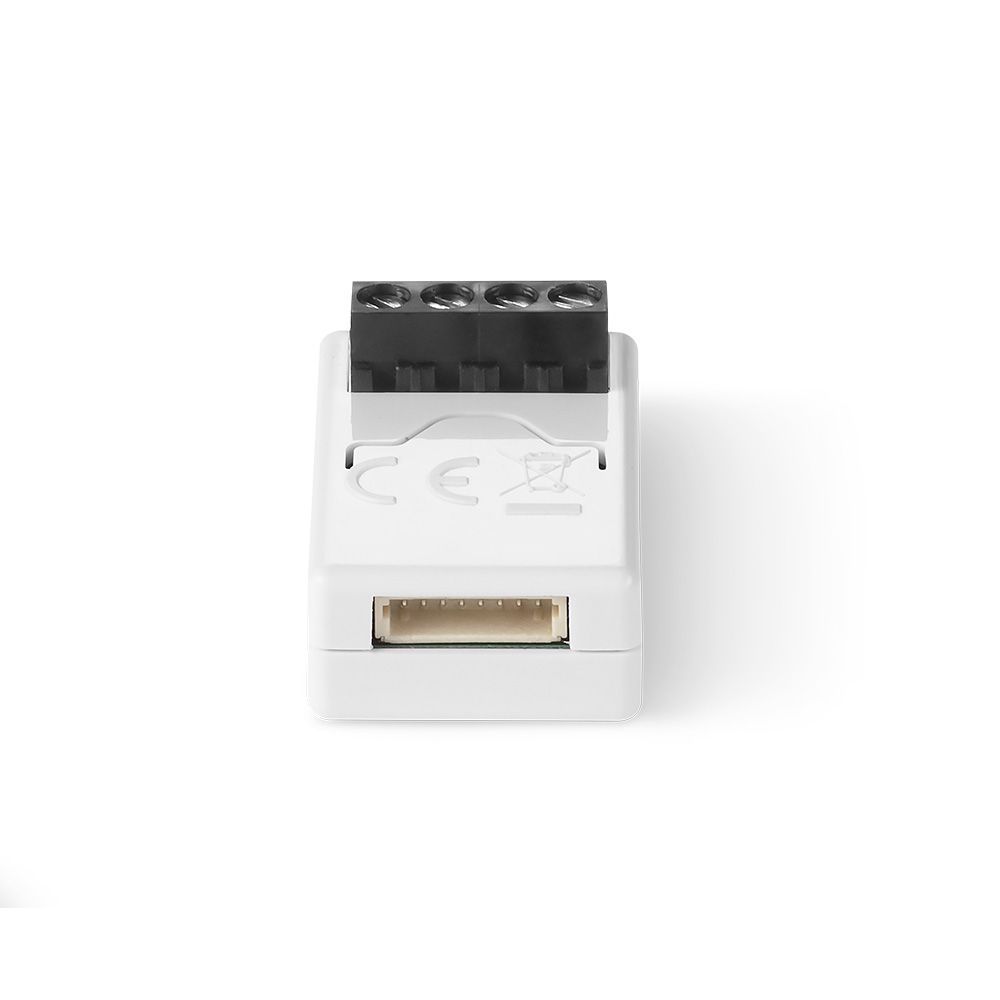

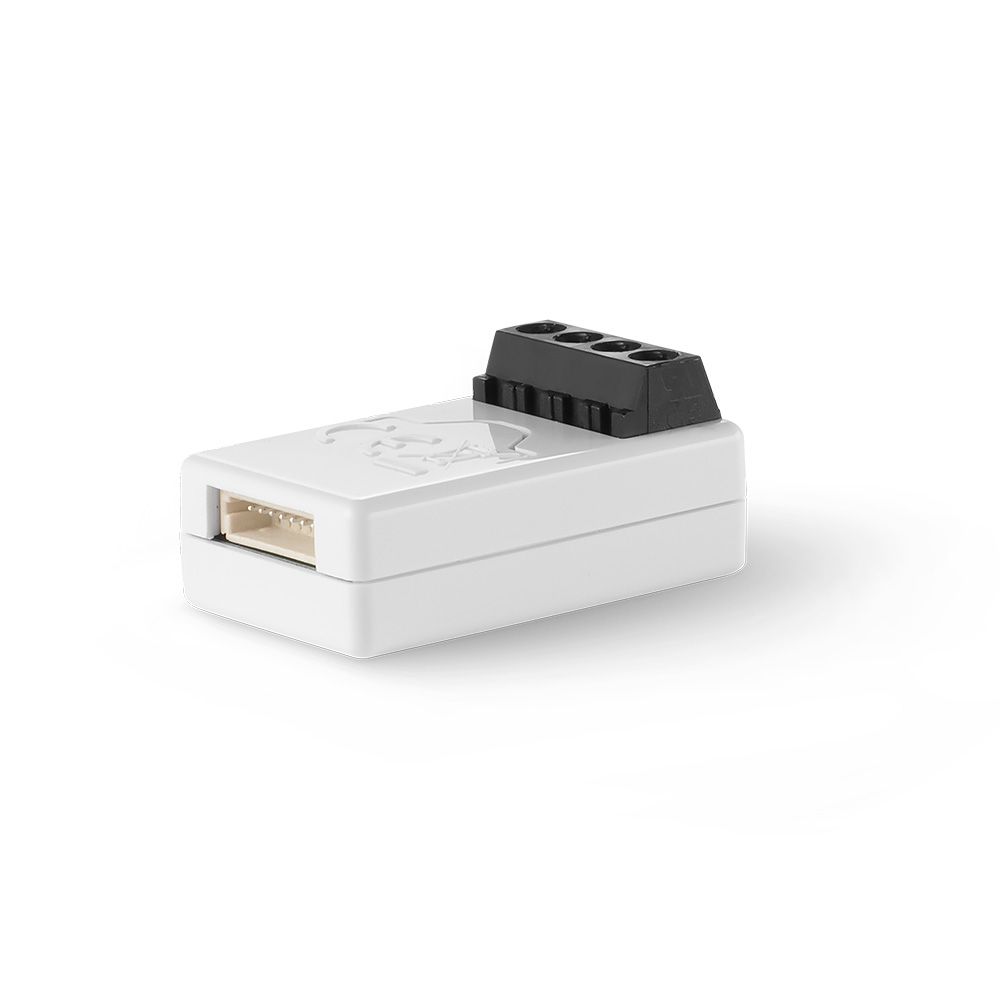

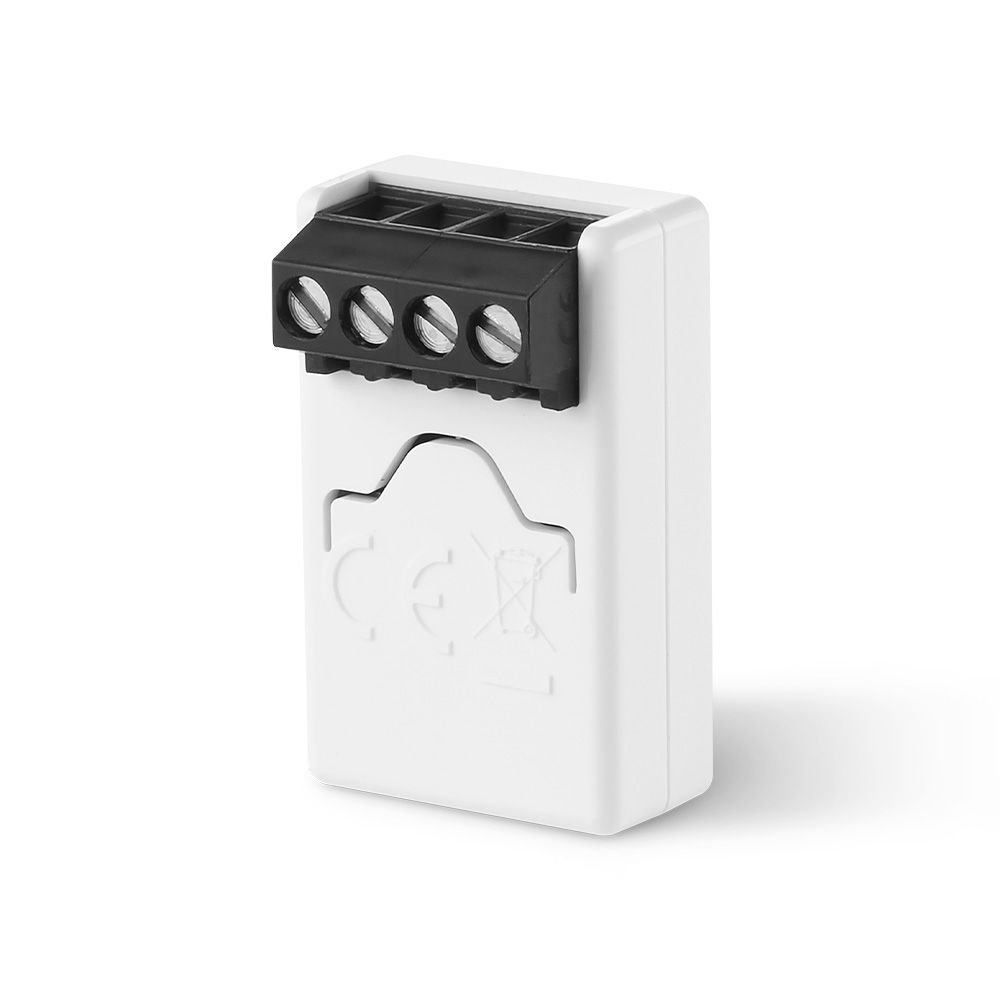

Nice Smart-Control

€54.56

SKU: 301617040301 Category: Brand:

The Nice Smart-Control extends the functionality of classic devices and wired sensors. These devices can be integrated into the Z-Wave network with the Smart-Control.

This product is intended for connection to FIBARO gateways, including the Home Center 3 and Home Center 3 Lite. The device communicates via Z-Wave. The device can be operated and automated via the Z-Wave network.

Features

  • Integrated temperature sensor
  • Connect with up to six DS18B20 (temperature) sensors, one DHT (humidity and temperature) sensor, two-wire analog sensors, three-wire analog sensors and two binary sensors.
Communicatie & Protocol

Z-Wave

Dimensions Product

29 x 18 x 13 mm

In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU

Inputs

2 0-10V or digital inputs 1 serial 1-wire input

Installation method

Flush mount

Maximum load capacity

150mA

Outputs

2 potential-free outputs

Output voltage

30V DC / 20V AC ±5%

Power source

9-30V DC ±10%

Protocol

Z-Wave

Supported digital sensors

6x DS18B20 or 1x DHT22

Transmit power

+7 dBm
