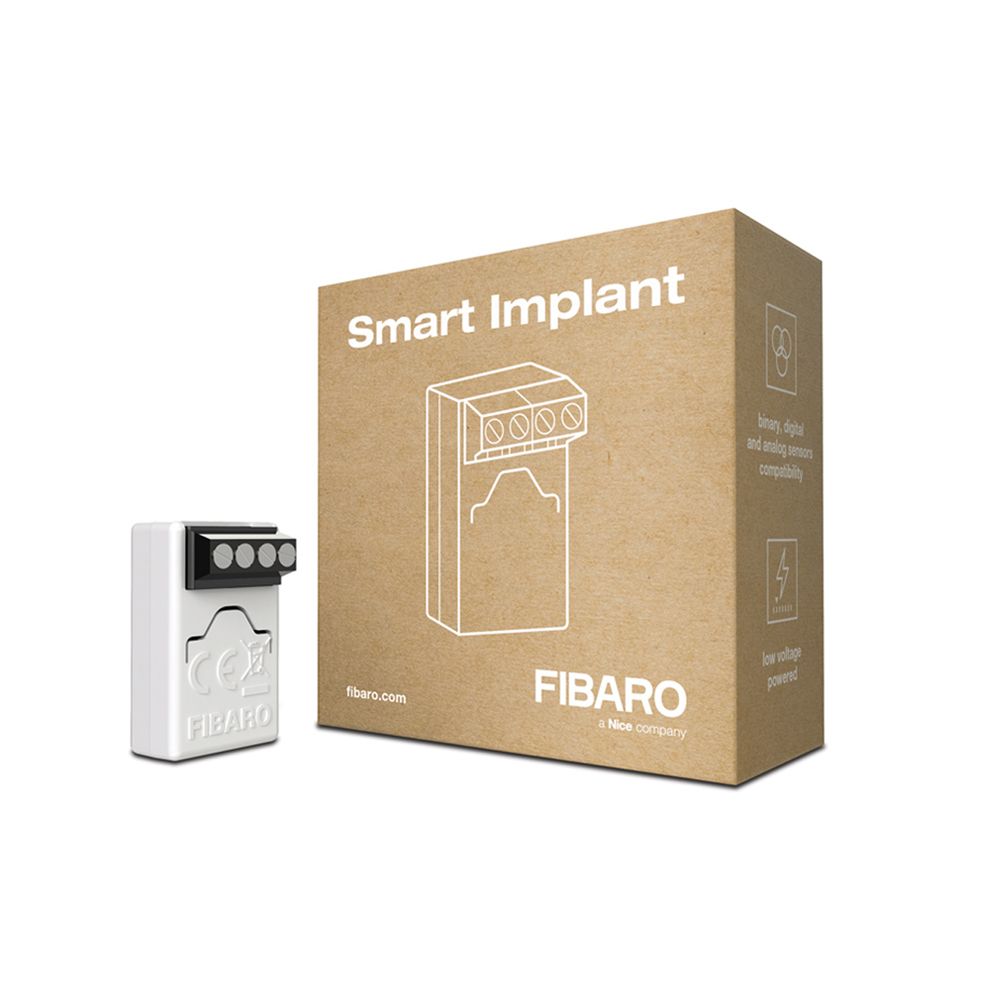

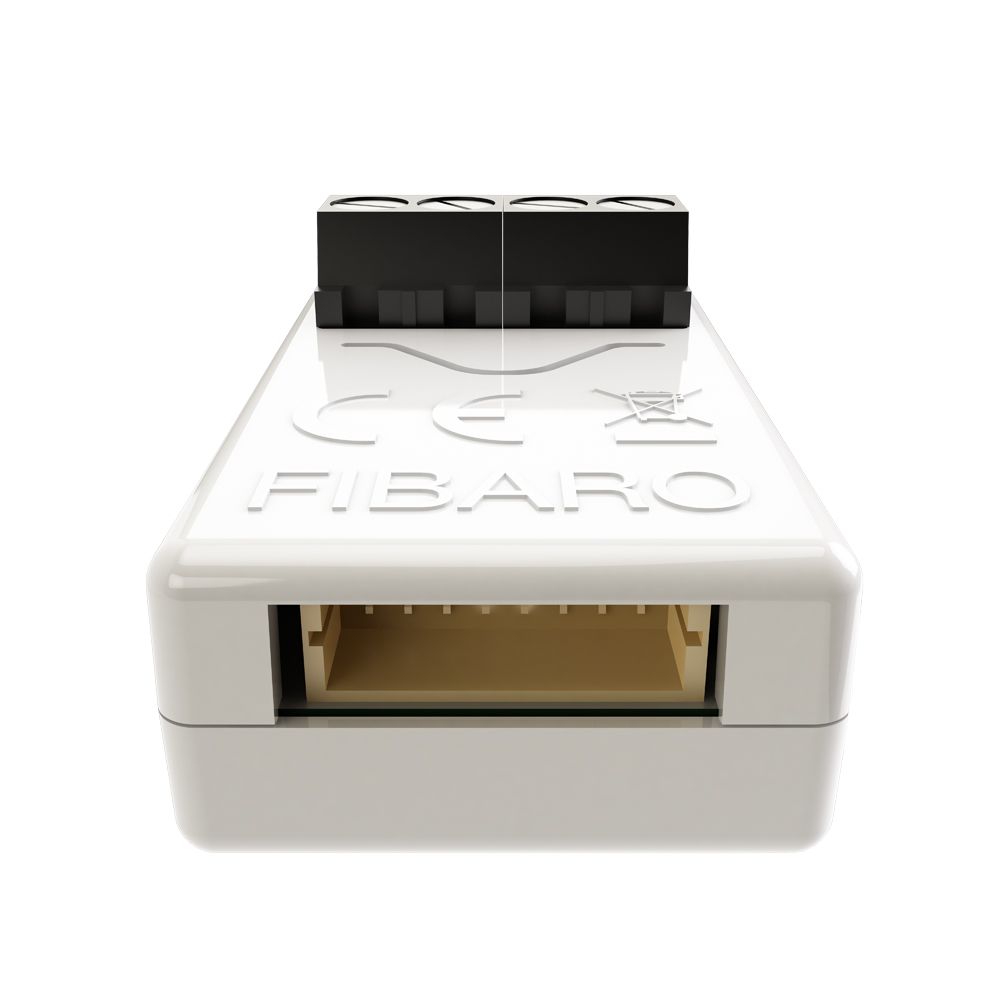

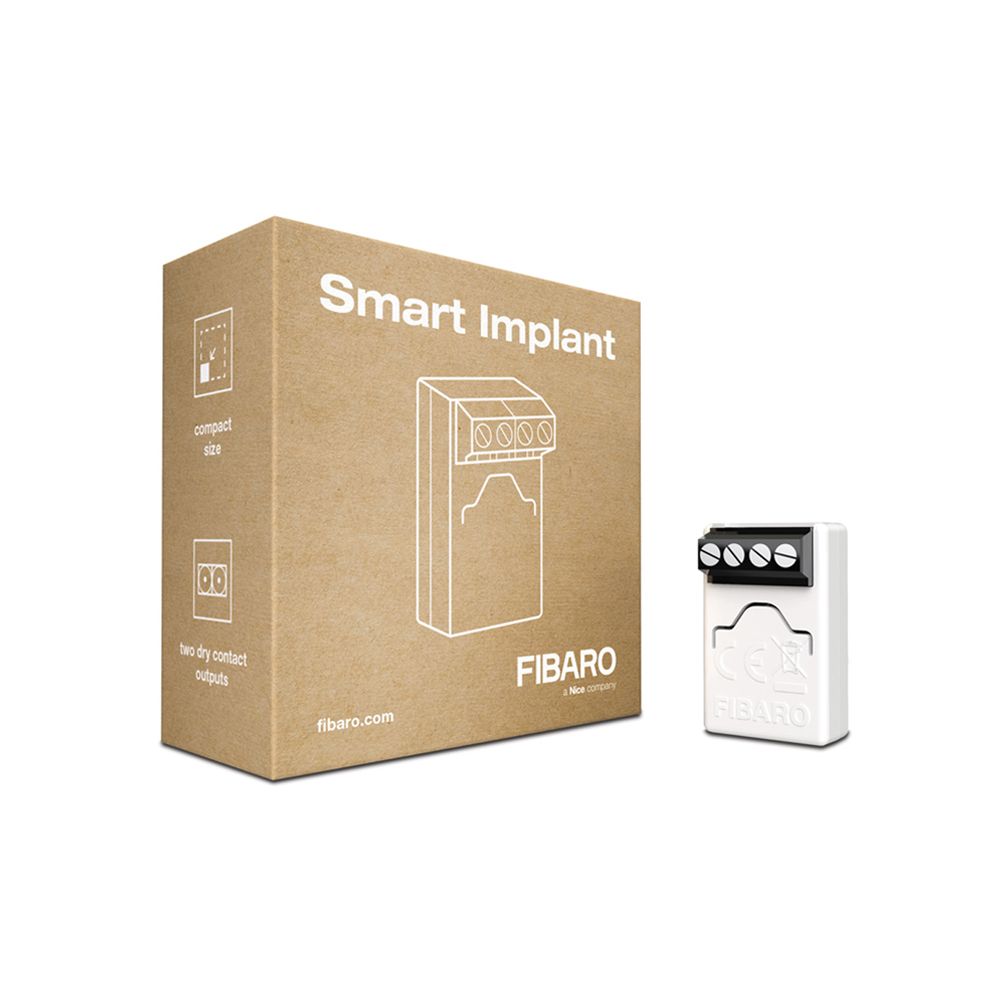

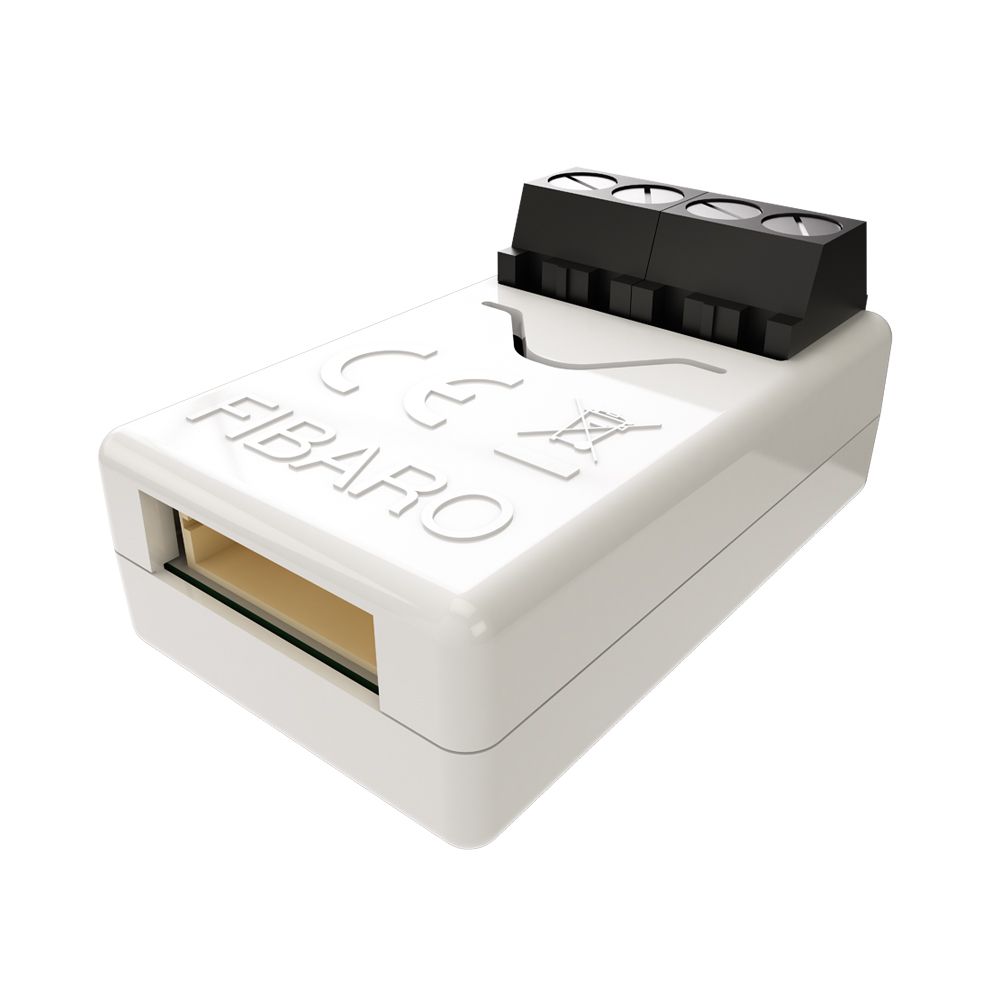

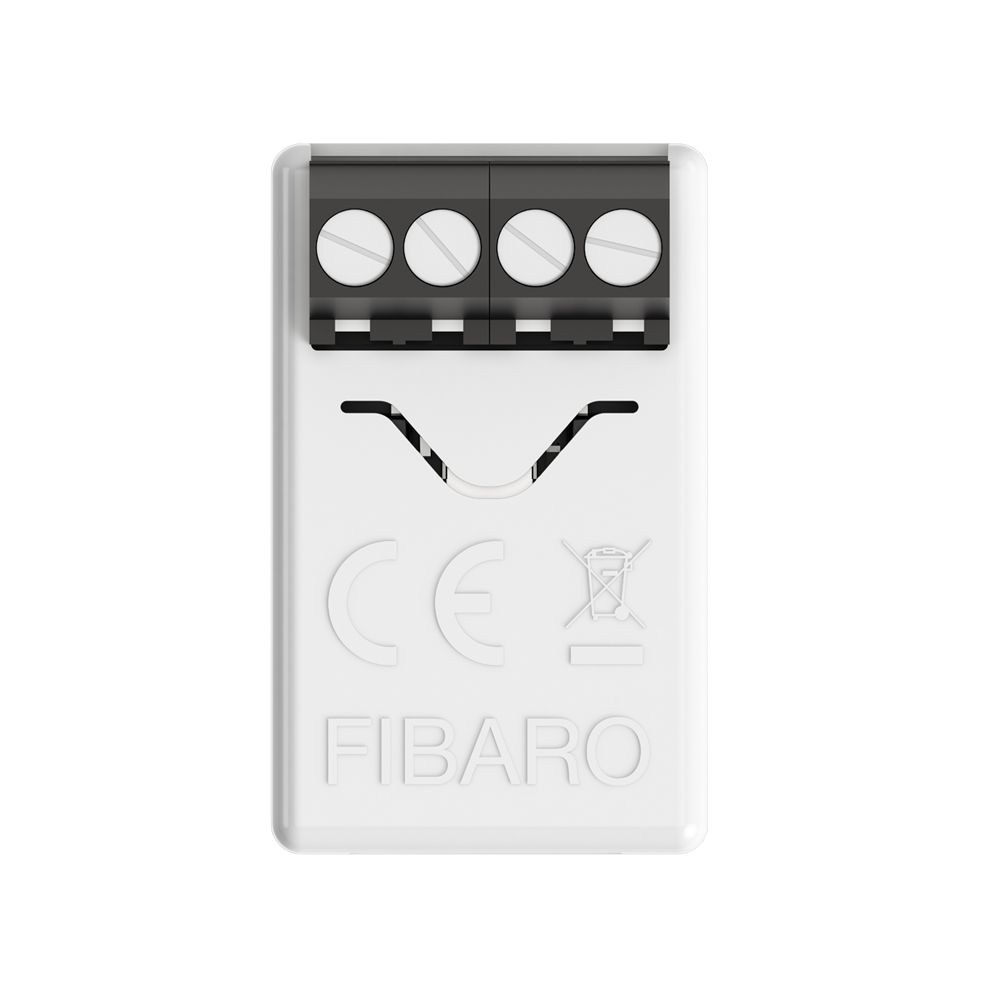

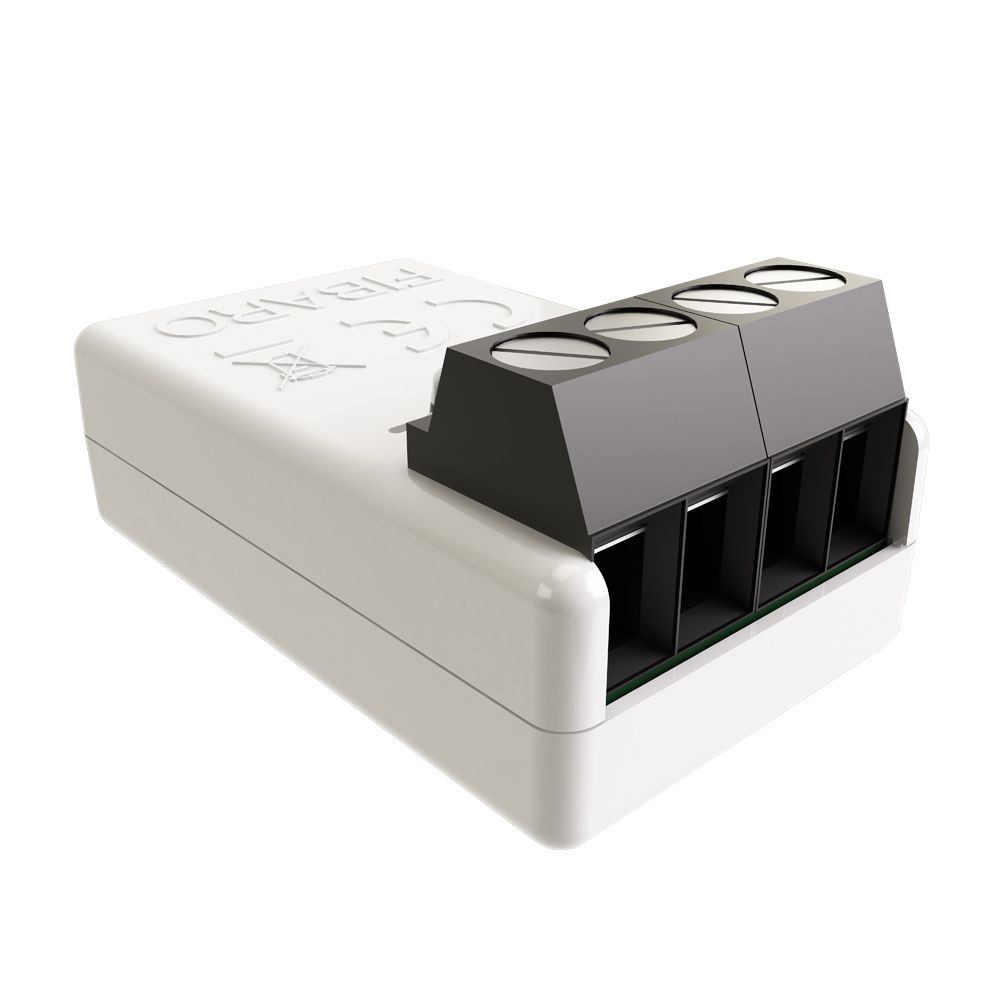

FIBARO Smart Implant

€60.76

SKU: FGBS-222 ZW5 Category: Brand:

The Smart Implant is a universal sensor and double relay to control potential-free and 24V DC circuits. The universal module makes it possible to include any device into the Z-Wave network. The contact on the inputs can be copied to the outputs. In addition, the outputs can also be controlled separately. The device supports analogue sensors, binary sensors, DS18B20 temperature sensors and a DHT22 humidity sensor.
Features

  • Works as a Z-Wave repeater
  • Universal sensor with two outputs for controlling potential-free contacts
  • Built-in temperature sensor
Communicatie & Protocol

Z-Wave

Dimensions Product

29 x 18 x 13 mm

In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU

Inputs

2 0-10V or digital inputs 1 serial 1-wire input

Installation method

Flush mount

Maximum load capacity

150mA

Outputs

2 potential-free outputs

Output voltage

30V DC / 20V AC ±5%

Power source

9-30V DC ±10%

Protocol

Z-Wave

Supported digital sensors

6x DS18B20 or 1x DHT22

Transmit power

+7 dBm
