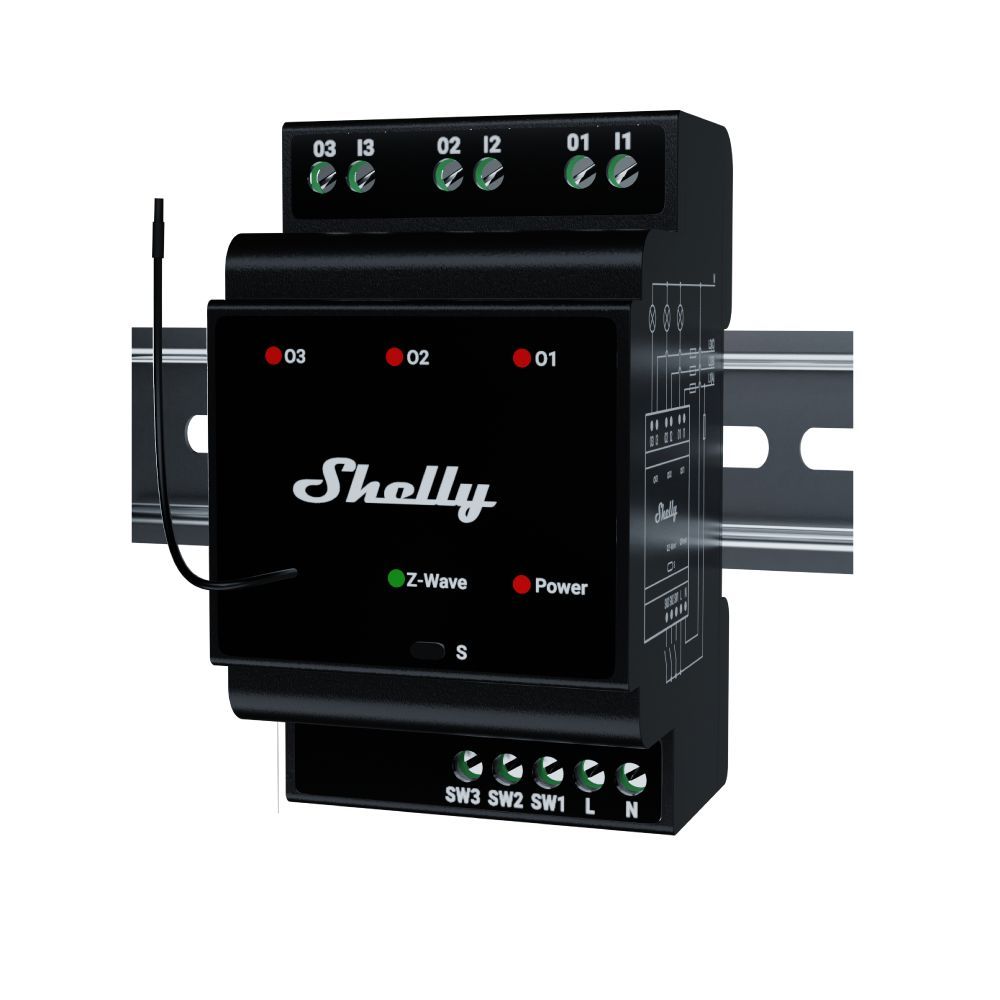

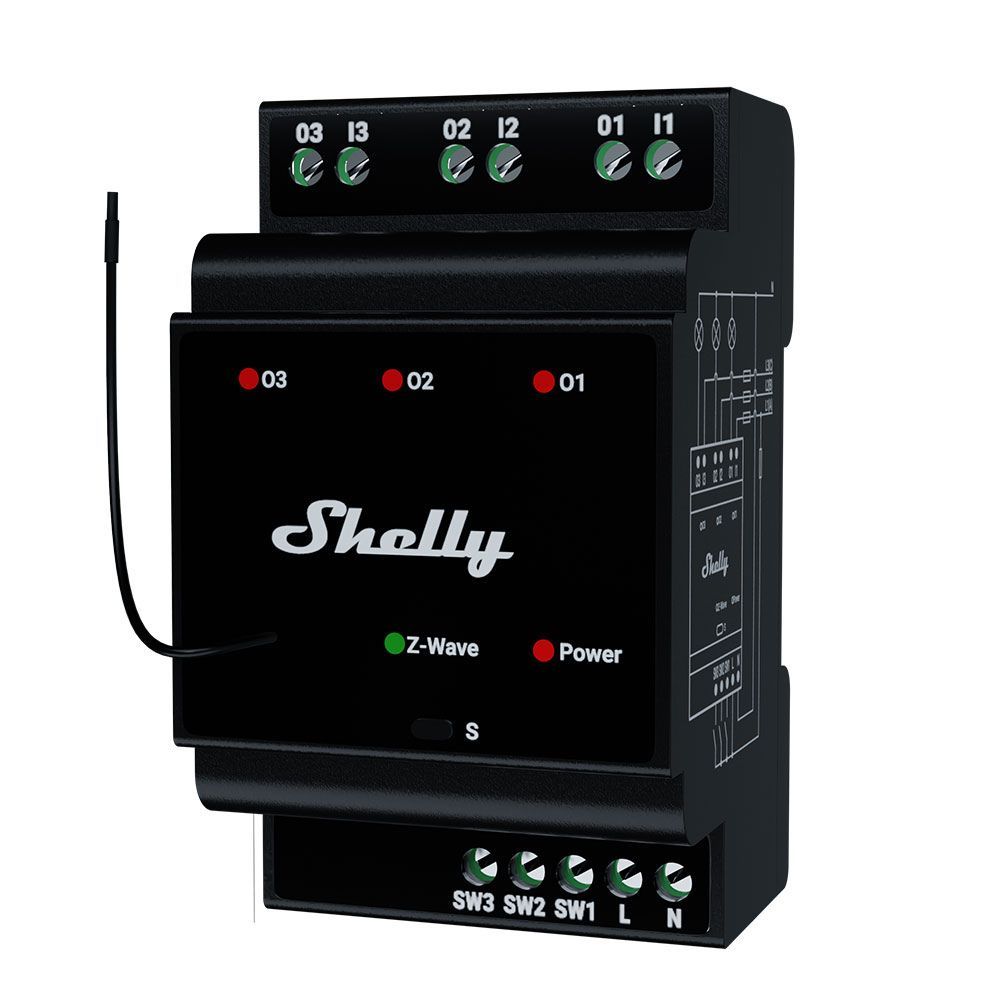

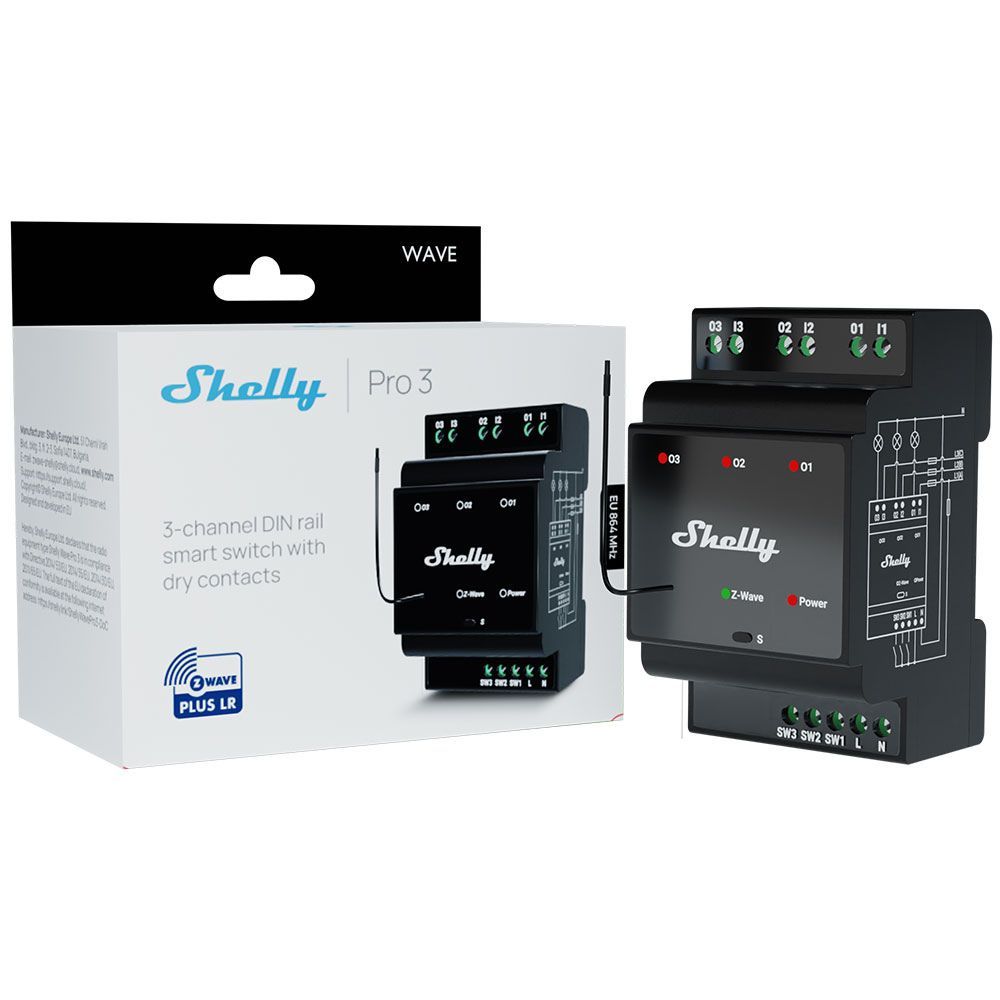

The Shelly Wave Pro 3 is a professional DIN rail module with three individually switchable relay outputs, suitable for residential and commercial Z-Wave installations. Thanks to the Z-Wave 800 chipset, the module supports both mesh networks and Z-Wave Long Range (inclusion choice).
Each output is suitable for loads up to 16 A (total 48 A) and can be operated locally via a connected wall switch or remotely via a Z-Wave gateway. The relay is potentially free and suitable for switching voltages up to 240 V AC or 30 V DC.
Supported Load Types Resistive (Ohms) Glowamp, halogen, heating appliances Capacitive
Watch this! The switch-on peak of inductive loads such as LED lighting damages the relay. Use the RC Snubber to capture this switching peak.
adjourn
- DIN rail mounting, suitable for standard group cabinet
- 3x switching output (each up to 16 A resistive, total 48 A)
- 3x switching input (230 V AC) for local operation
- Potential-free relay
- Support for Z-Wave mesh and Long Range (selectable at inclusion)
- Z-Wave 800 chipset (Z-Wave Plus v2)

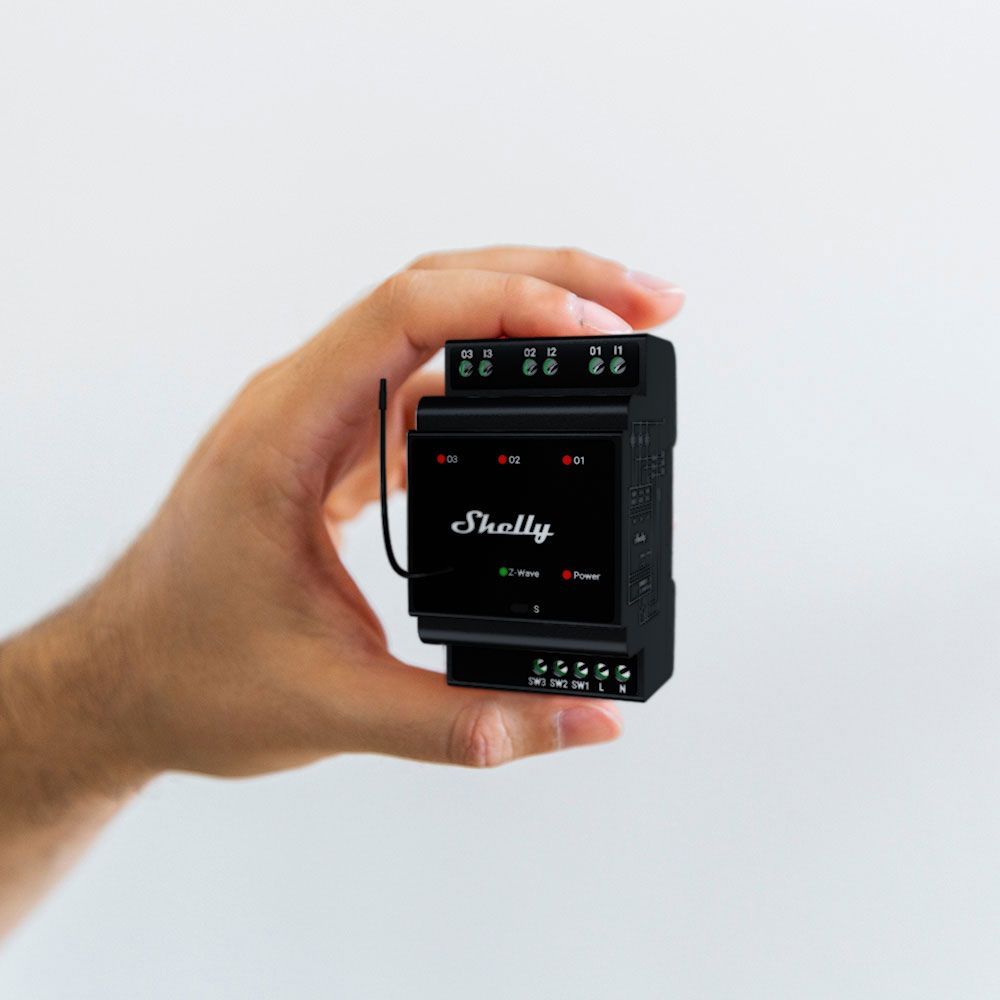

- Dimensions: 94 × 19 × 69 mm (3 DIN units wide)
