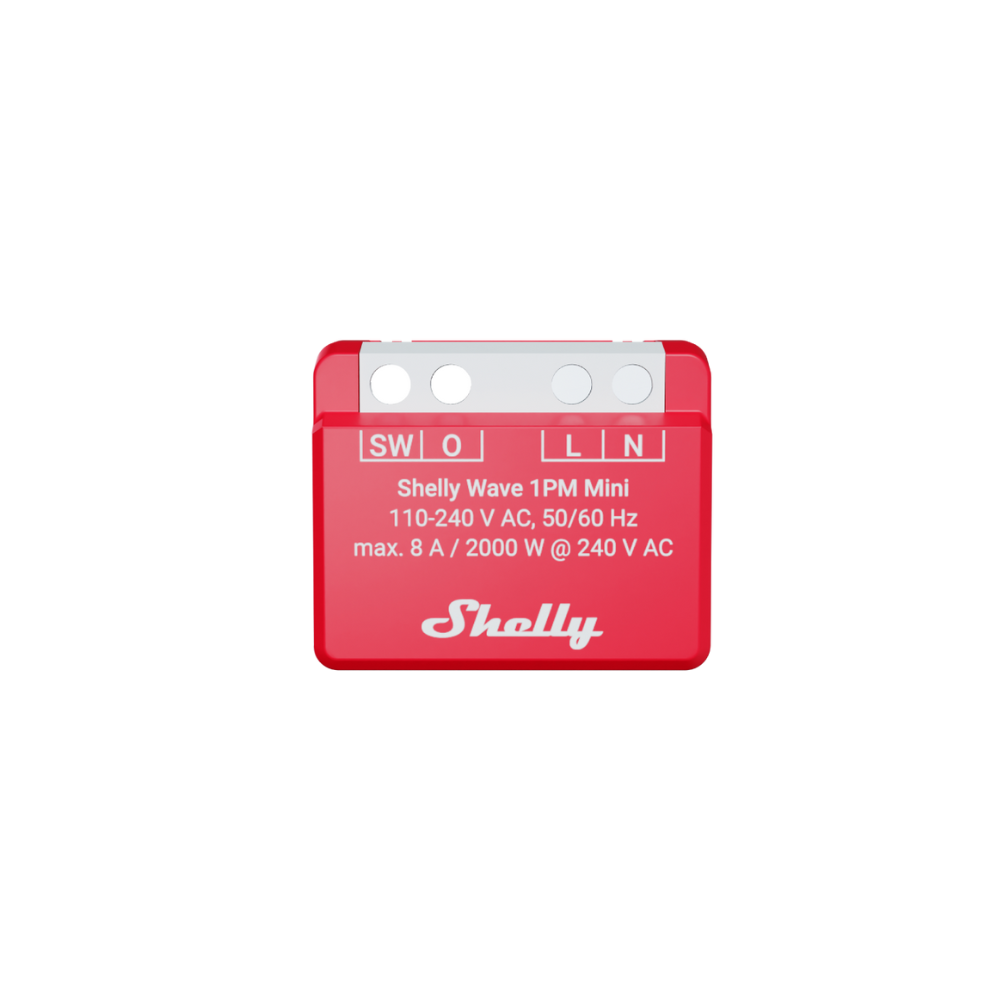

Shelly Wave 1PM Mini LR

The Shelly Wave 1PM Mini LR is a very compact Z-Wave 800 series module with one switchable contact and power metering, designed to fit behind wall switches, power outlets or in a surface-mount box. It can be used to control lighting, small appliances, garage doors or security systems. Supports both classic Z-Wave mesh and Z-Wave Long Range for extended coverage.

Features

• Power supply 230V
• Maximum load 8A / 2000 watts
• Protected against overheating
• Z-Wave 800 (mesh and Long Range) – selectable at inclusion
• S2 security (Authenticated/Unauthenticated)
• Supports over-the-air firmware updates (OTA)
• Size 29x35x16 mm
• Wire 0.5 to 1.5 mm²
