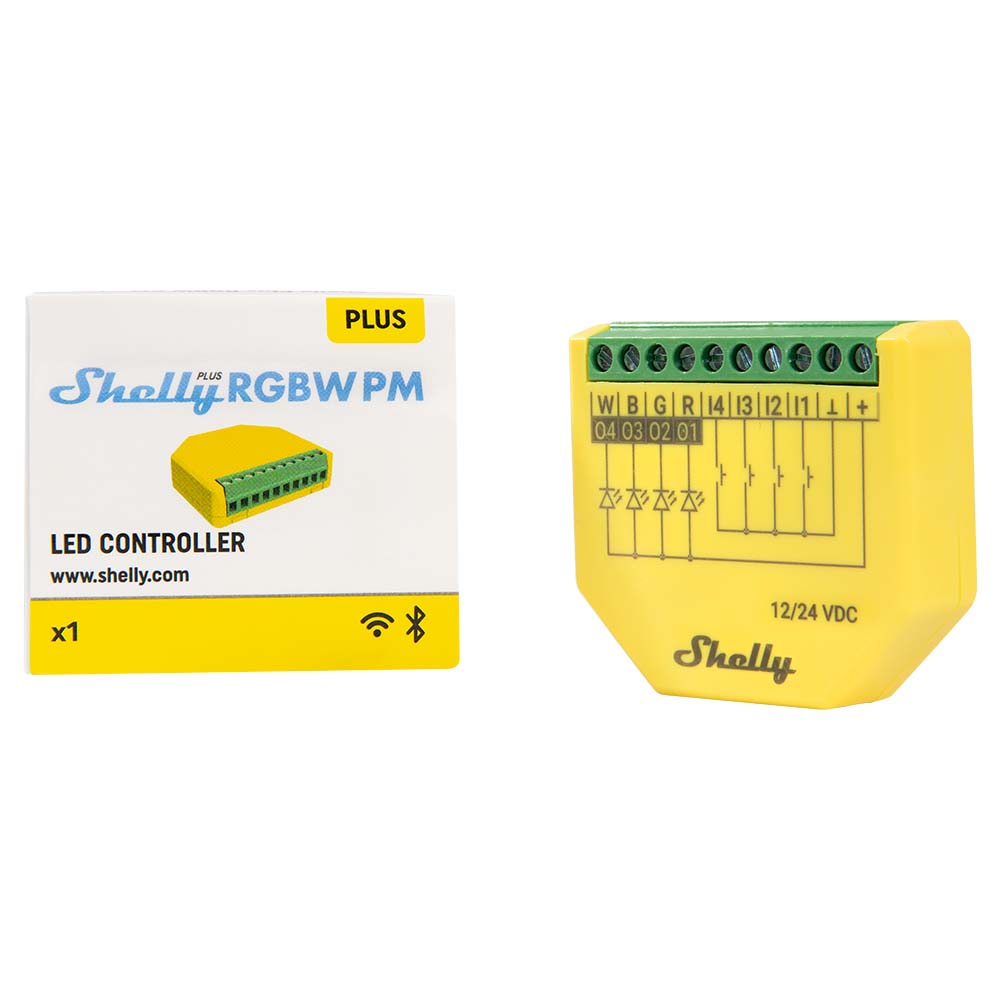

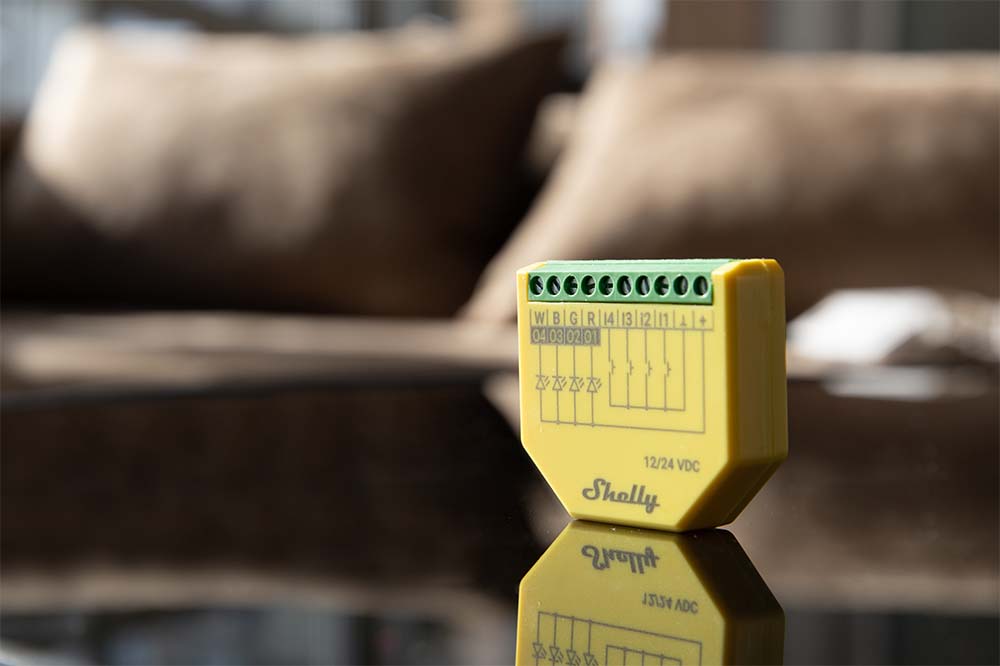

Connect your LED strips to this smart WiFi LED module with Bluetooth and control your LED strips with your smartphone. The RGBW PM supports 3 connection modes; RGB, RGBW and 4 separate light sources. The RGBWPM also has a built-in consumption monitor.
Features
- Support for White, RGB, RGBW LED strips and 12-24V LED lamps
- 12/24V DC
- Maximum 4A per channel
- Maximum total 10A
- Maximum 240W (96W per channel). < /li>
- Open source
- Works stand-alone via WiFi 2.4 Ghz
- Built-in web server
- Access Point and Client Mode
- Supports HTTP
- 4 channel 12-24VDC
- Built-in
- ESP-Shelly C38F with 4MB flash memory
- Dimensions: 42 x 37 x 12mm
