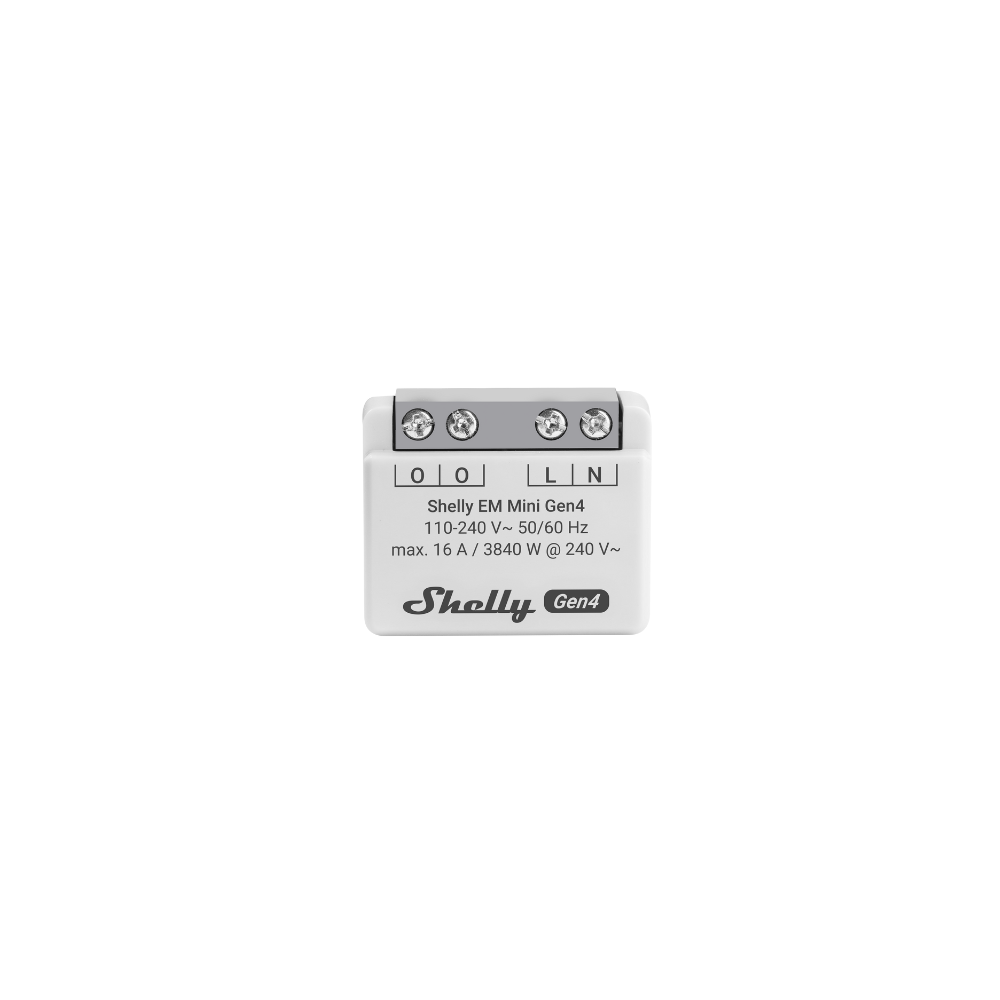

Shelly EM Mini Gen4

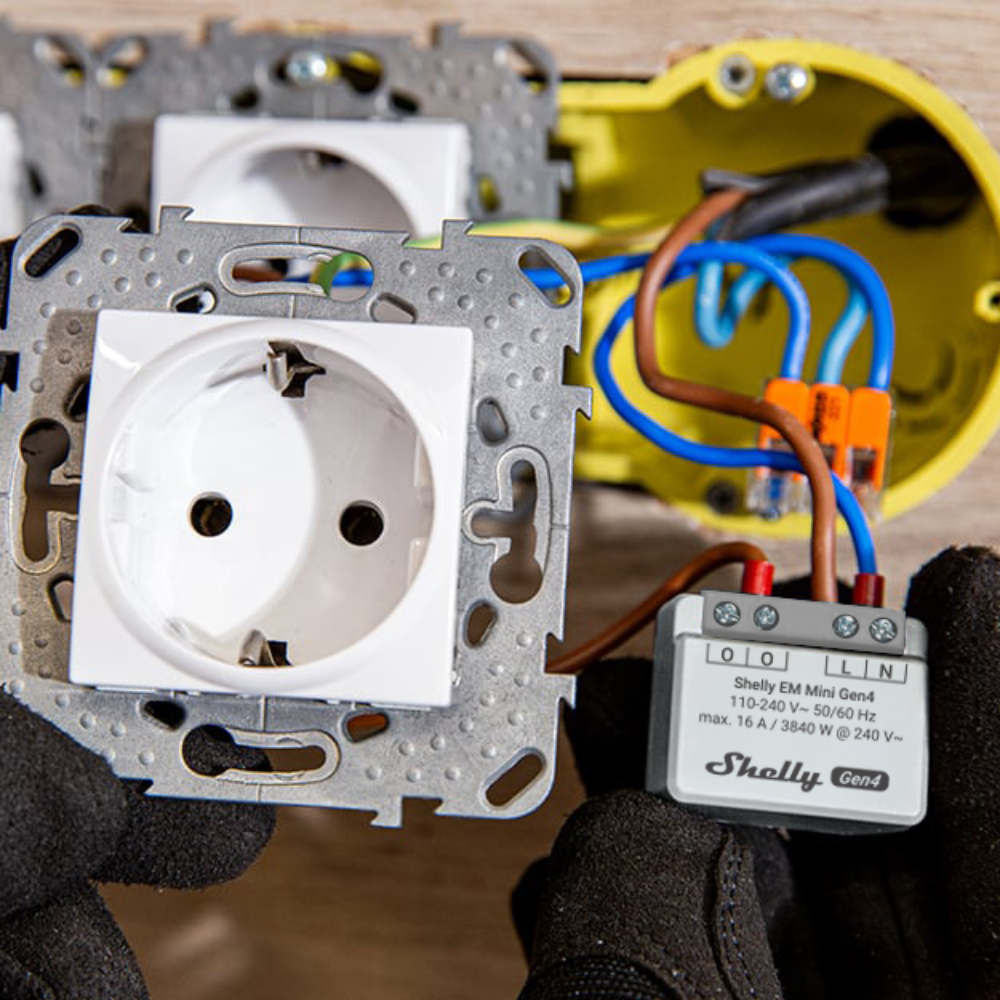

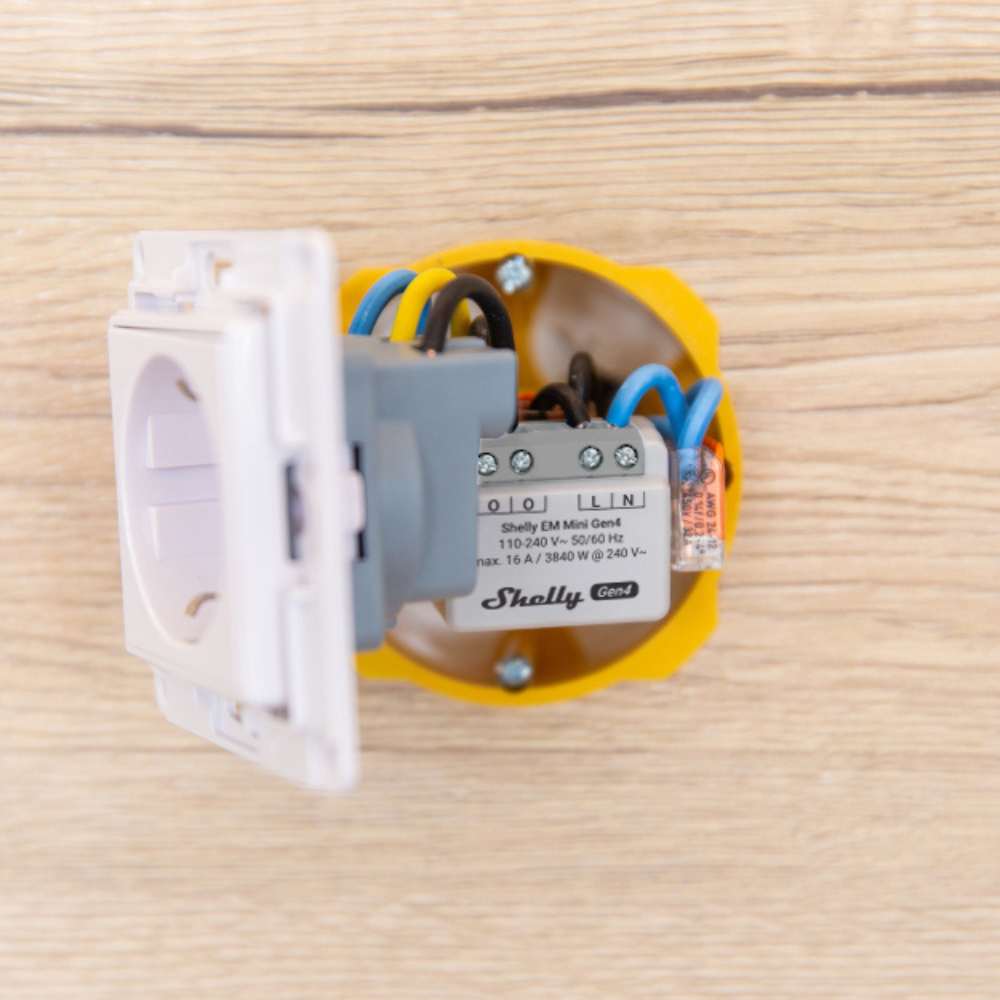

The Shelly EM Mini Gen4 is a compact energy meter that accurately records the consumption of one electrical circuit or device. Thanks to its small size, it fits easily behind sockets or in distribution cabinets with limited space. The EM Mini Gen4 supports Wi-Fi, Bluetooth and Zigbee and provides real-time monitoring of voltage, power and consumption.
With the Gen4 architecture, you can benefit from faster communication, improved security and lower energy consumption. The module can work standalone or be integrated into existing smart home systems. Ideal for installers who want to combine energy management and automation within one reliable solution.
adjourn

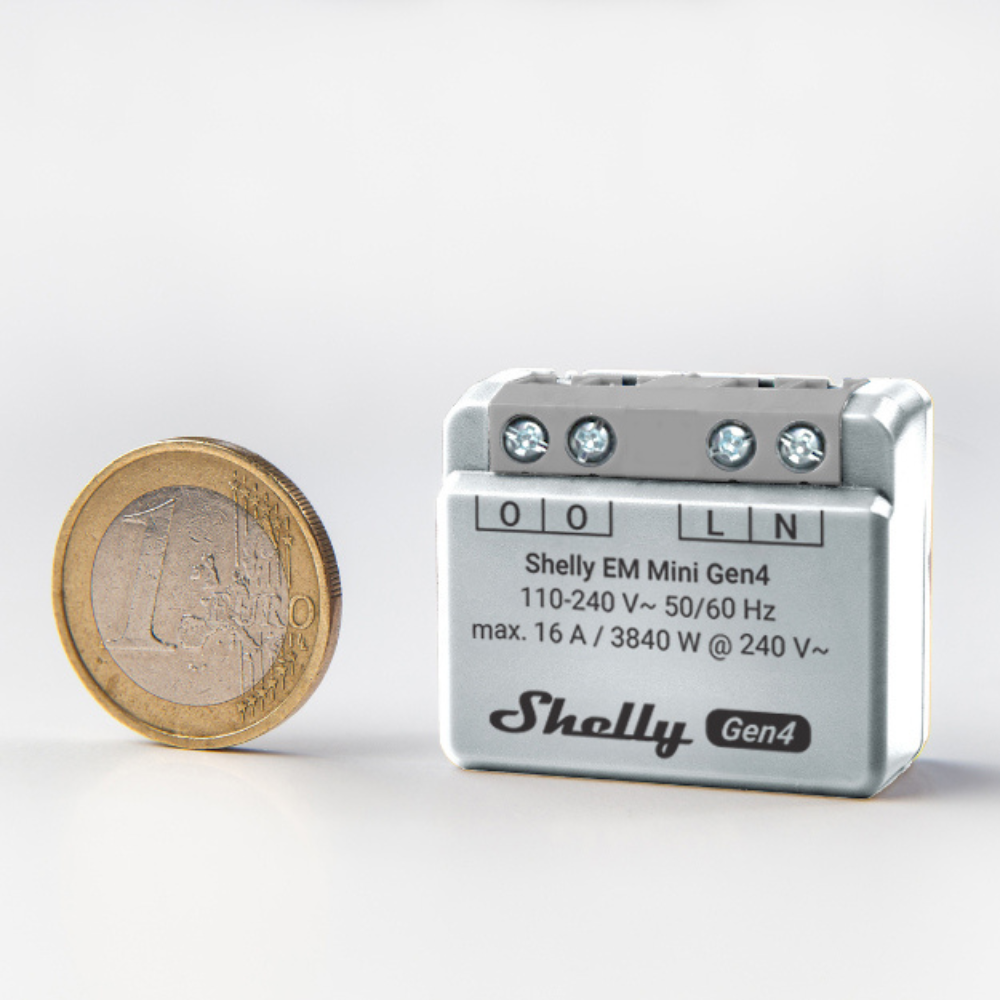

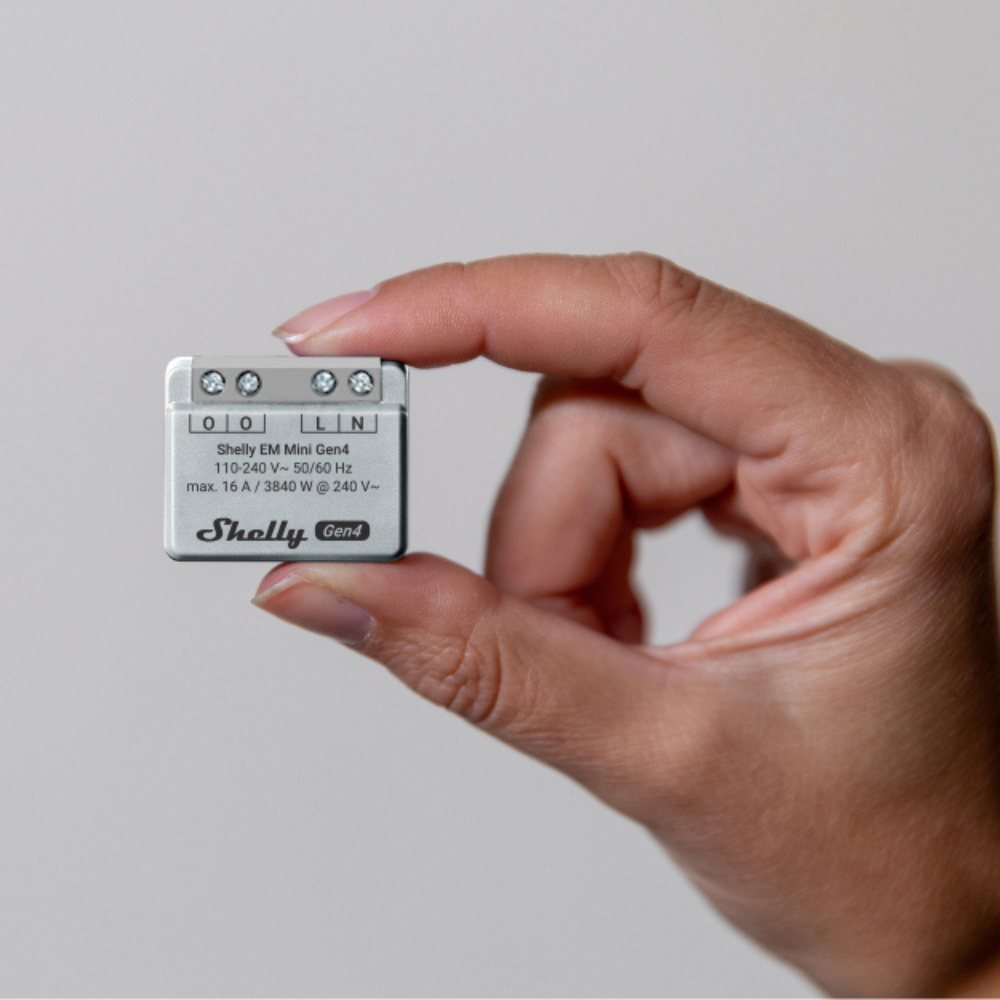

• Compact design only 29 × 34 × 16 mm
• Measurement of voltage, current and power (up to 16 A / 3840 W)
• Works via Wi-Fi, Bluetooth and Zigbee (Gen4 Series)
• Real-time energy and power measurement
• Low energy consumption (< 1 W)
• Supports local operation via web interface or MQTT
• Integration with automation platforms such as Home Assistant and Shelly Cloud
• Easy mounting with screw clamps (0,2a-2,5 mm2)
• Designed for professional energy monitoring and home automation
