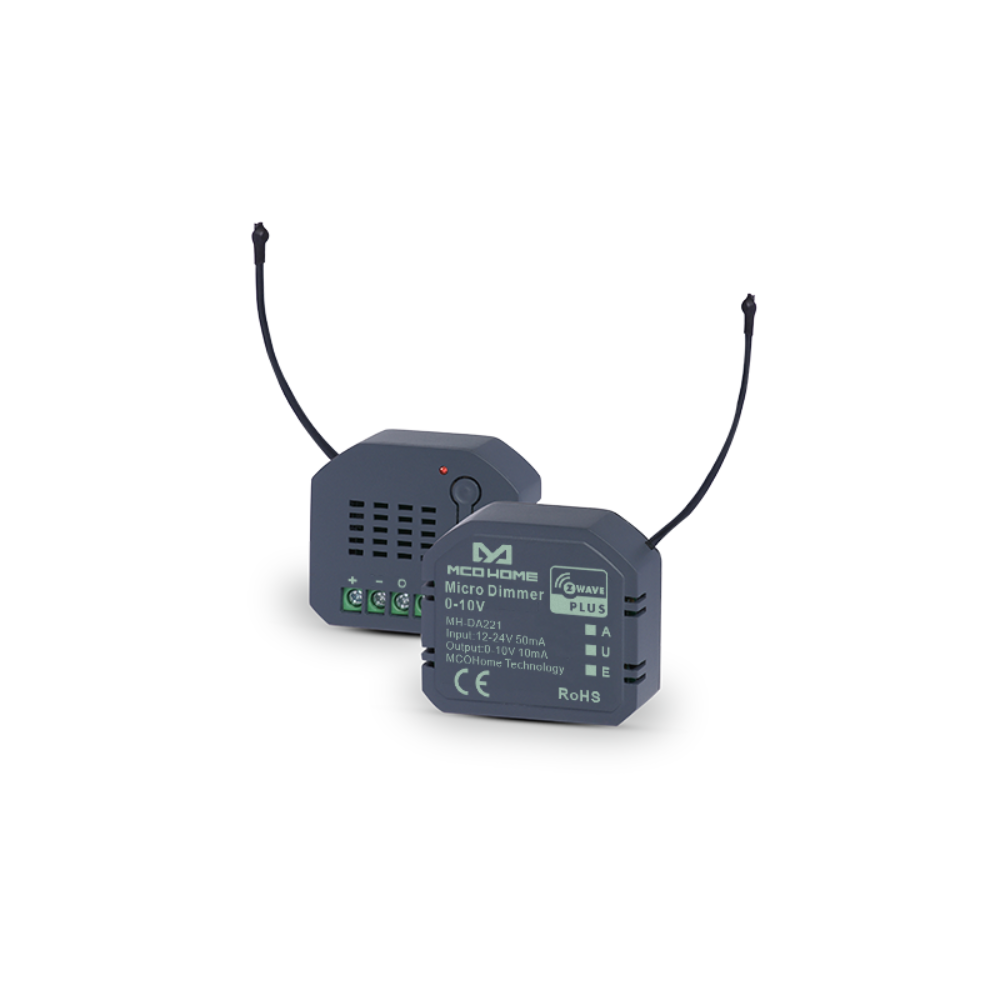

MCOHome Dimmer Module 0-10V

The MCOHome Dimmer Module 0-10V is a compact dimmer module that can be installed behind a traditional wall switch or push-button. The module offers both local control and wireless operation via Z-Wave and is suitable for various applications using 0-10V signals.
The MCOHome Dimmer Module 0-10V supports momentary/push-buttons, toggle switches and 0-10V inputs (external source required). The module can be included in any Z-Wave network and works with Z-Wave certified devices from different manufacturers.
Note: This product operates on 12–24 VDC and must not be connected to 230 V.
Features

• 0-10V output with high accuracy (<3% FS)
• Suitable for momentary push-buttons, toggle switches and 0-10V sensors
• Supports 0-10V temperature, light and general-purpose sensors
• Local and wireless control via Z-Wave
• Compact design for in-wall installation behind a switch
• Power supply: 12–24 VDC
• Power consumption: 0.5 W

Specifications

• Max. control voltage (sourcing): 0–11 VDC
• Operating temperature: −10 °C to +50 °C
• Dimensions: 44 × 38 × 17 mm (L × W × H)
