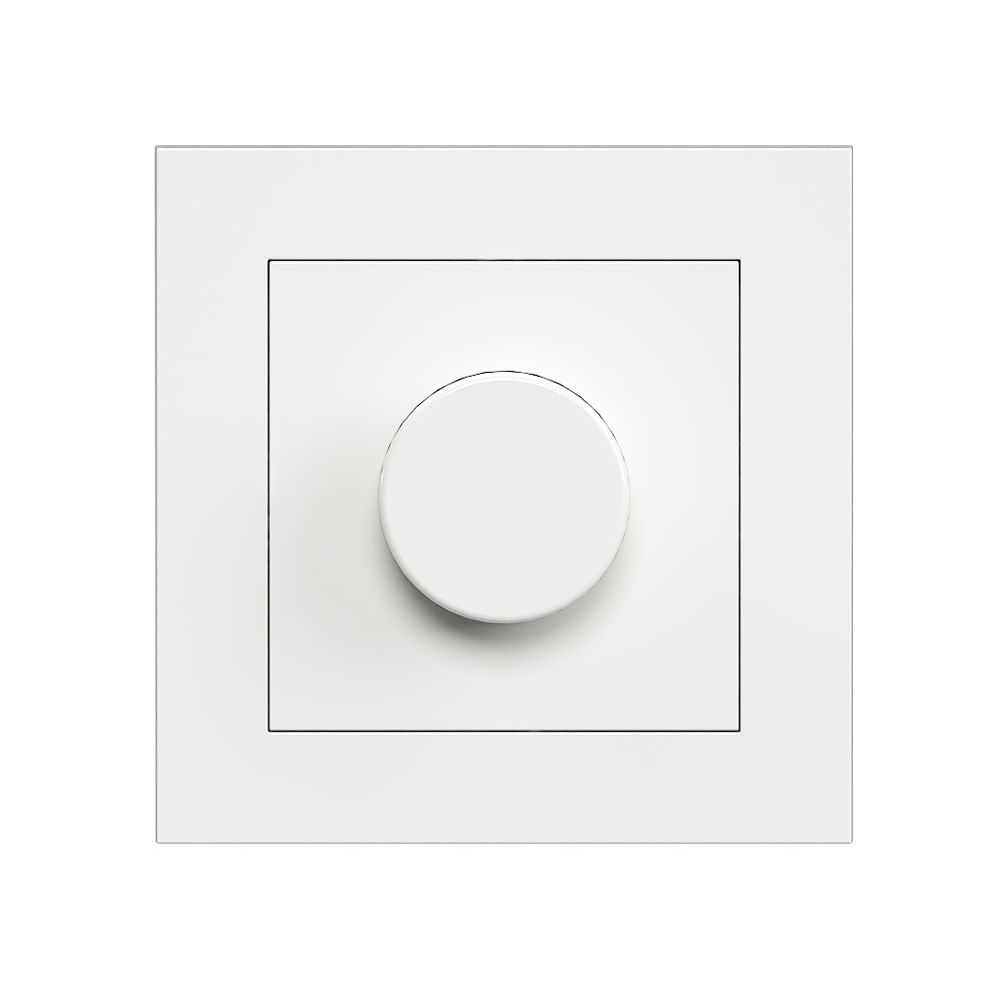

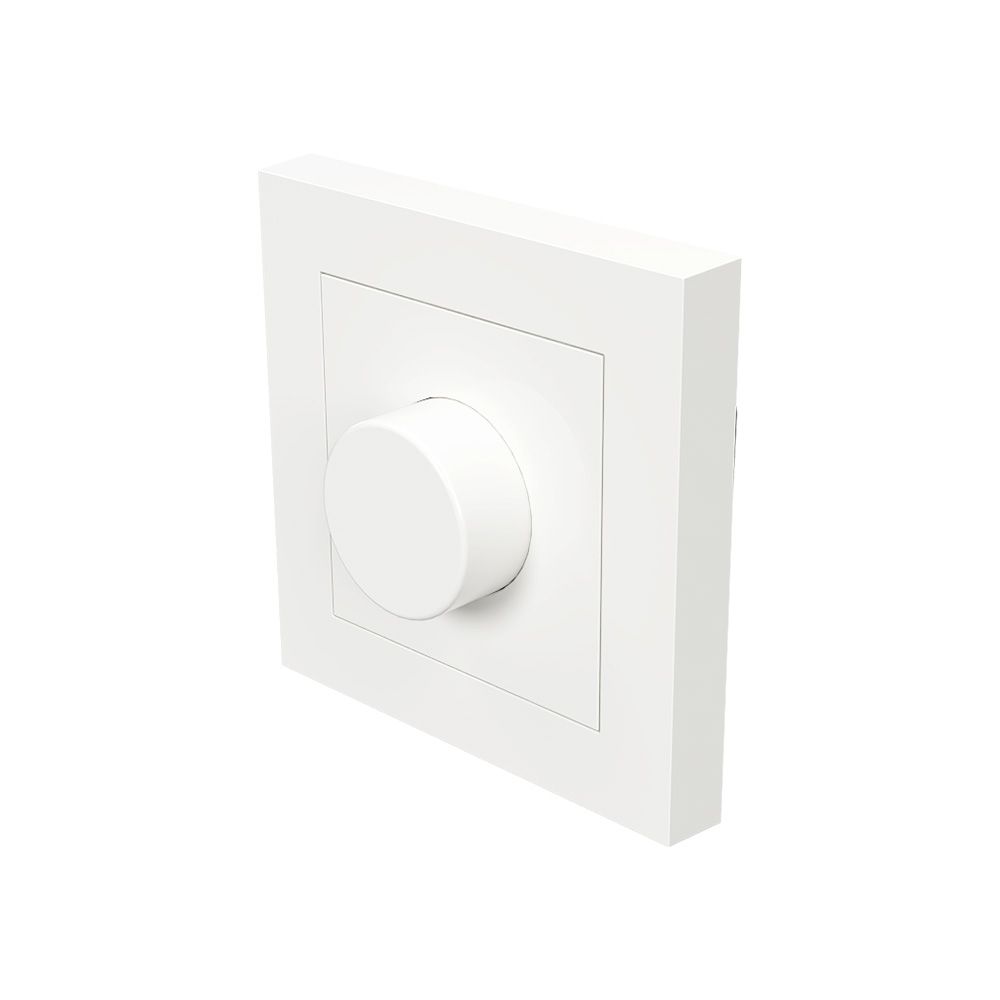

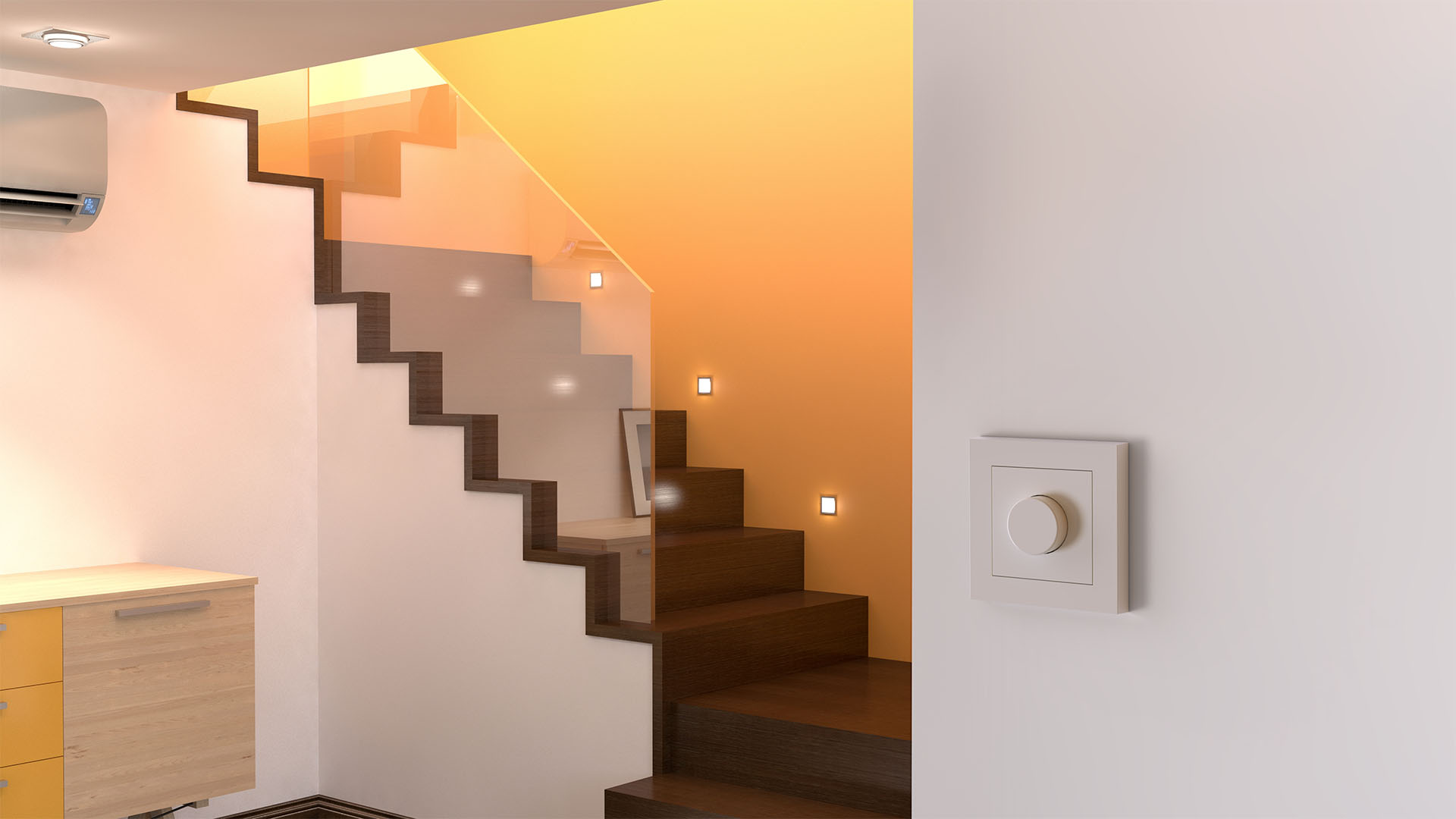

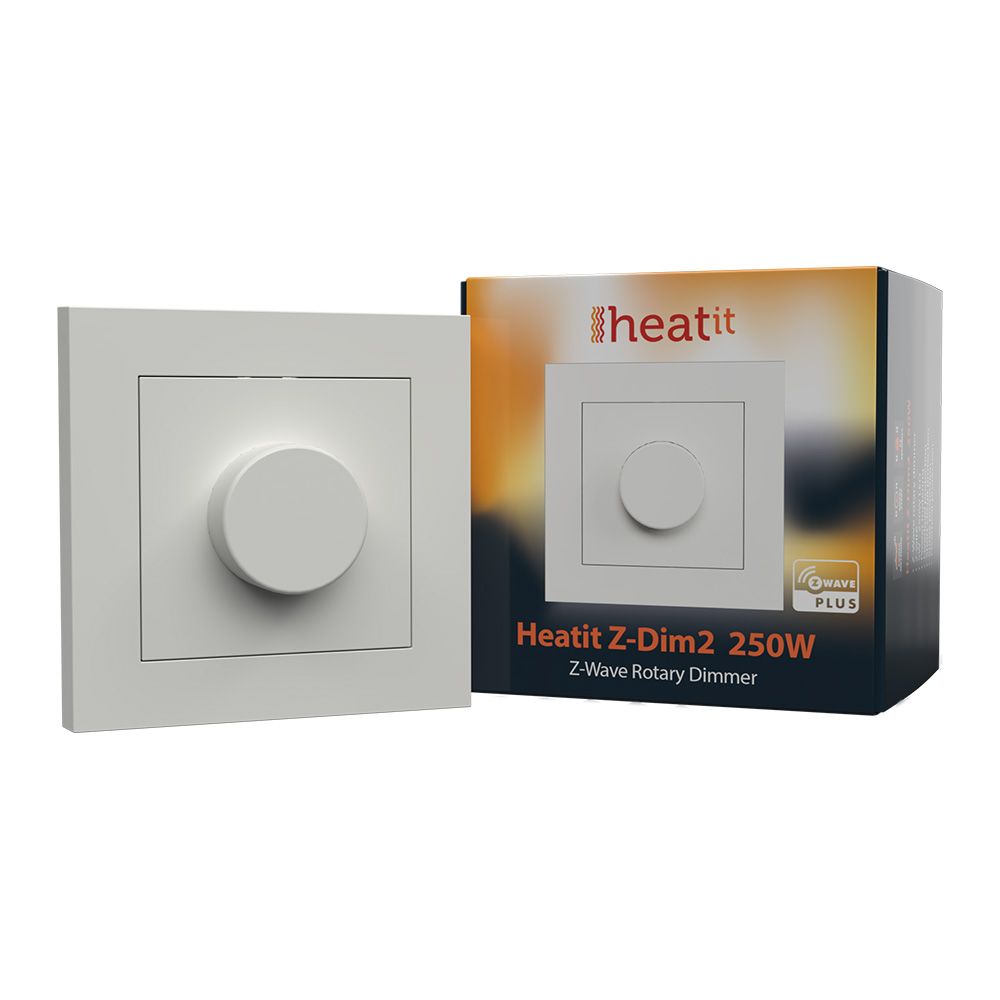

Z-Dim works with various light sources (from 1W), including: halogen and incandescent lamps, LED lighting, dimmable LED drivers and electronic transformers. The dimmer is equipped with an extra input, so that Z-Dim can easily be applied in a hallway or stairwell. The switch fits in frames of brands such as: GIRA System 55, Elko and Schneider Exxact. Z-Dim is supplied with 2 rotary switches and central plates in the colours: RAL9010 and RAL9003. Important: Heatit Z-Dim requires L + N. The connection of a light source is not required, Z-Dim can also control Z-Wave devices via association and scene activation.
Dimmers, For GIRA

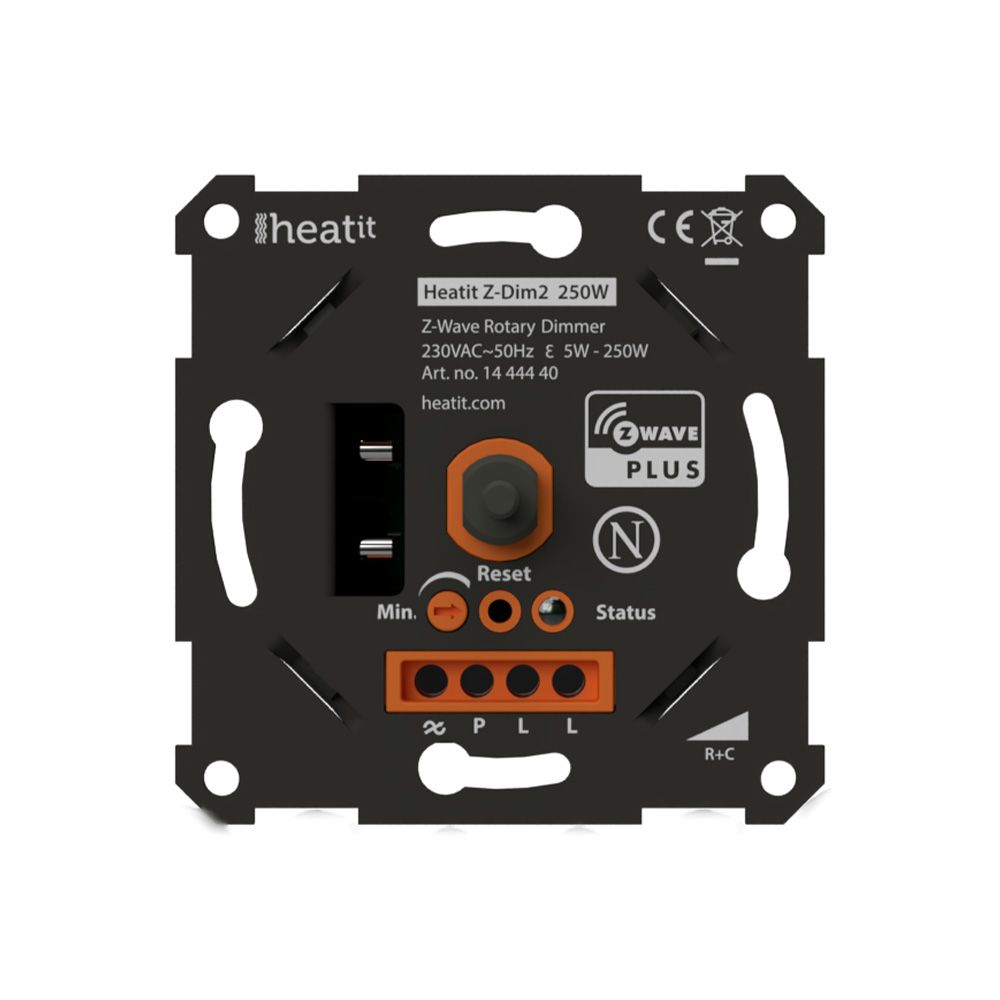

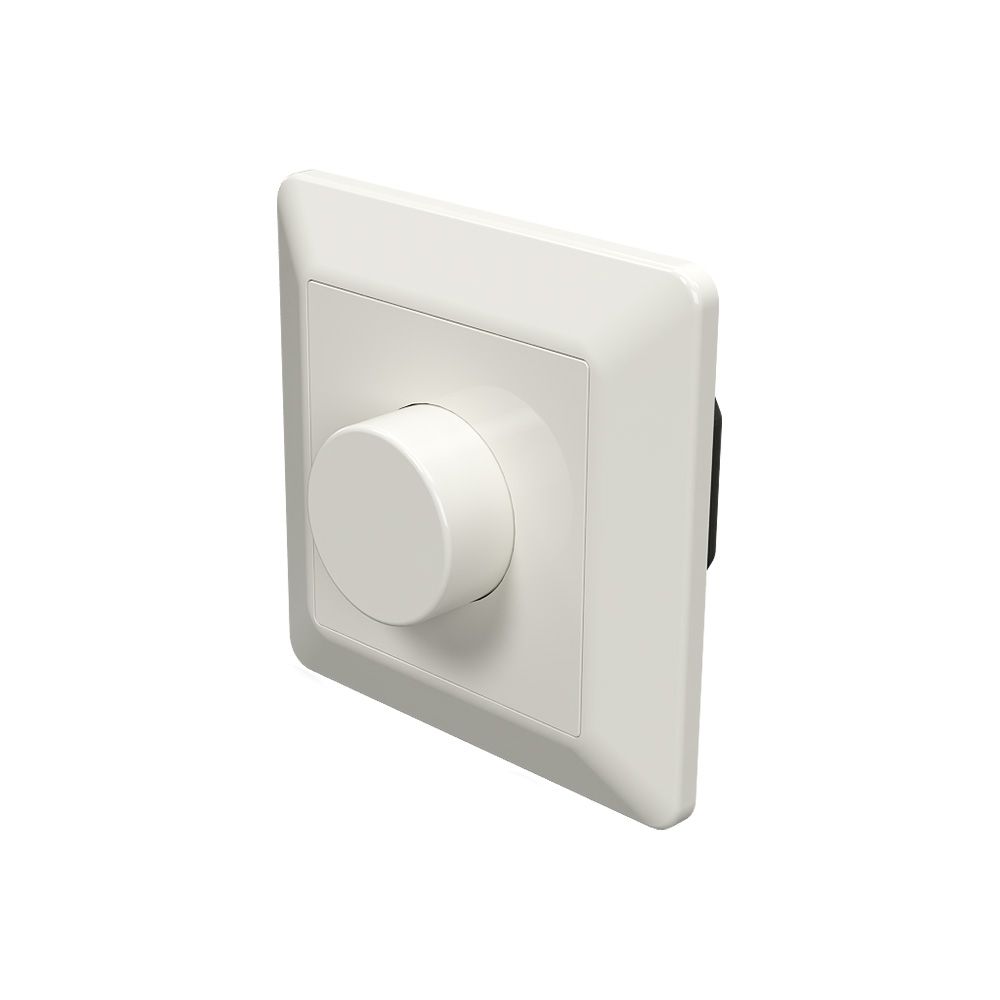

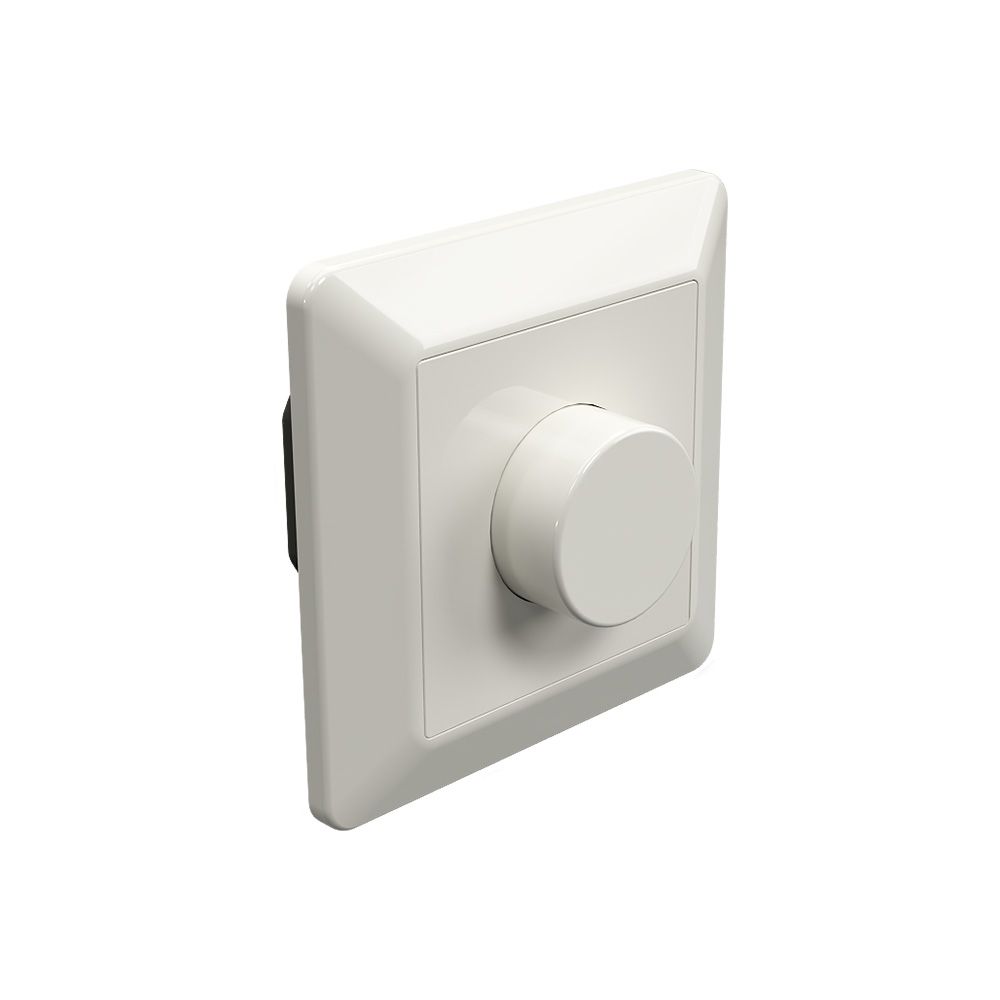

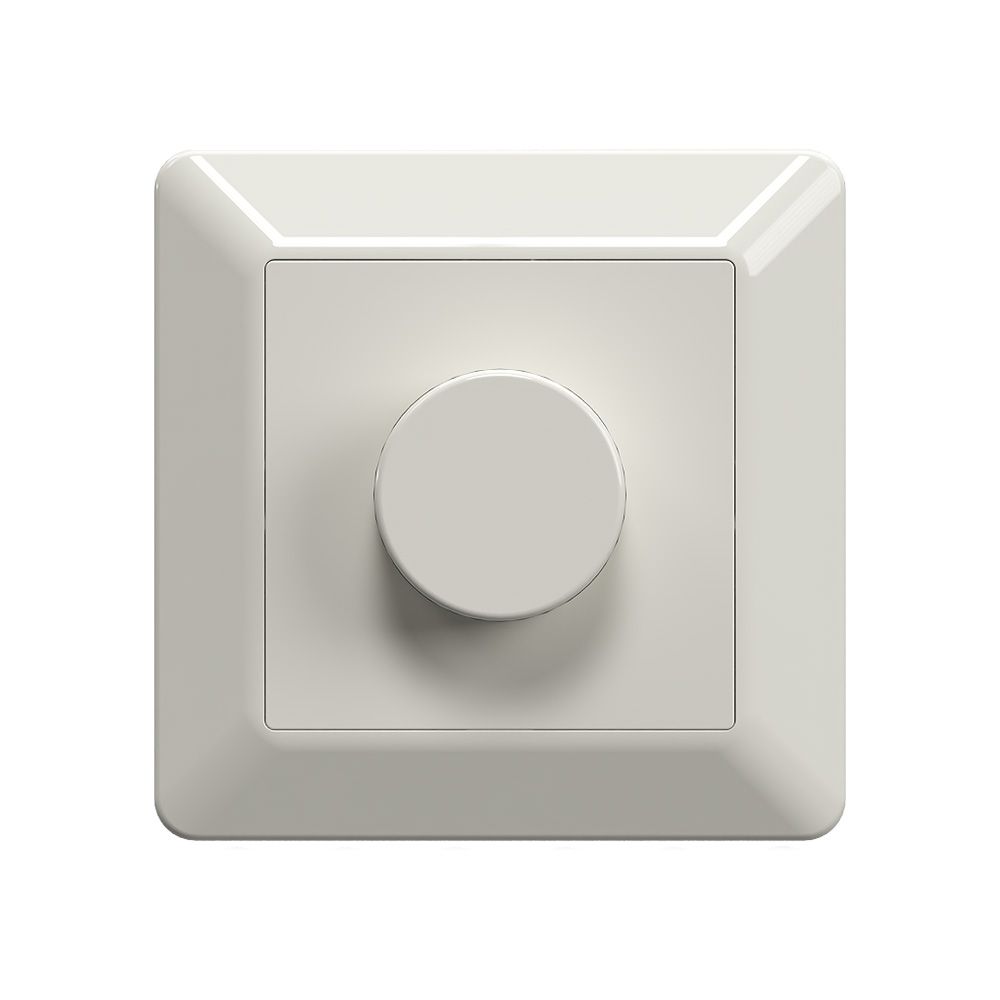

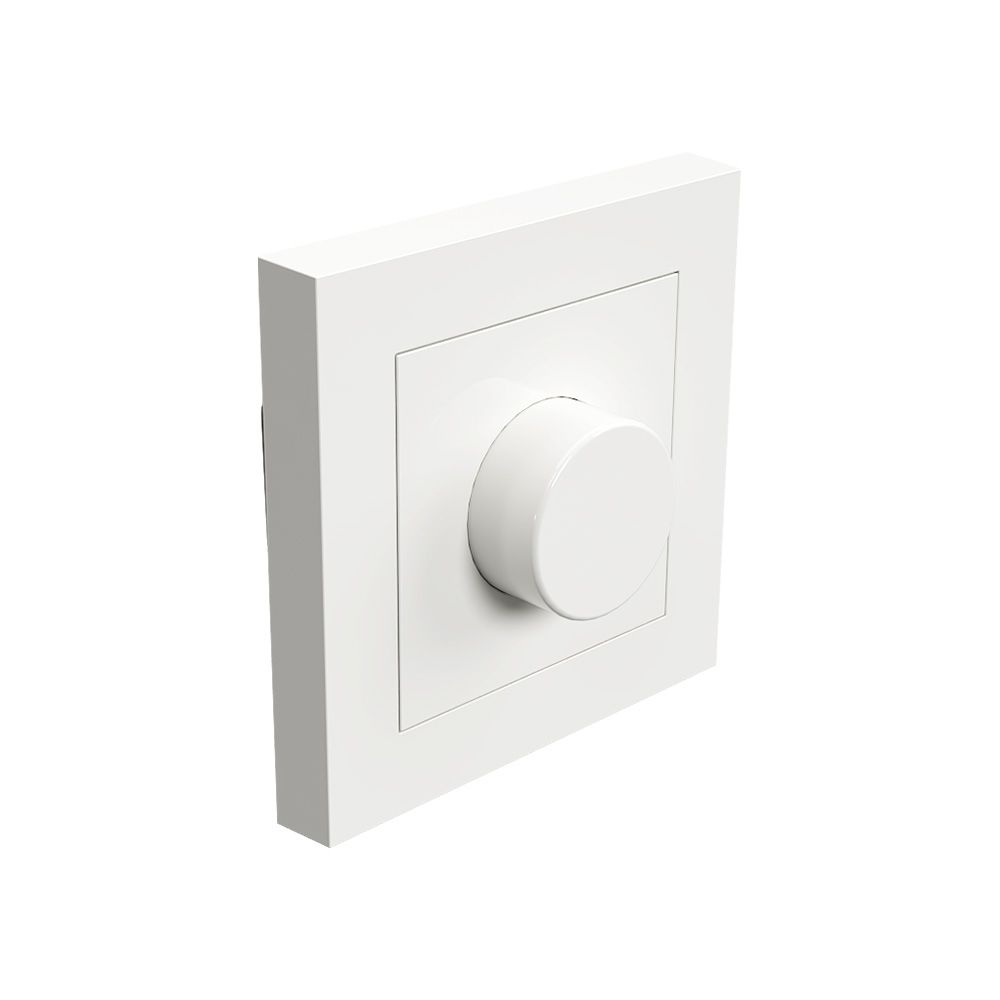

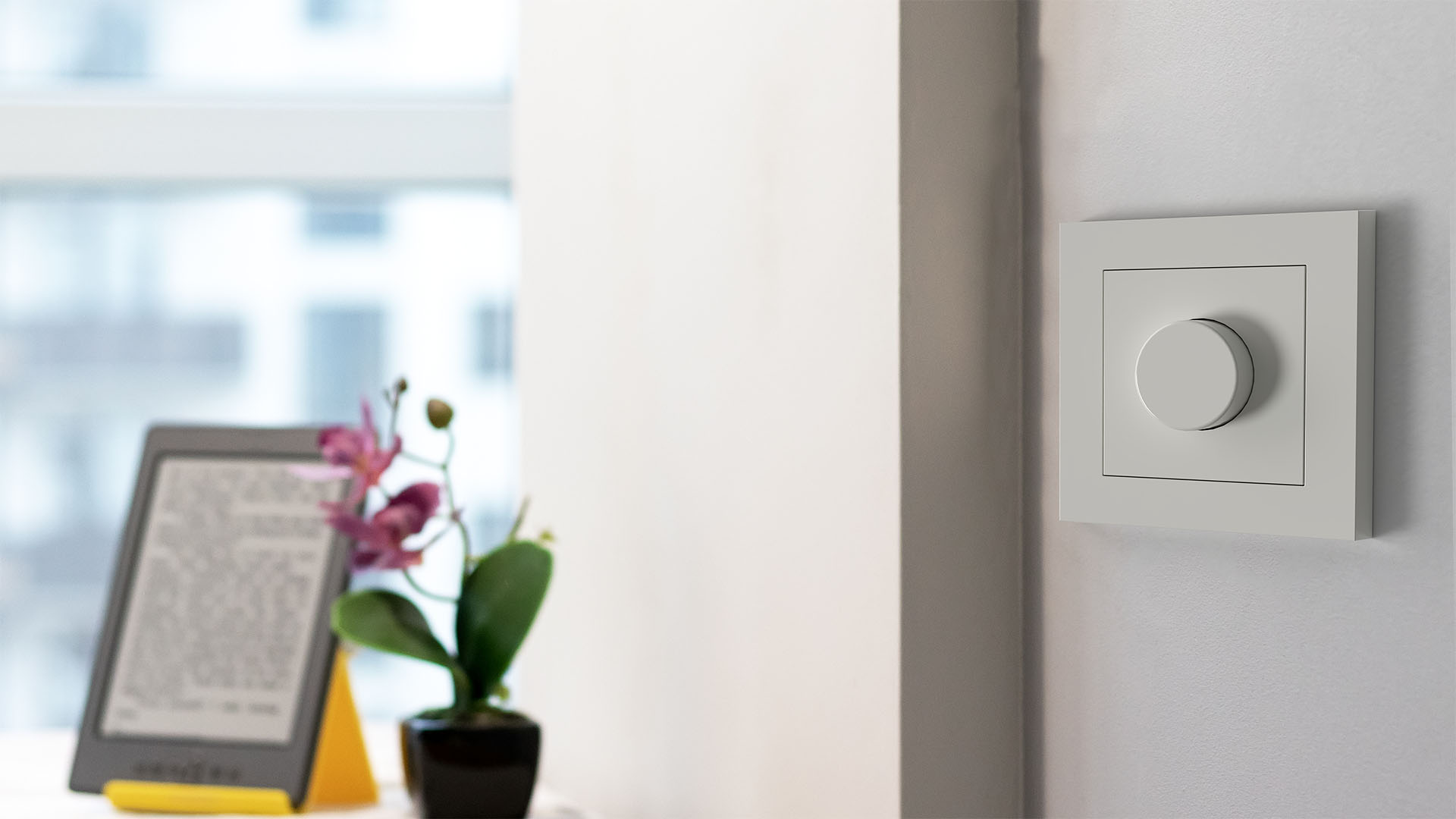

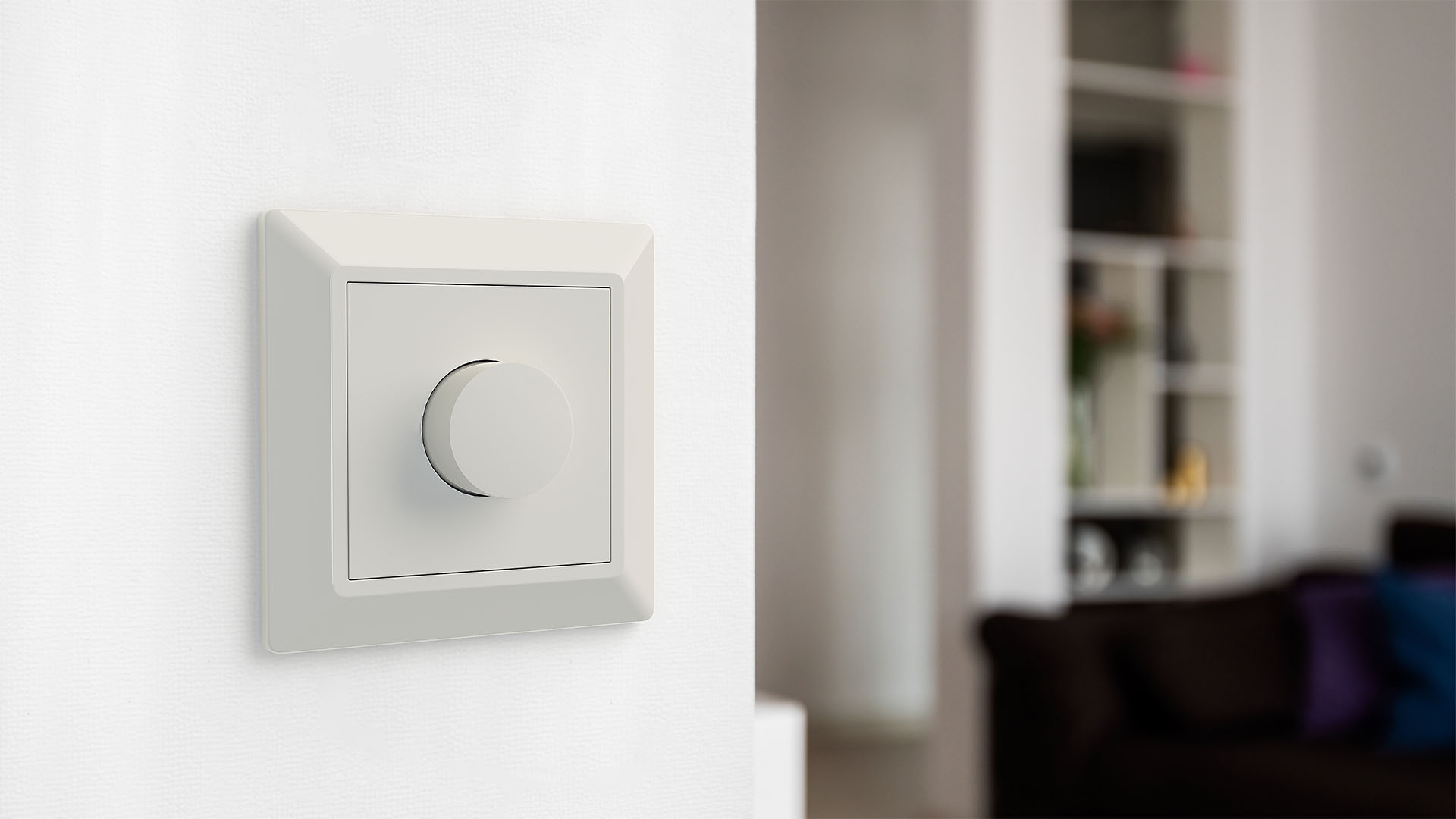

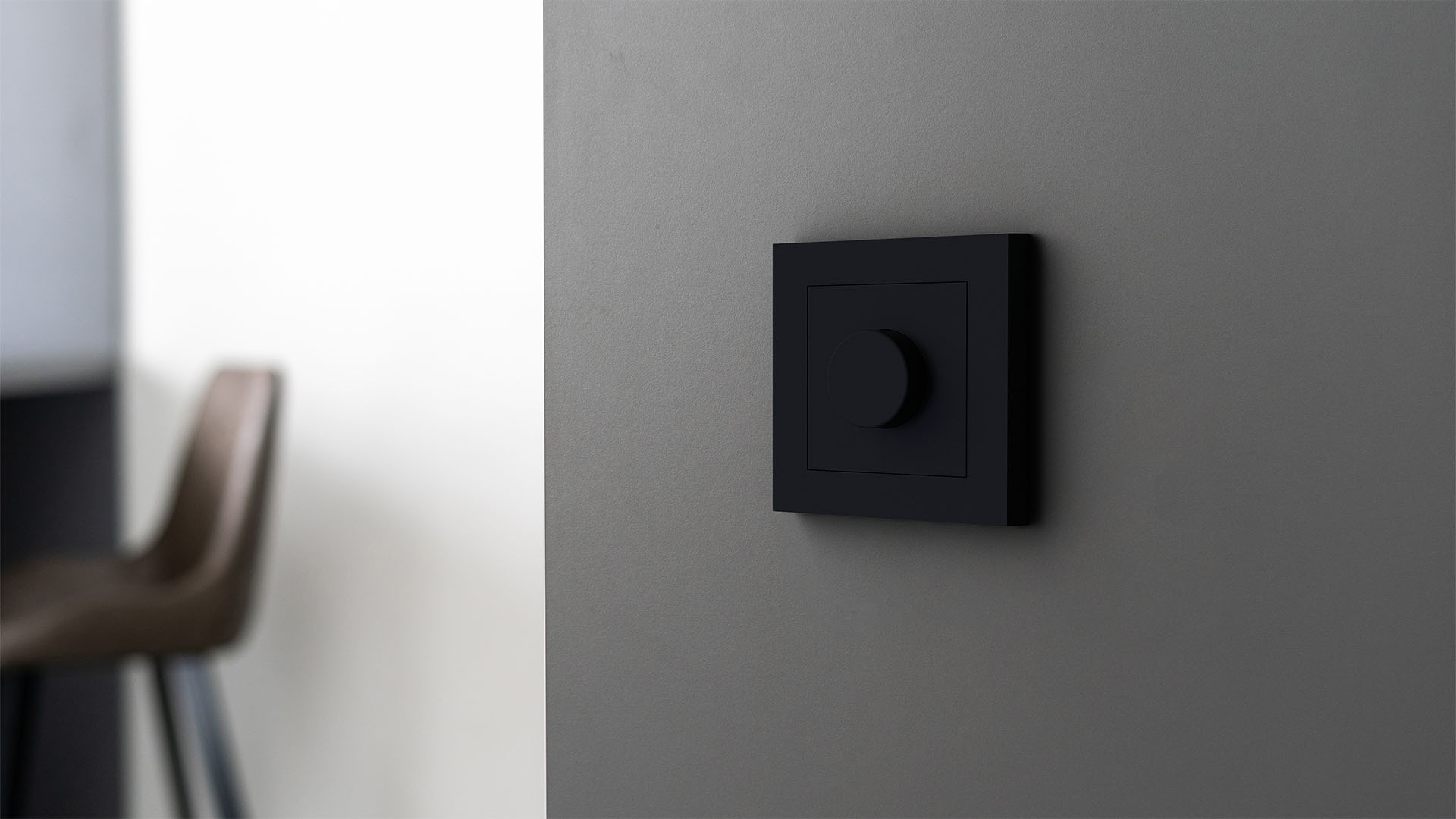

Heatit Z-Dim2
€70.68
Z-Wave rotary dimmer for many different types of light sources, fits GIRA ST55
| Active energy measurement | Yes |
|---|---|
| Actors | Dimmer |

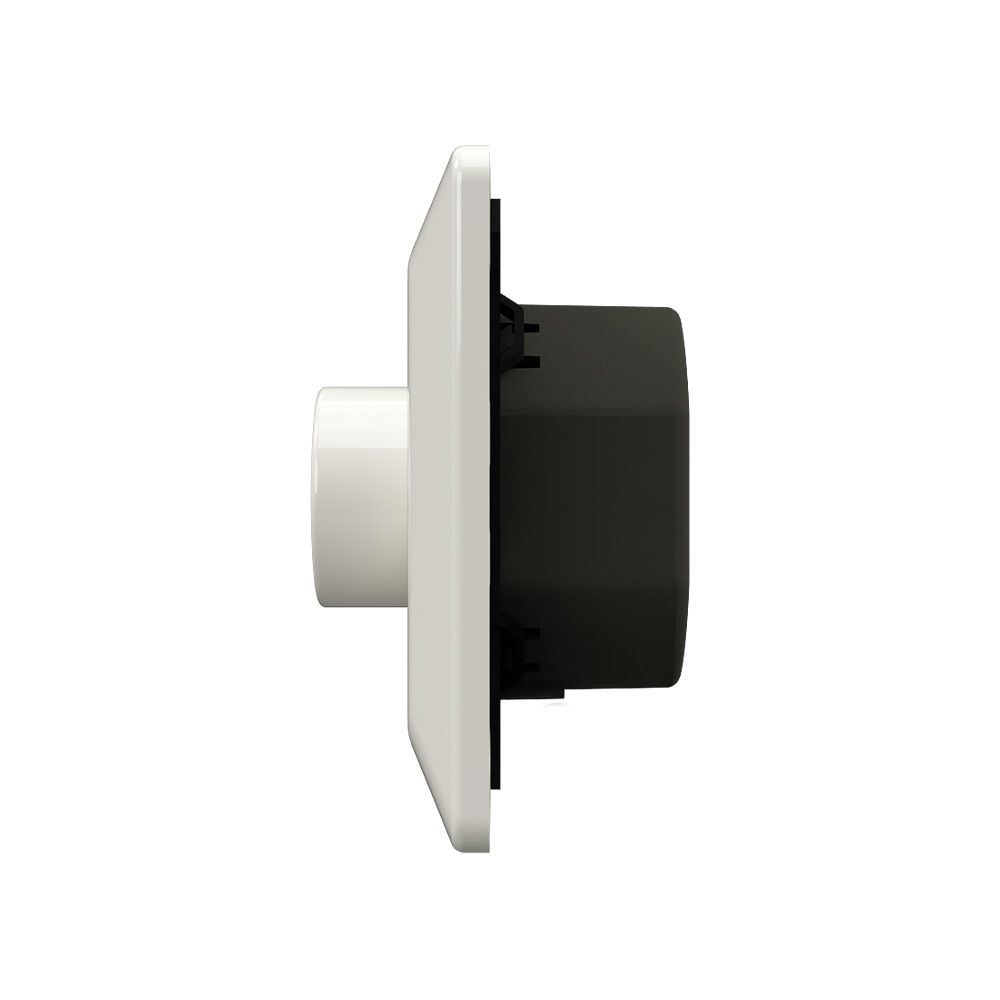

| Built-in box | Ø = 60mm, depth ≥ 30mm |
| Color | RAL 9003 , RAL 9010 |
| Communicatie & Protocol | Z-Wave |
| Compatibility switches (brand / series) | Gira System 55 |
| Dimming method | Trailing edge (fase afsnijding) |
| Installation | Input for 2-way switch |
| Power source | 230V AC 50Hz |
| Protocol | Z-Wave , Z-Wave 700 series |
| Support for Scene controller | Yes |
