FIBARO Walli Switch Unit

€64.48

SKU: FG-WDSEU221-AS-8001 Categories: , , , , Brand:

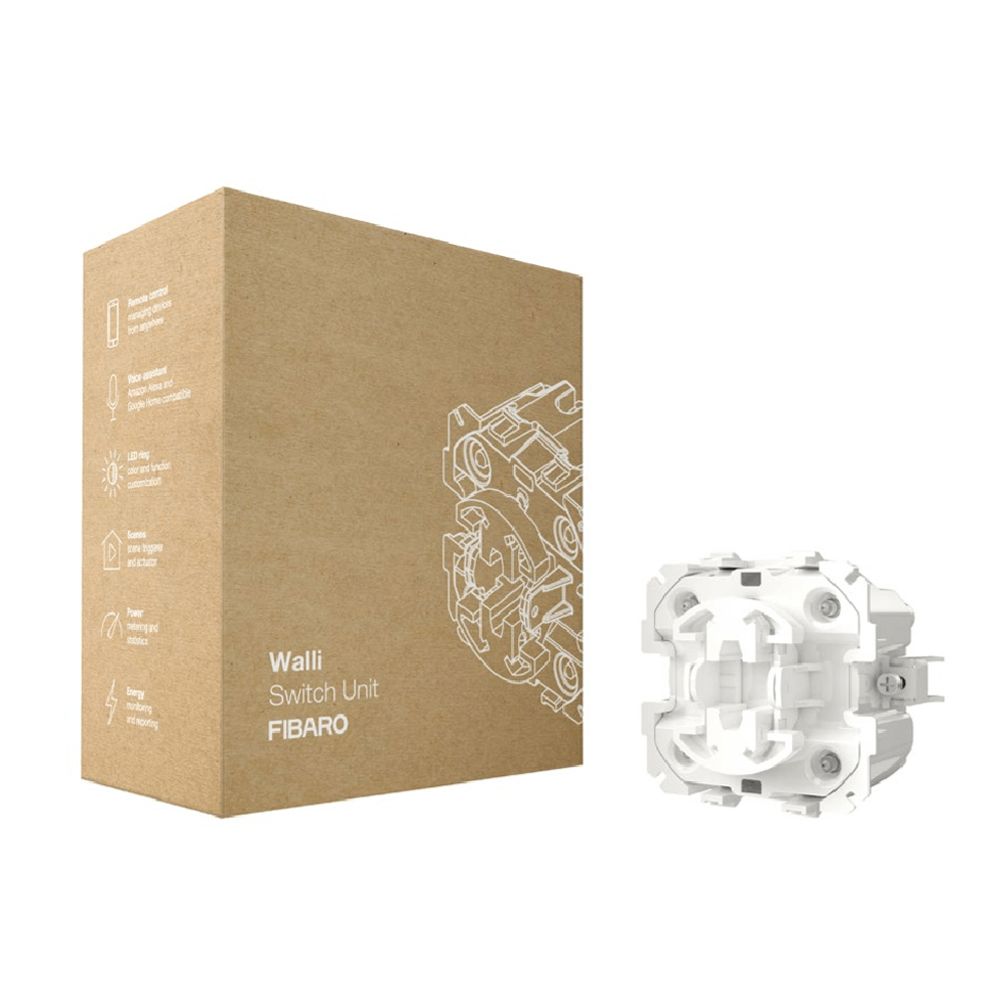

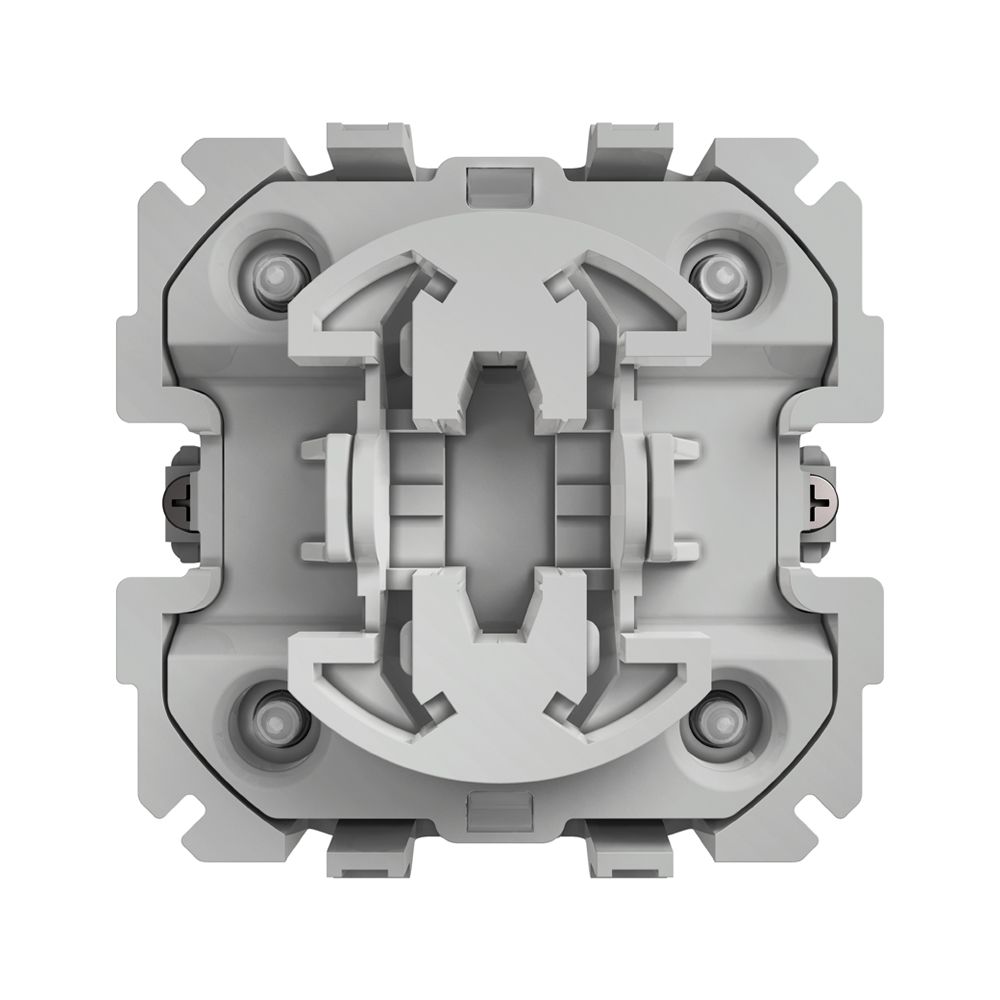

Intelligent flush-mounted module equipped with the functionalities of the FIBARO modules. Units are for use with Walli multiway frames or with other brands of switchgear. When using Walli frames, the mounting frame, the frame and the button with light guide must be ordered. A mounting frame is always required when using other brand switching material, the button adapter is also required with GIRA and Legrand cover material.Features

  • Control lighting and electrical circuits with the Walli Switch
  • Can be used as a single and double switch
  • Actively measures current and energy consumption
  • Colour of the LED ring can be adjusted to the wishes of the user
  • Notifications in case of malfunctions
  • Can be operated via voice assistants
Actors

Switch

Battery included

Yes

Built-in box

Ø = 60mm, depth ≥ 40mm

Communicatie & Protocol

Z-Wave

Compatibility switches (brand / series)

FIBARO Walli , Gira System 55 , Legrand Céliane , Schneider Odace

In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU

Installation method

Flush mount

Maximum load capacity

13A per channel 16A totally

Operating humidity

10-95% relative humidity without condensation

Power source

110-230V AC, 50/60Hz

Protocol

Z-Wave

Supported load types

incandescent lamps fluorescent lamps electronic transformers ferromagnetic transformers LED

Transmit power

+6 dBm
