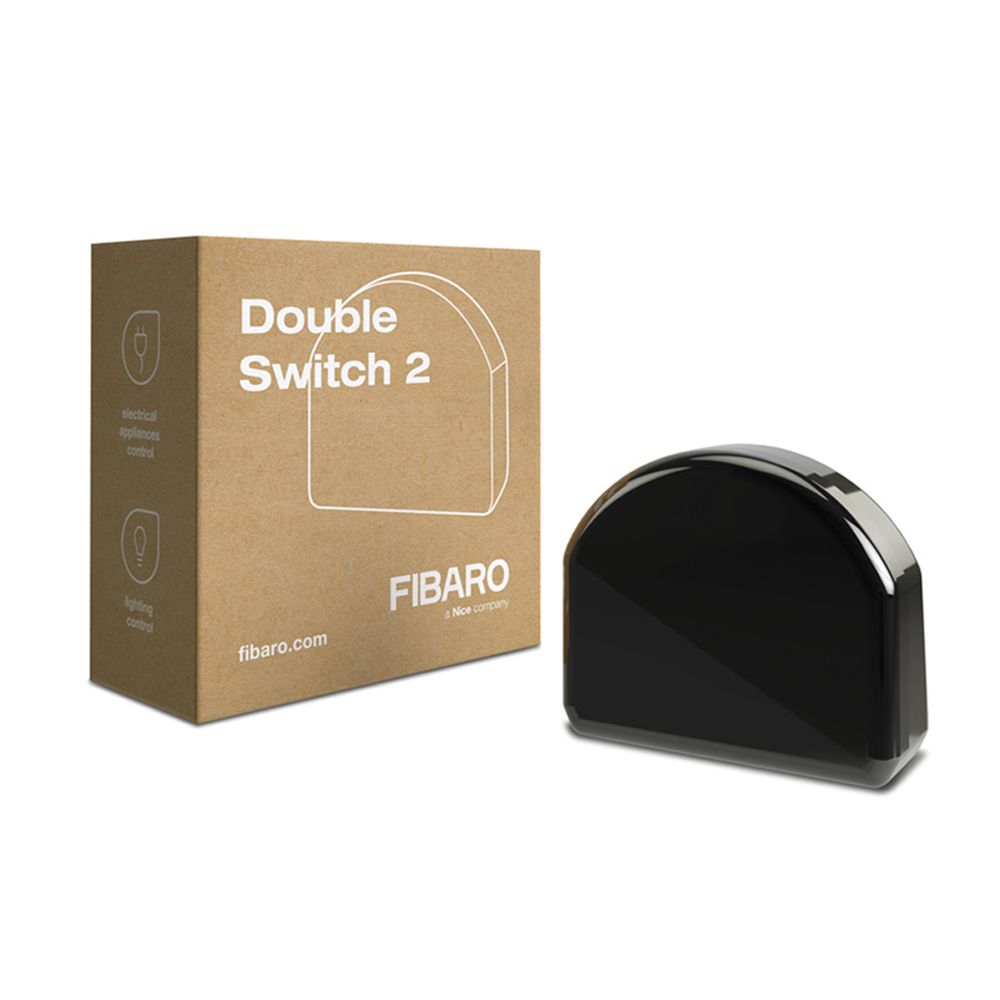

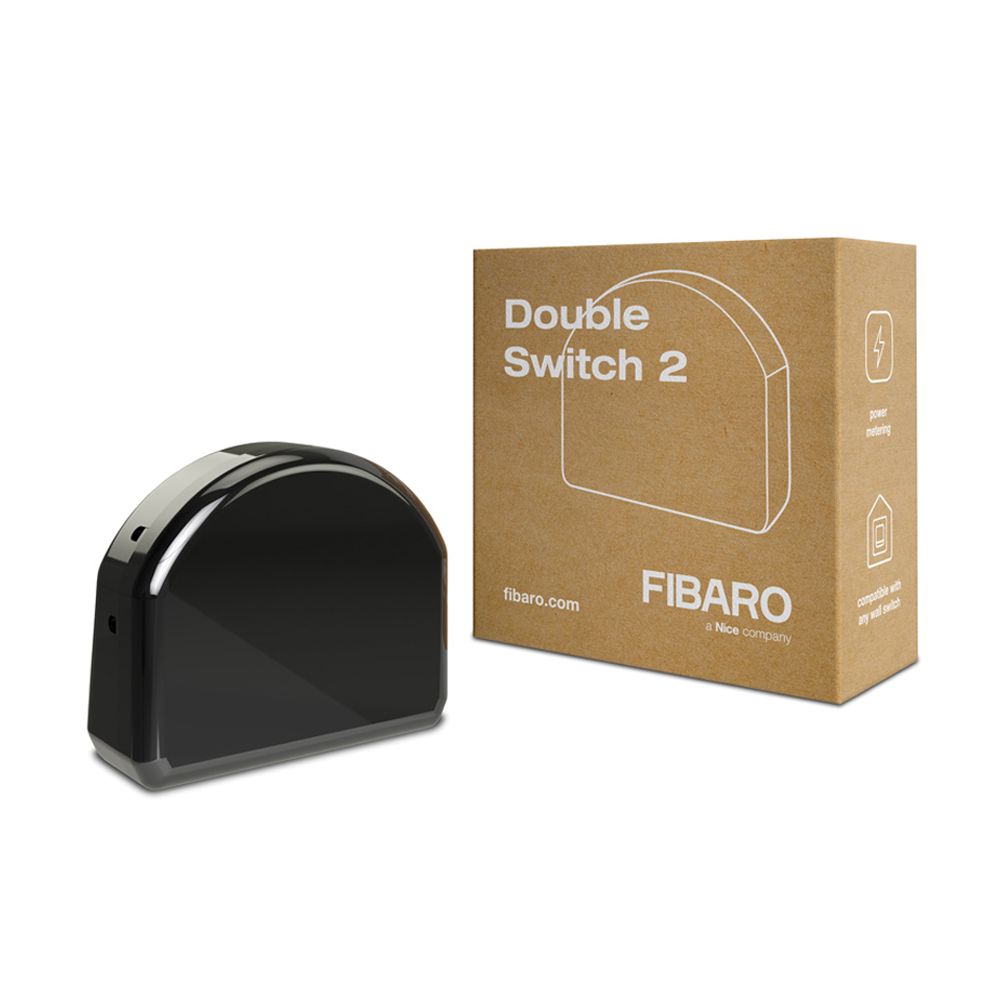

FIBARO Double Switch 2

€81.84

Compact Z-Wave module for on/off switching of electrical circuits.

SKU: FGS-223 ZW5 Category: Brand:

The FIBARO Double Switch 2 is a flush mount module to switch two electrical devices on/off and measure their energy consumption. The flush mount module is one of the smallest in the world and can be used behind a wall socket or in a flush mounting box. The FIBARO Double Switch 2 has a maximum load of 2x 1500W. The module is also equipped with various protections such as protection against overheating and overload.Features

  • Can be used as a stand-alone switch without intelligent functions
  • Control two lamps or electrical circuits via Z-Wave and the switch
  • Works with different types of switches
  • Actively measures energy consumption
  • A phase and neutral wire are required for installation
Actors

Switch
Battery included

Yes
Communicatie & Protocol

Z-Wave
Dimensions Product

42.5 x 38.25 x 20.3 mm
In accordance with guidelines

RED 2014/53/EU RoHS 2011/65/EU
Inputs

2
Installation method

Flush mount
Maximum load capacity

6.5A per channel 10A totally
Operating temperature

0-35 °C
Power source

100-240V AC, 50/60Hz
Protocol

Z-Wave , Z-Wave (500 series chip)
Radio frequency

868.0–868.6MHz 869.7–870.0MHz
Range

outdoor up to 50m indoors up to 40m (Depending on terrain and building construction)
Supported load types

Resistive
Transmit power

+6 dBm
