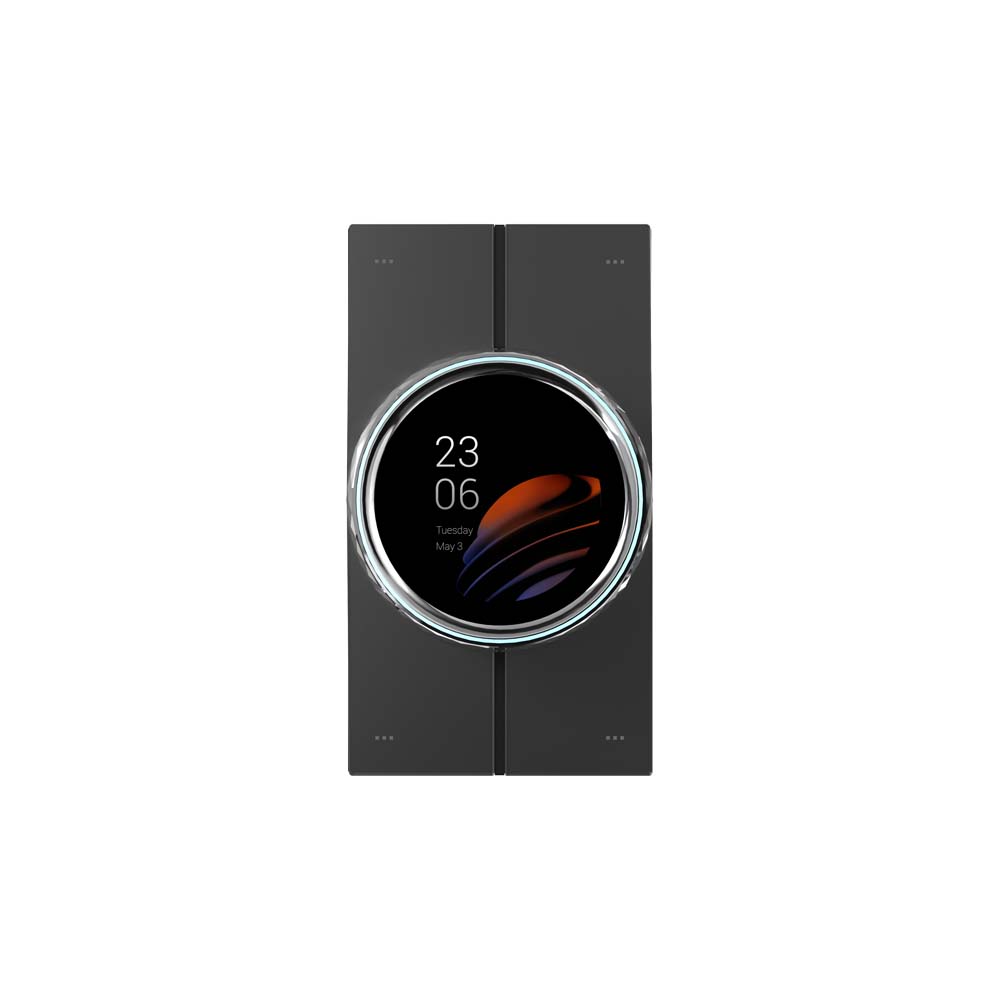

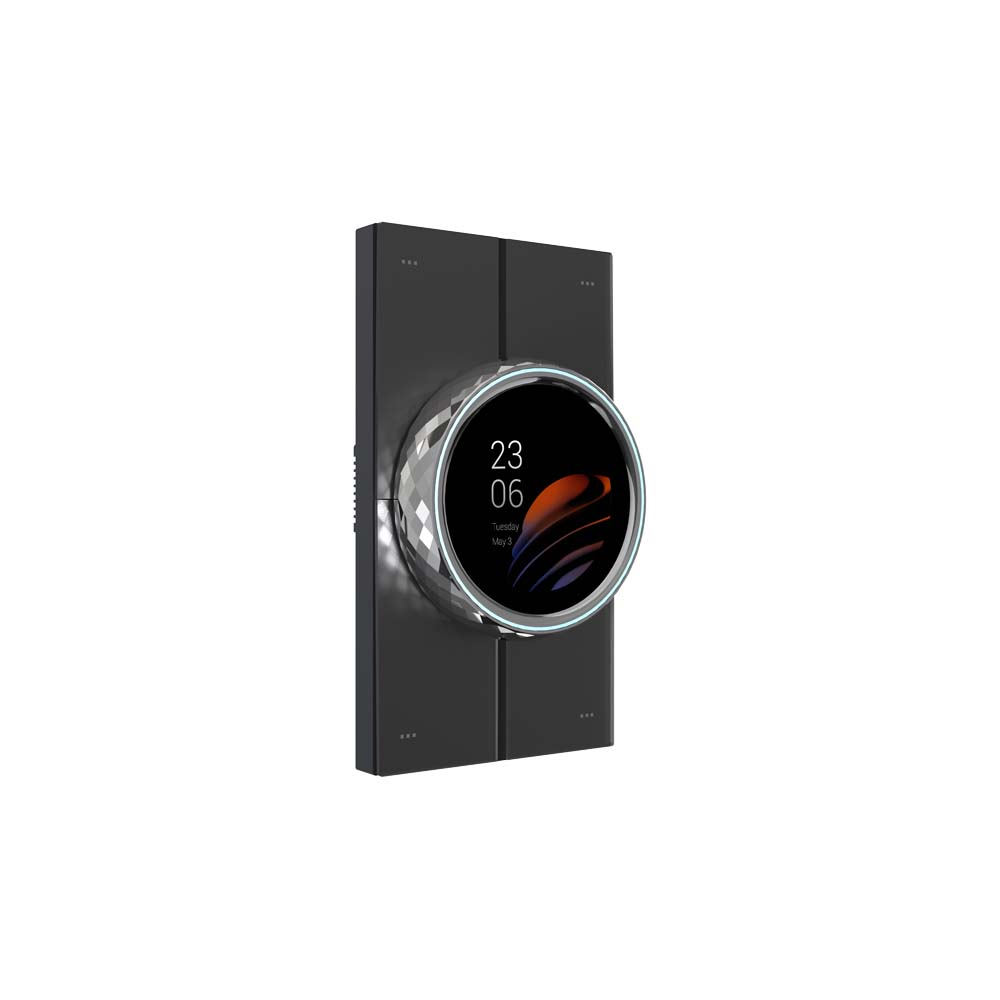

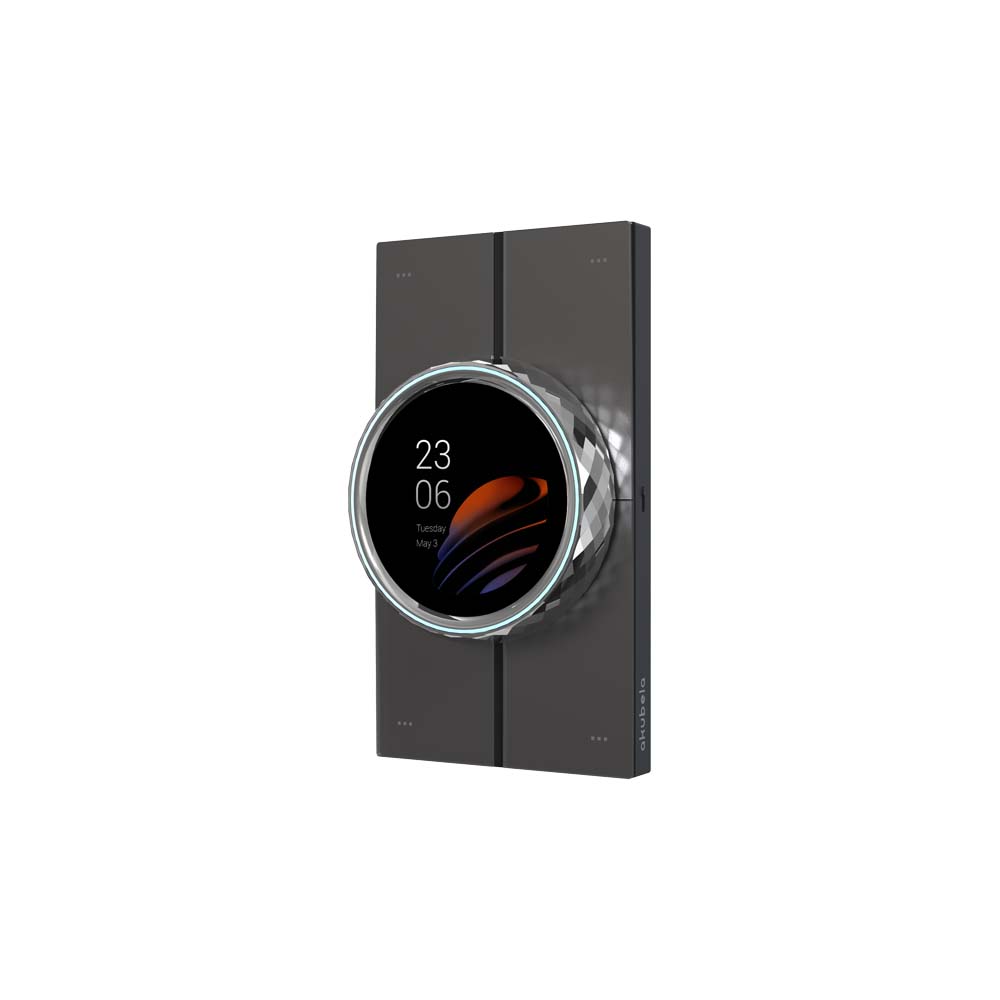

Akubela HyPanel Lux 230V – Silver

Akubela HyPanel screens integrate Akuvox Intercoms, Zigbee hub and integration with well-known platforms such as Nice/Fibaro in its own ecosystem. This Ecosystem can be managed remotely and is therefore extremely suitable to be offered by Installers who like to supply a complete product. The RT61 is a 2.1 inch control panel with 4 separate push buttons and a very luxurious rotating button with built-in RGB LED. The resolution of the screen is 480×480 pixels. Hypanel RT61 are equipped with Wi-Fi 2.4 and 5 Ghz, Bluetooth 4.2 and Zigbee 3.0 and an infrared blaster for connecting to the rest of the Ecosystem. The RT61 are equipped with a proximity, light, temperature and humidity sensor. The RT61 is combined with various built-in parts. These have a built-in depth of approximately 36mm, so it is recommended to use 50mm deep flush-mounted boxes. The RT61 can be mounted horizontally or vertically.
RT61-R2-EU The R2 variant has an RJ45 input for direct LAN connection and can switch a total load of up to 1200 Watts via L1 and L2. 800Watt resistive or 400watt for LED lighting is the maximum load per port. Power supply of the RT61-R2-EU is via 230V.
Product properties

• Switch a maximum of 2 loads with a total of 1200 Watts. Or a maximum of 800 Watts per channel and a maximum of 400 Watts for LED lighting. When switching 2 LED loads, a maximum of 300 Watts per channel.
• 2.1 inch touch screen, 480×480 pixels
• 4 programmable buttons
• Luxury rotating selection knob
• Android 10
• Wifi 2.4 and 5 GHz
• Zigbee 3.0
• Suitable for standard flush-mounted box (40mm, 50mm recommended)
• Local control of Zigbee devices
• Intercom function
• Suitable for operating FIBARO devices and scenes.
