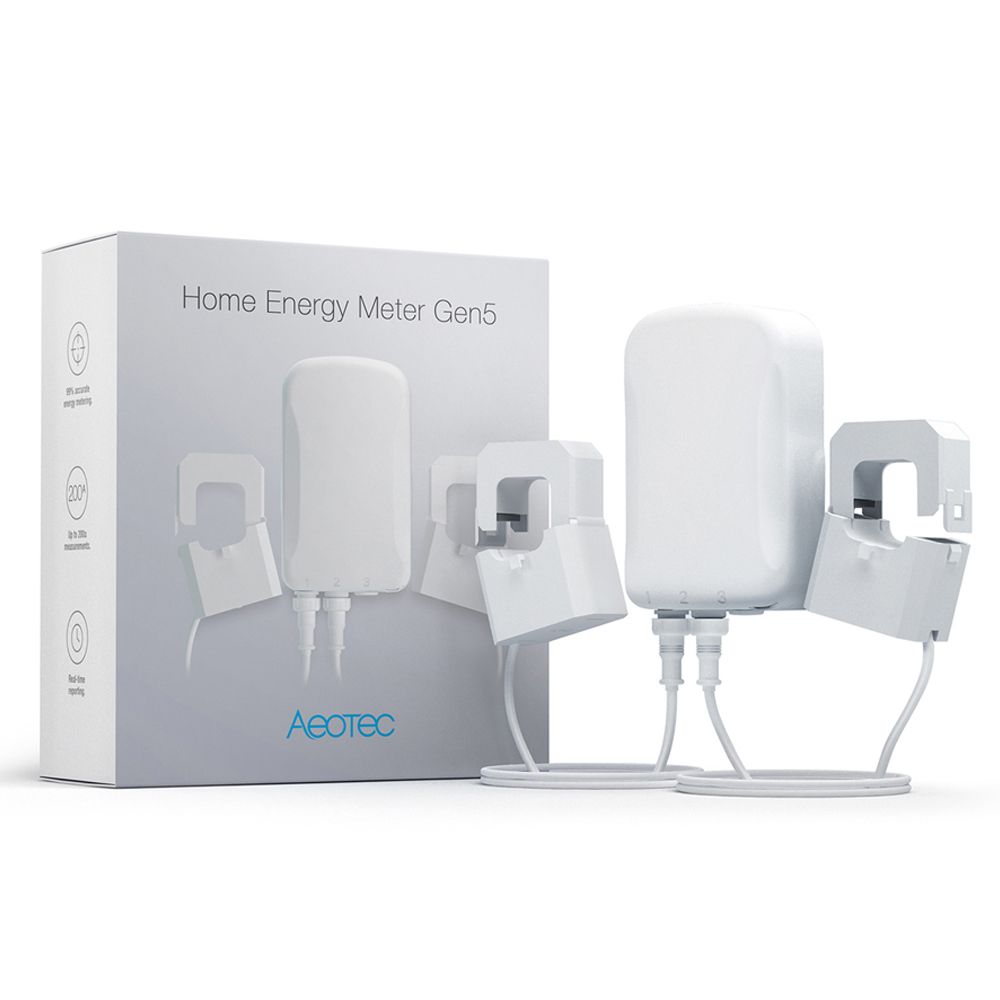

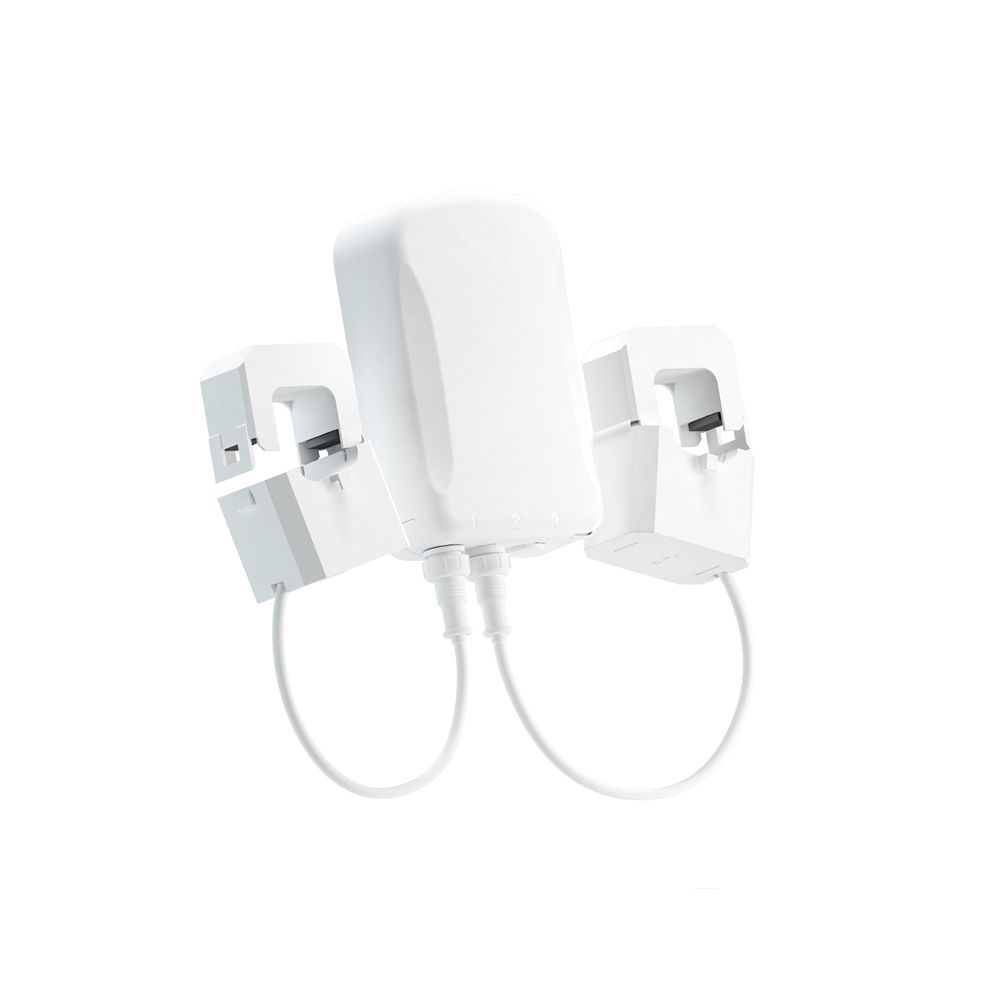

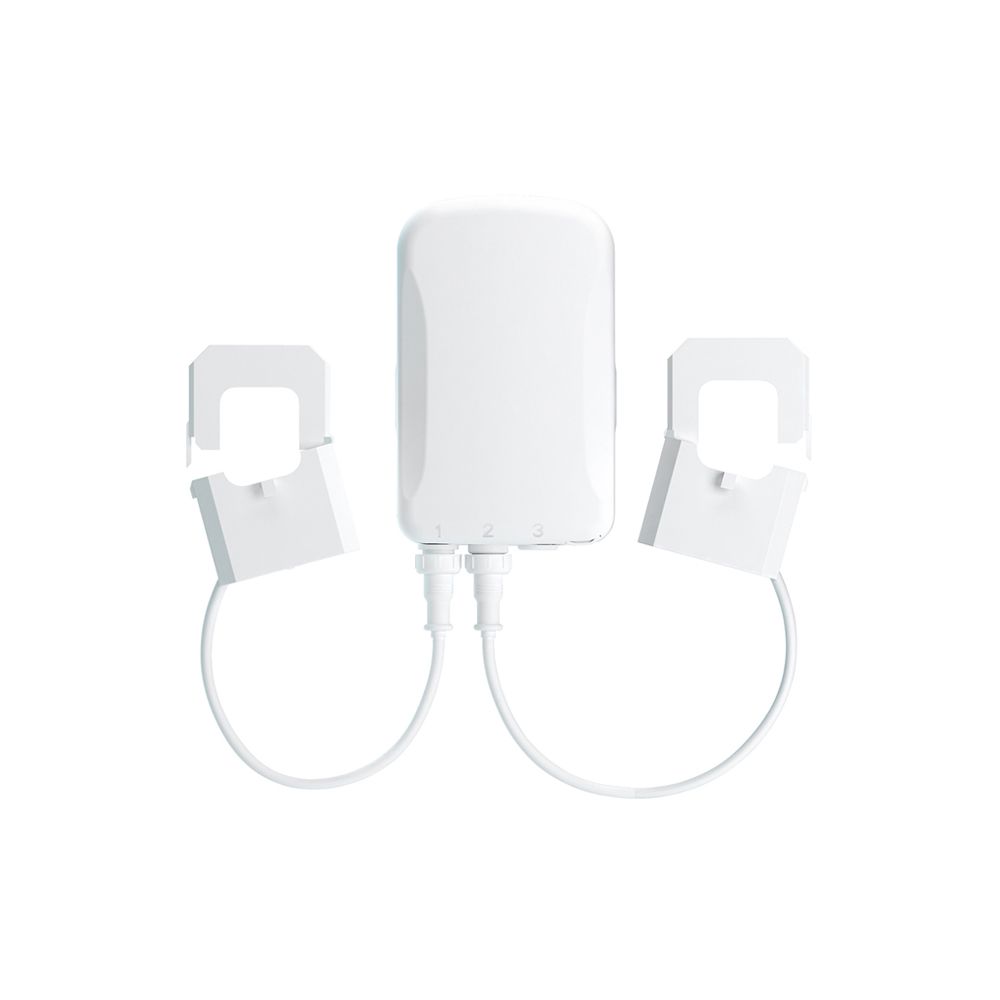

Aeotec Home Energy Meter 1 Phase 60A (CPM1A60) Gen5
Aeotec Home Energy Meter 1 Phase 60A (CPM1A60) Gen5 - Image 2
Aeotec Home Energy Meter 1 Phase 60A (CPM1A60) Gen5 - Image 3

Aeotec Home Energy Meter 1 Phase 60A (CPM1A60) Gen5

€92.22

Intelligent energy meter up to 60A with Z-Wave

SKU: ZW095C1A60 Category: Brand:

Make energy consumption transparent with the Aeotec Home Energy Meter. The energy meter is installed at the fuse box and monitors the total energy consumption. Thanks to the intelligent terminals, the wattage and kilowatt hours are reported in real-time to the Z-Wave controller. The main unit has a rear mounting and needs to be powered separately. The unit has one clamp and reports W and kWh (up to 60A)
Features

  • Intelligent meter with one clamp.
  • Suitable for 1 phase meter up to 60A
  • Real-time insight into watts and kilowatt hours
  • Measuring range: 220V – 260V and 0 – 60A
  • IP43 rating
Communicatie & Protocol

Z-Wave
Inputs

230V~, 50Hz, 10mA (EU version, 1P/3P4)
Measurable current range

0A – 60A
Measurable voltage range

180V~ to 260V~ (EU version, 1P)
Measurement accuracy

99% if current is higher dan 0.05A
Operating humidity

8% – 80%
Operating temperature

0-40°C
Other comments

The size of the clamps is different for each HEM variant. 200A – Diameter 24.3mm, 100A – Diameter 16mm, 60A – Diameter 10mm cable
Protocol

Z-Wave Plus
