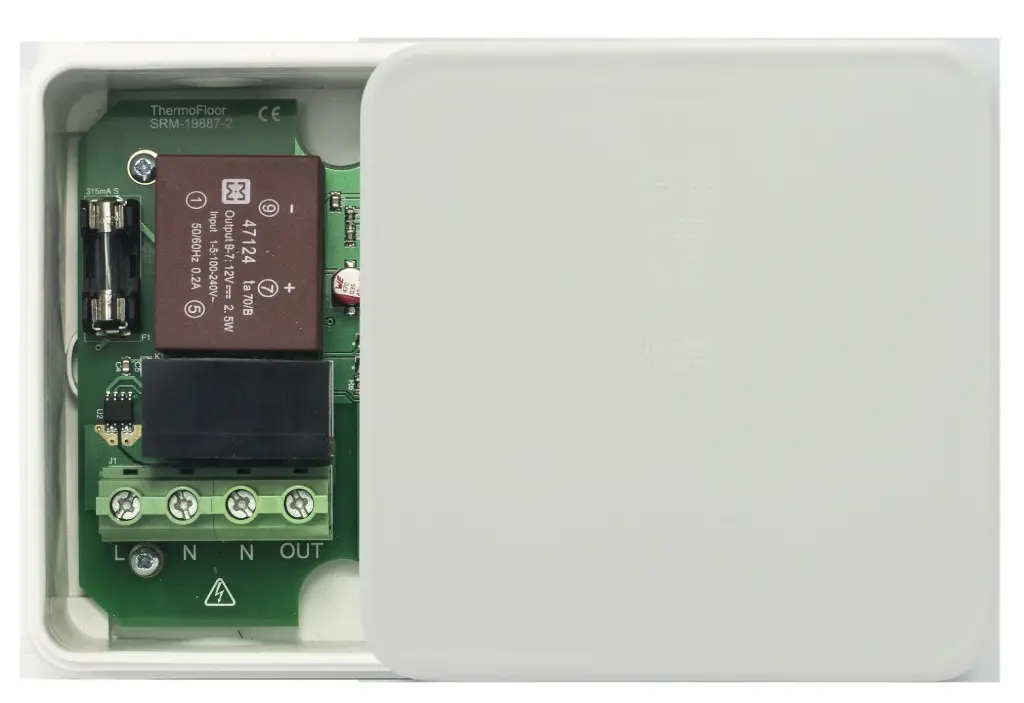

Heatit Z-Relay 25A

Heatit Z-Relay multipurpose relay module can be used for many different applications. The IP 55 rated casing makes it useful for any outdoor application. Can pull loads up to 25A. It has three inputs: analog or digital. You can use both analog and digital inputs, or a combination. Heatit Z-Relay is a multipurpose product and can be used for the following applications: Boiler control, Leakage control, Temperature control, Outdoor applications. The relay has 3 analog/digital inputs and can be used with a lot of different sensors and meters such as NTC temperature sensors. FeaturesMultipurpose product for many different applications3 inputsCombinations of analog/digital inputs of your choiceExternal antenna optionCan be used in connection with different NTC-sensorsCalibrationAssociationsFirmware updates (OTA)Power meteringMultilevel sensor command classS2 SecurityTechnical DataProtocol Z-Wave PlusRated voltage: 230V 50/60HzMax load: 3600W/5750W (resistive load), 750W self-limiting heating cableMax current 25APower consumption: lt;2,0WMin/max installation temp: -20°C – 40°CMin/max operating temp: -20°C – 40°CHysteresis: 0,3°C – 3,0°C (default 0,5°C)Compatible with NTC sensors with values: 10, 12, 15, 22, 33 and 47 kΩ @ 25°CRange: Up to 50 meters (depending on surroundings)IP Class: IP 55
